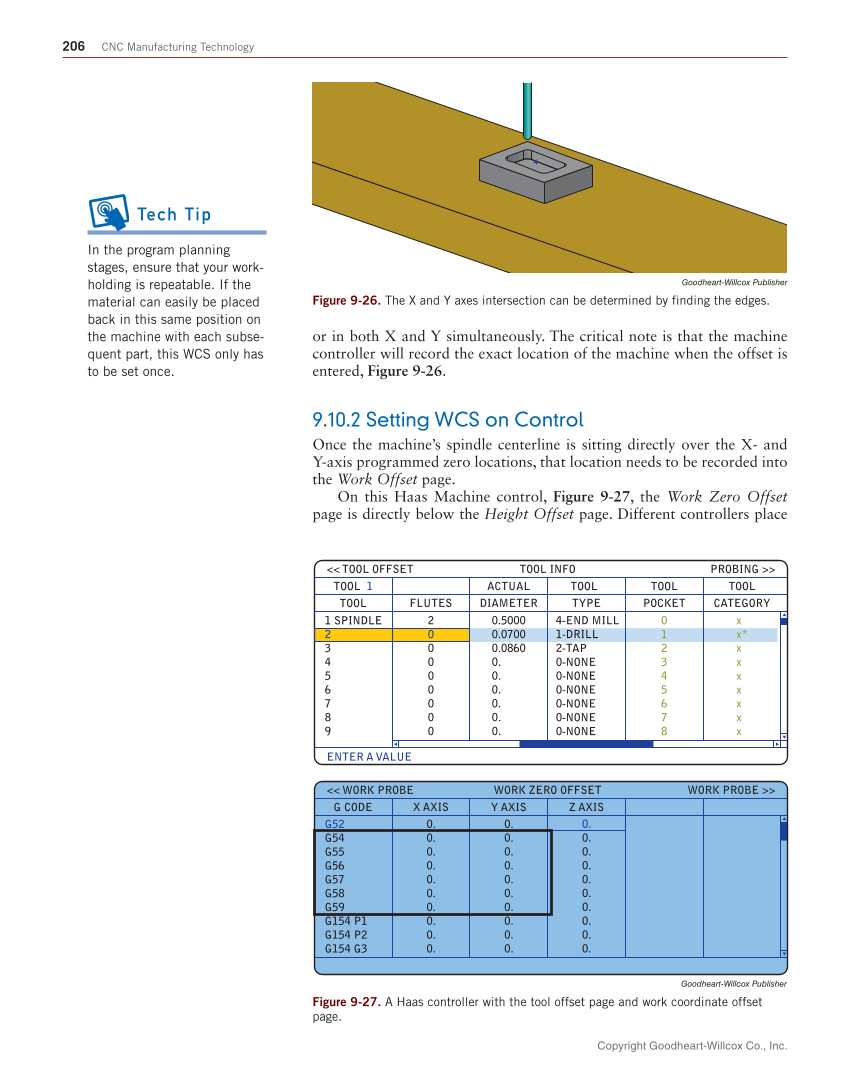

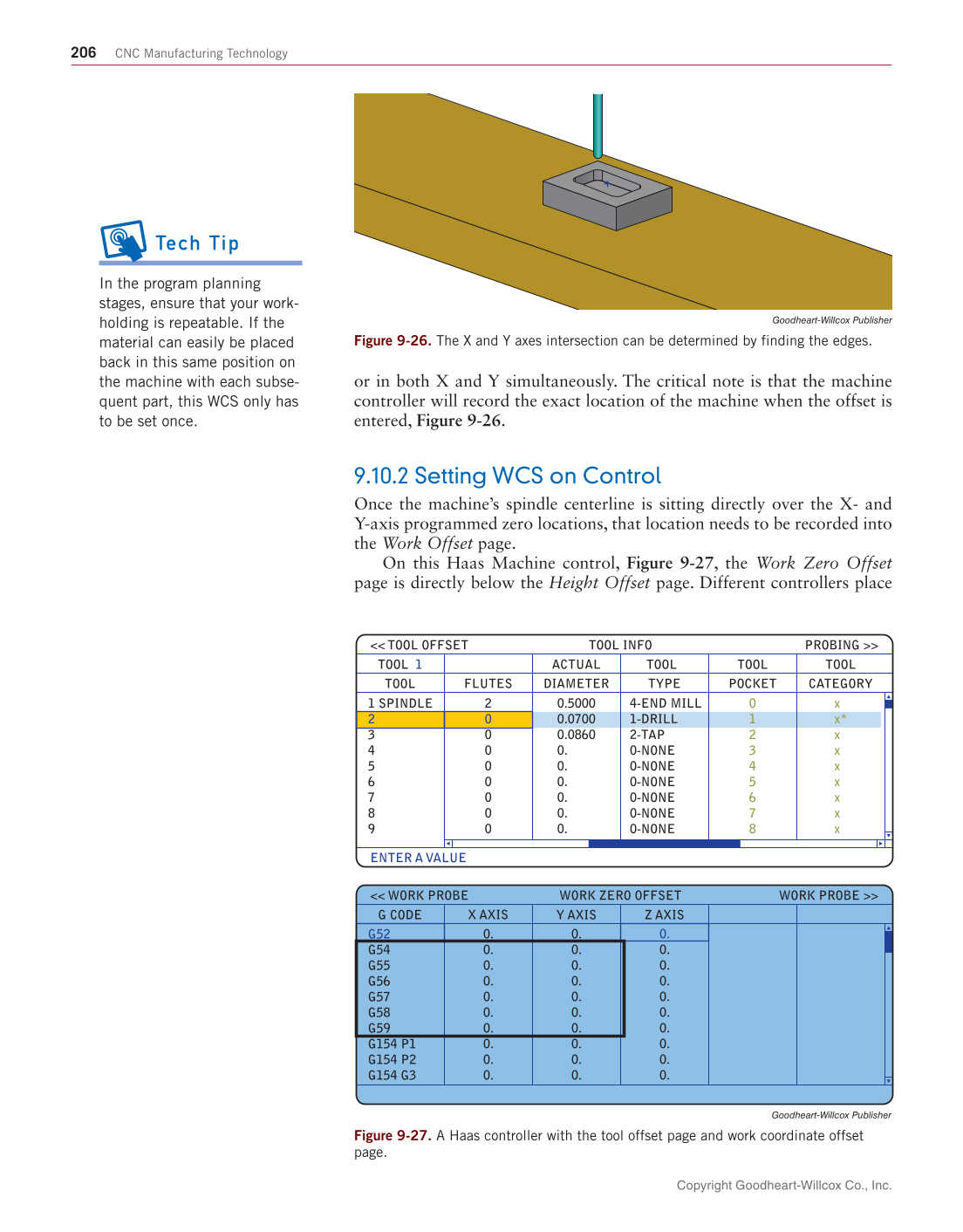

Copyright Goodheart-Willcox Co., Inc. 206 CNC Manufacturing Technology or in both X and Y simultaneously. The critical note is that the machine controller will record the exact location of the machine when the offset is entered, Figure 9-26. 9.10.2 Setting WCS on Control Once the machine’s spindle centerline is sitting directly over the X- and Y-axis programmed zero locations, that location needs to be recorded into the Work Offset page. On this Haas Machine control, Figure 9-27, the Work Zero Offset page is directly below the Height Offset page. Different controllers place Tech Tip In the program planning stages, ensure that your work- holding is repeatable. If the material can easily be placed back in this same position on the machine with each subse- quent part, this WCS only has to be set once. Goodheart-Willcox Publisher Figure 9-26. The X and Y axes intersection can be determined by finding the edges. Goodheart-Willcox Publisher Figure 9-27. A Haas controller with the tool offset page and work coordinate offset page. WORK PROBE G CODE G52 G54 G55 G56 G57 G58 G59 G154 P1 G154 P2 G154 G3 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. X AXIS Y AXIS Z AXIS WORK ZERO OFFSET WORK PROBE TOOL OFFSET ENTER A VALUE TOOL 1 TOOL 1 SPINDLE 2 3 4 5 6 7 8 9 2 0 0 0 0 0 0 0 0 0.5000 0.0700 0.0860 0. 0. 0. 0. 0. 0. 4-END MILL 1-DRILL 2-TAP 0-NONE 0-NONE 0-NONE 0-NONE 0-NONE 0-NONE 0 1 2 3 4 5 6 7 8 x x* x x x x x x x FLUTES DIAMETER TYPE POCKET CATEGORY ACTUAL TOOL TOOL TOOL TOOL INFO PROBING
