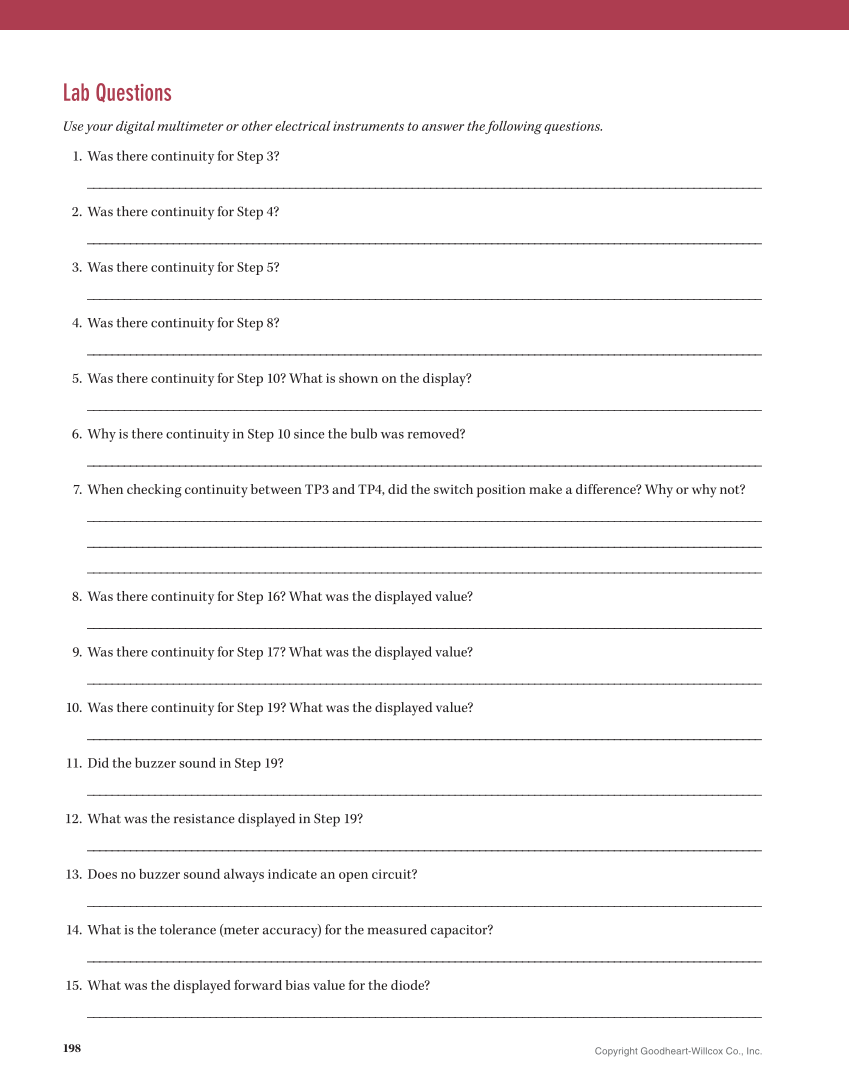

198 Copyright Goodheart-Willcox Co., Inc. Lab Questions Use your digital multimeter or other electrical instruments to answer the following questions. 1. Was there continuity for Step 3? ______________________________________________________________________________________________________________ 2. Was there continuity for Step 4? ______________________________________________________________________________________________________________ 3. Was there continuity for Step 5? ______________________________________________________________________________________________________________ 4. Was there continuity for Step 8? ______________________________________________________________________________________________________________ 5. Was there continuity for Step 10? What is shown on the display? ______________________________________________________________________________________________________________ 6. Why is there continuity in Step 10 since the bulb was removed? ______________________________________________________________________________________________________________ 7. When checking continuity between TP3 and TP4, did the switch position make a difference? Why or why not? ______________________________________________________________________________________________________________ ______________________________________________________________________________________________________________ ______________________________________________________________________________________________________________ 8. Was there continuity for Step 16? What was the displayed value? ______________________________________________________________________________________________________________ 9. Was there continuity for Step 17? What was the displayed value? ______________________________________________________________________________________________________________ 10. Was there continuity for Step 19? What was the displayed value? ______________________________________________________________________________________________________________ 11. Did the buzzer sound in Step 19? ______________________________________________________________________________________________________________ 12. What was the resistance displayed in Step 19? ______________________________________________________________________________________________________________ 13. Does no buzzer sound always indicate an open circuit? ______________________________________________________________________________________________________________ 14. What is the tolerance (meter accuracy) for the measured capacitor? ______________________________________________________________________________________________________________ 15. What was the displayed forward bias value for the diode? ______________________________________________________________________________________________________________
