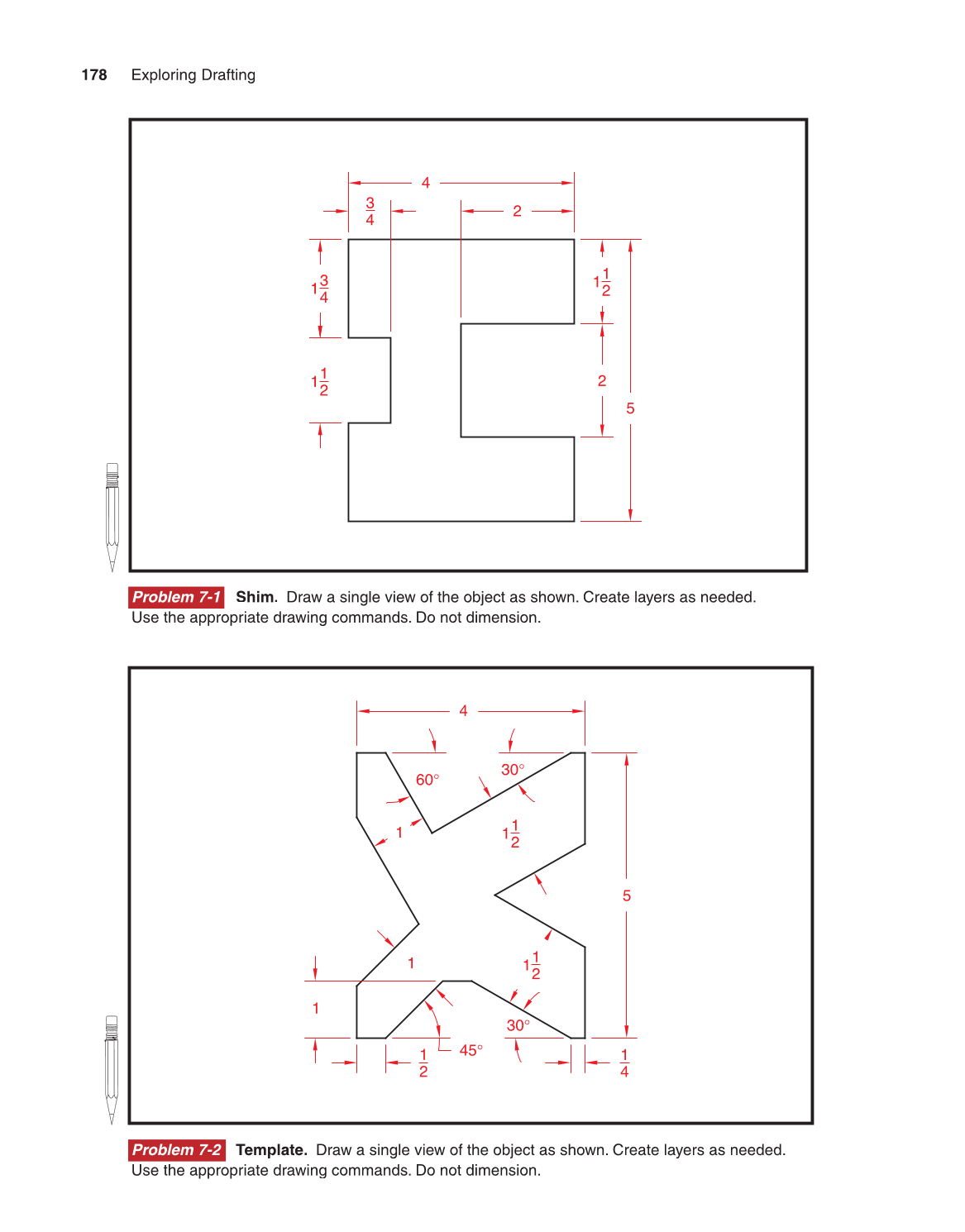

Problem 7-1 Shim. Draw a single view of the object as shown. Create layers as needed.
Use the appropriate drawing commands. Do not dimension.
1
1
2
1
2
11
1
4
5
1
12
1
4
60°
30°
30°
45°

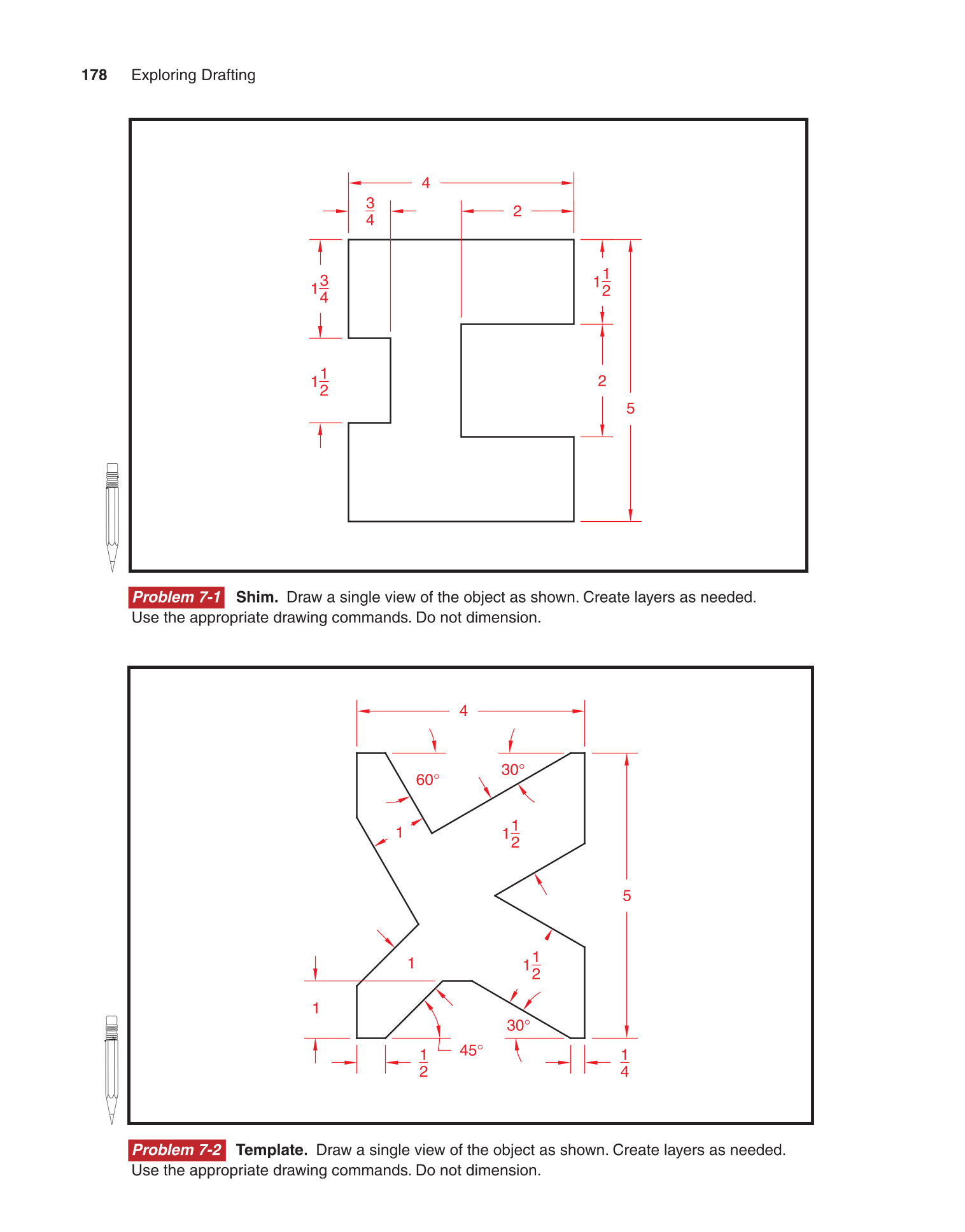

Problem 7-2 Template. Draw a single view of the object as shown. Create layers as needed.
Use the appropriate drawing commands. Do not dimension.
