Chapter 7 Computer-Aided Drafting and Design 179
4
2
∅2
4X
∅1
2
2
21
5
4X R2
1

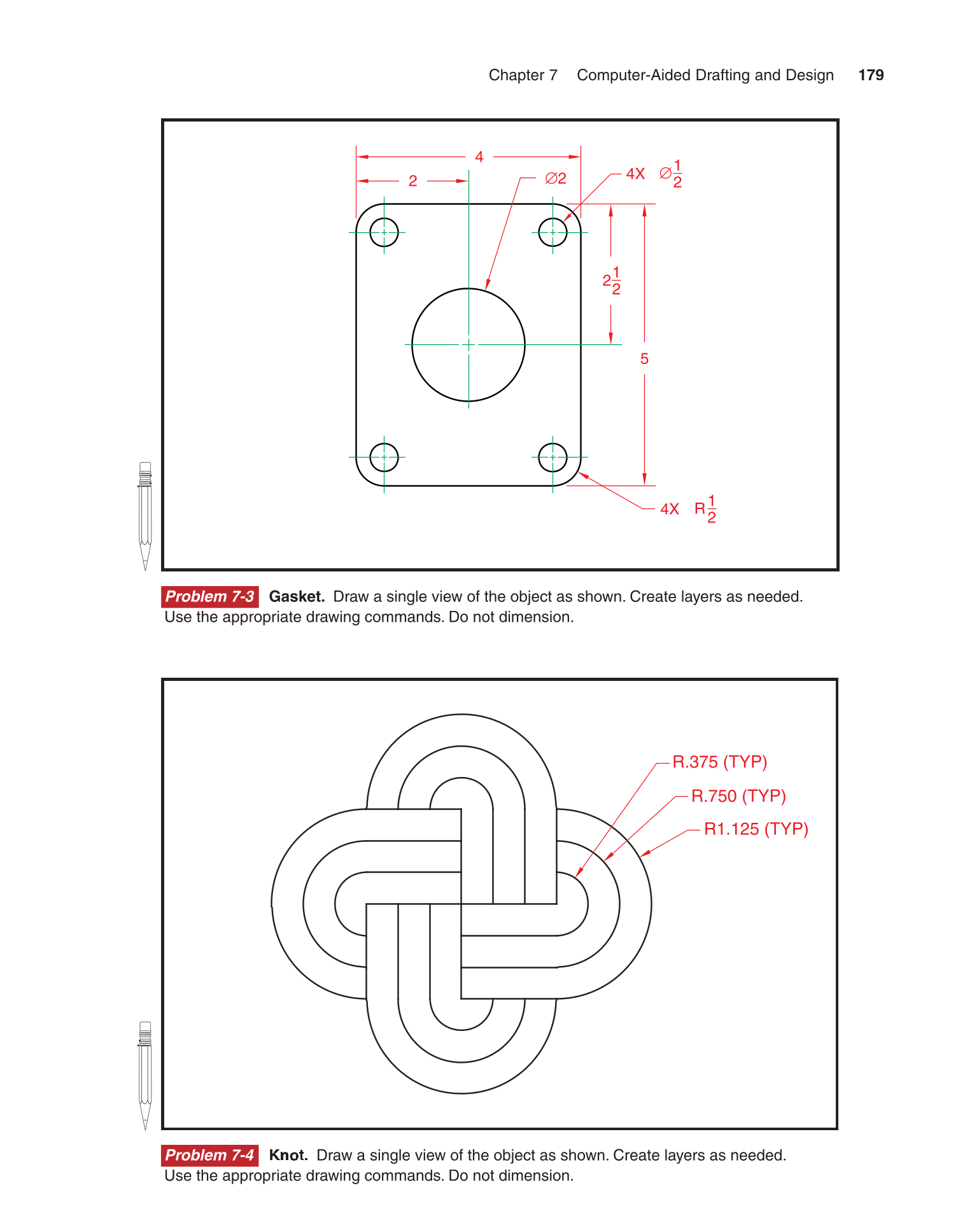

Problem 7-3 Gasket. Draw a single view of the object as shown. Create layers as needed.
Use the appropriate drawing commands. Do not dimension.
R.375 (TYP)
R.750 (TYP)
R1.125 (TYP)
Problem 7-4 Draw a single view of the object as shown. Create layers as needed.
Use the appropriate drawing commands. Do not dimension.
