Chapter 7 Computer-Aided Drafting and Design 185
ALL FILLETS AND ROUNDS R.125 UNLESS OTHERWISE NOTED
45°
45°
.438
2.000
1.750
1.250
14X ∅.250
.250
(TYP)
2.000
1.250
2.250
R.500
(TYP)
R.250 (TYP)
8X R.250

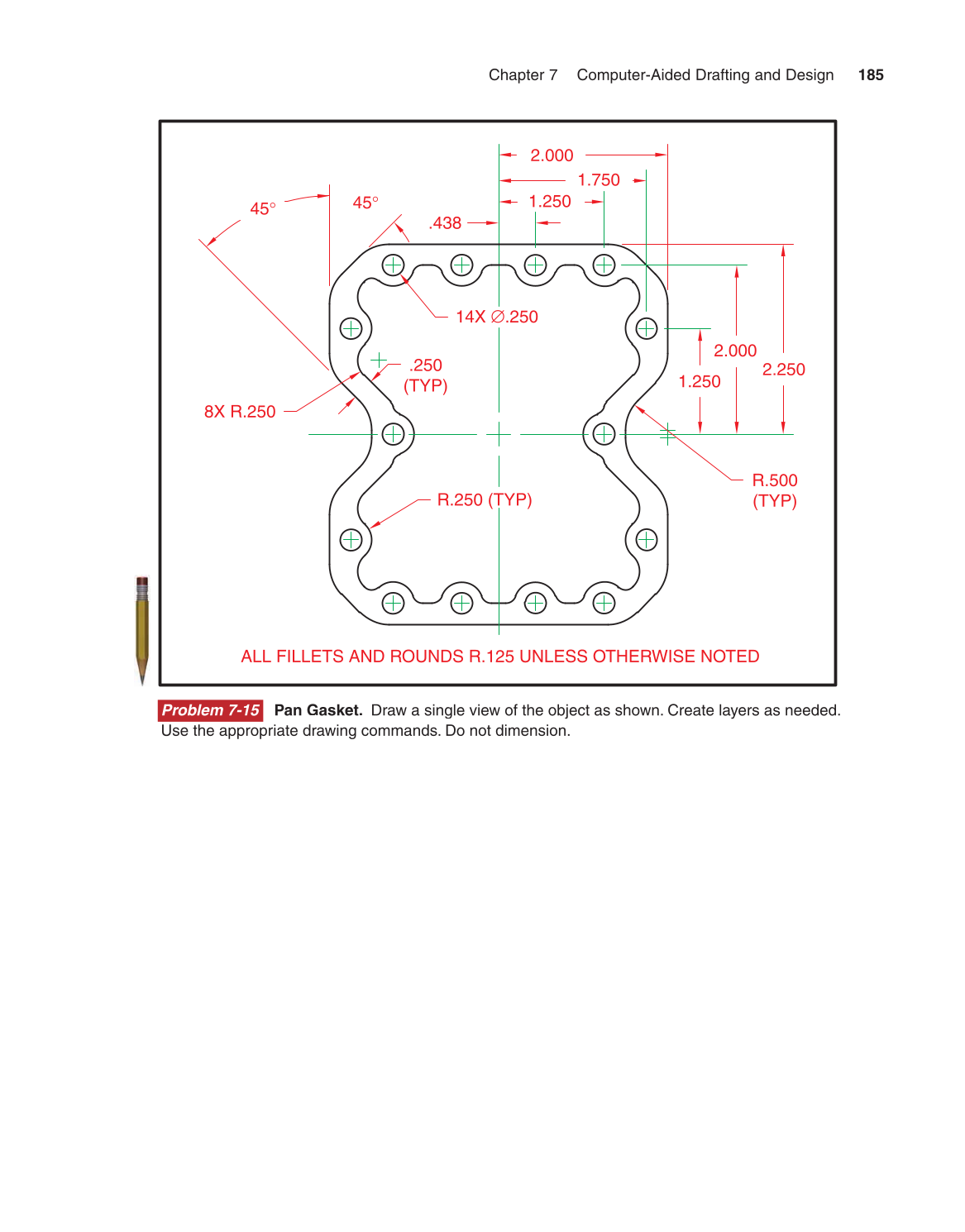

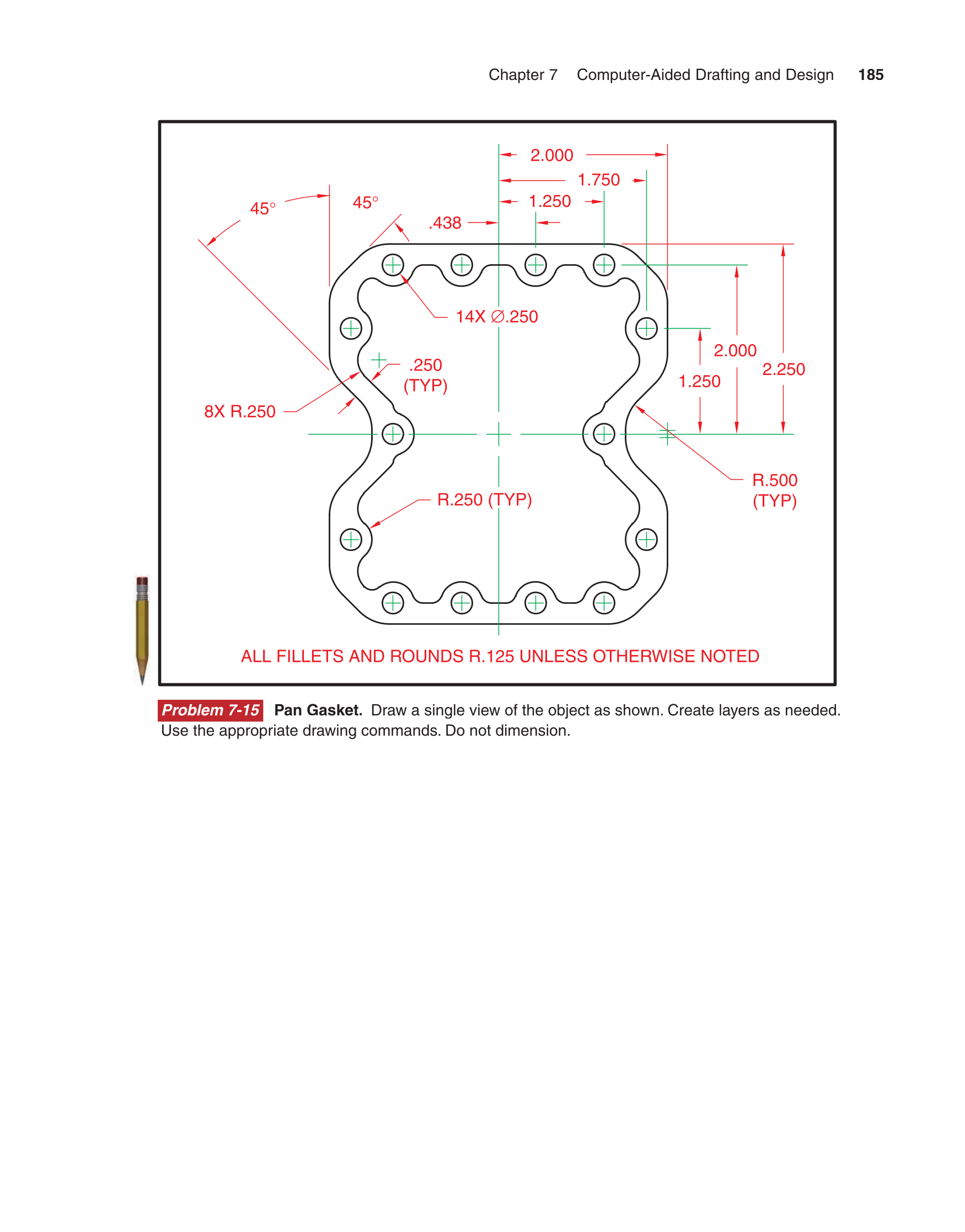

Problem 7-15 Pan Gasket. Draw a single view of the object as shown. Create layers as needed.
Use the appropriate drawing commands. Do not dimension.
