Exploring Drafting
Drawing Problems Drawing Problems
10X 2
∅8

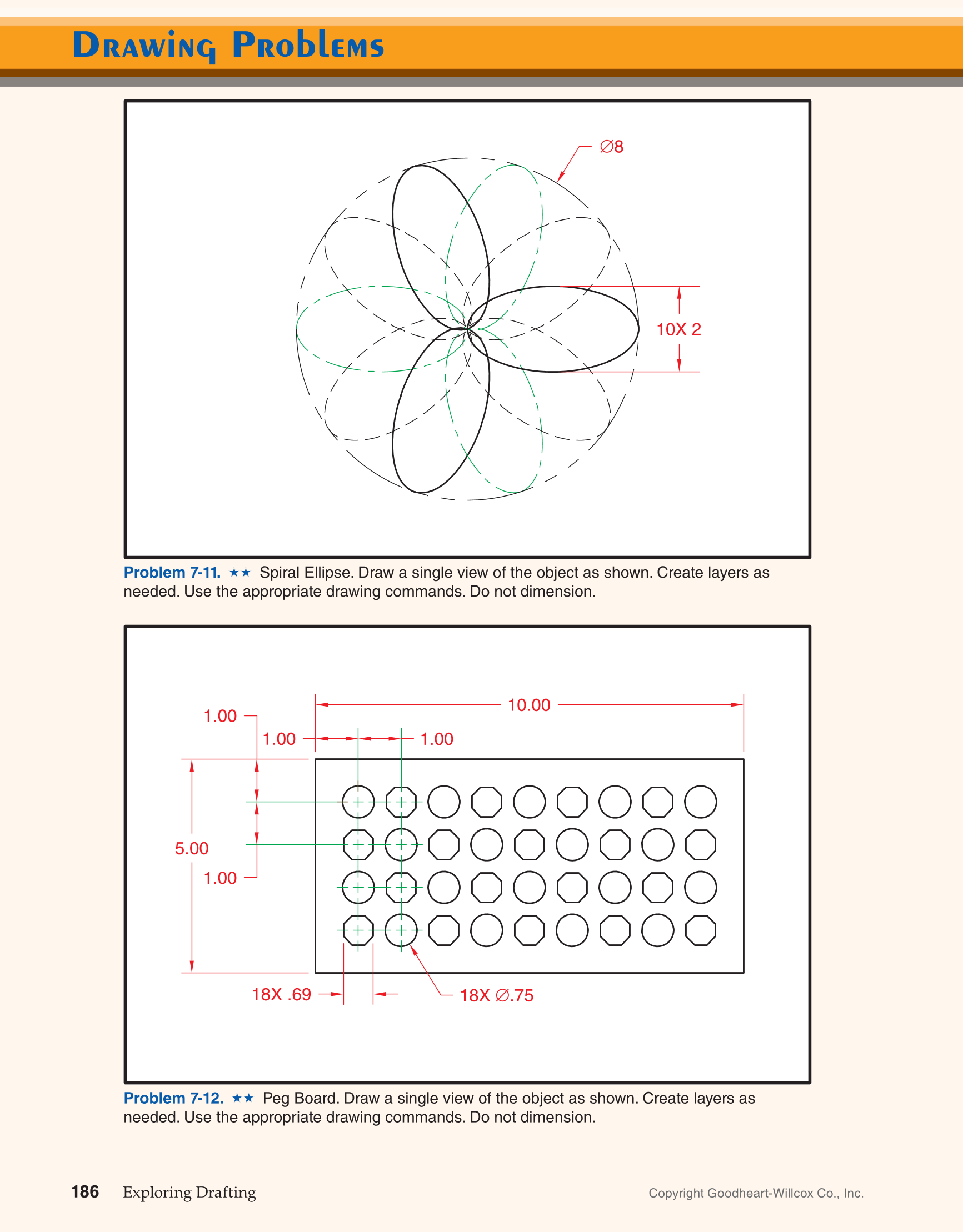

Problem 7-11. Spiral Ellipse. Draw a single view of the object as shown. Create layers as
needed. Use the appropriate drawing commands. Do not dimension.
1.00
1.00
1.00 1.00
5.00
10.00
18X .69
18X ∅.75
Problem 7-12. Peg Board. Draw a single view of the object as shown. Create layers as
needed. Use the appropriate drawing commands. Do not dimension.
