Chapter 7 Computer-Aided Drafting and Design
187
4.000
1.250
7.000
4.625
2.750
2X ∅.563

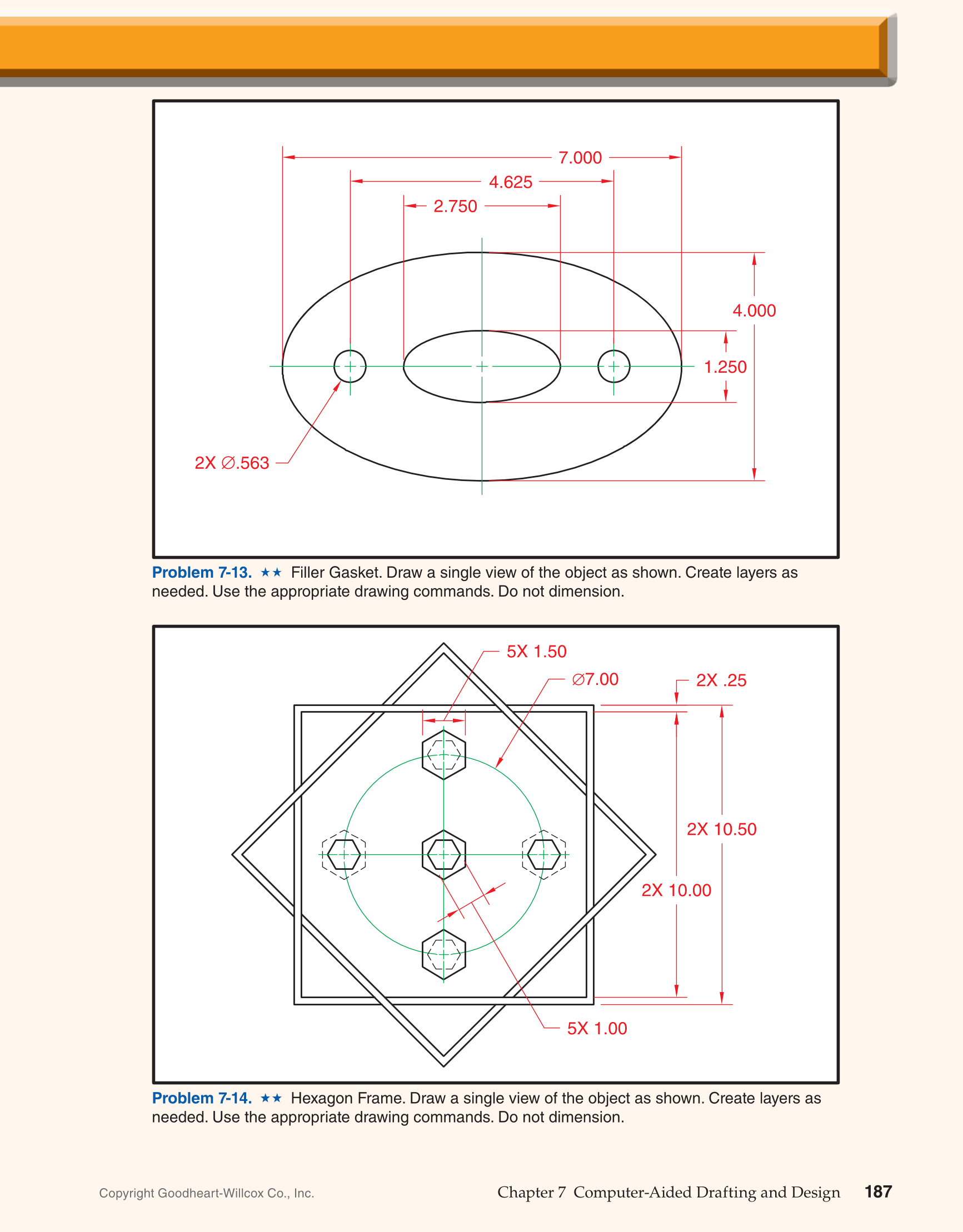

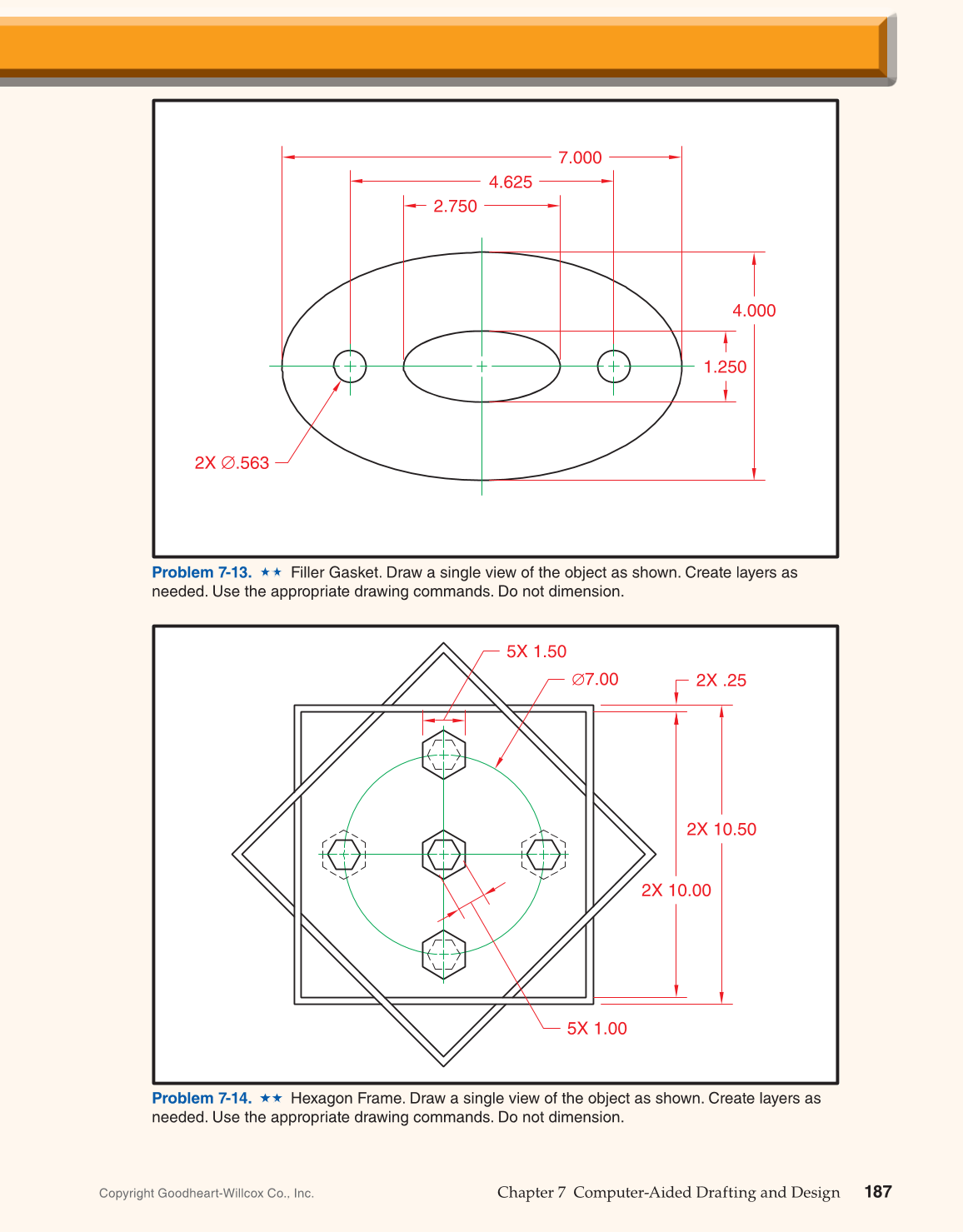

Problem 7-13. Filler Gasket. Draw a single view of the object as shown. Create layers as
needed. Use the appropriate drawing commands. Do not dimension.
2X 10.00
2X .25
2X 10.50
5X 1.50
∅7.00
5X 1.00
Problem 7-14. Hexagon Frame. Draw a single view of the object as shown. Create layers as
needed. Use the appropriate drawing commands. Do not dimension.
Copyright Goodheart-Willcox Co., Inc.
