188
Exploring Drafting
Drawing Problems Drawing Problems

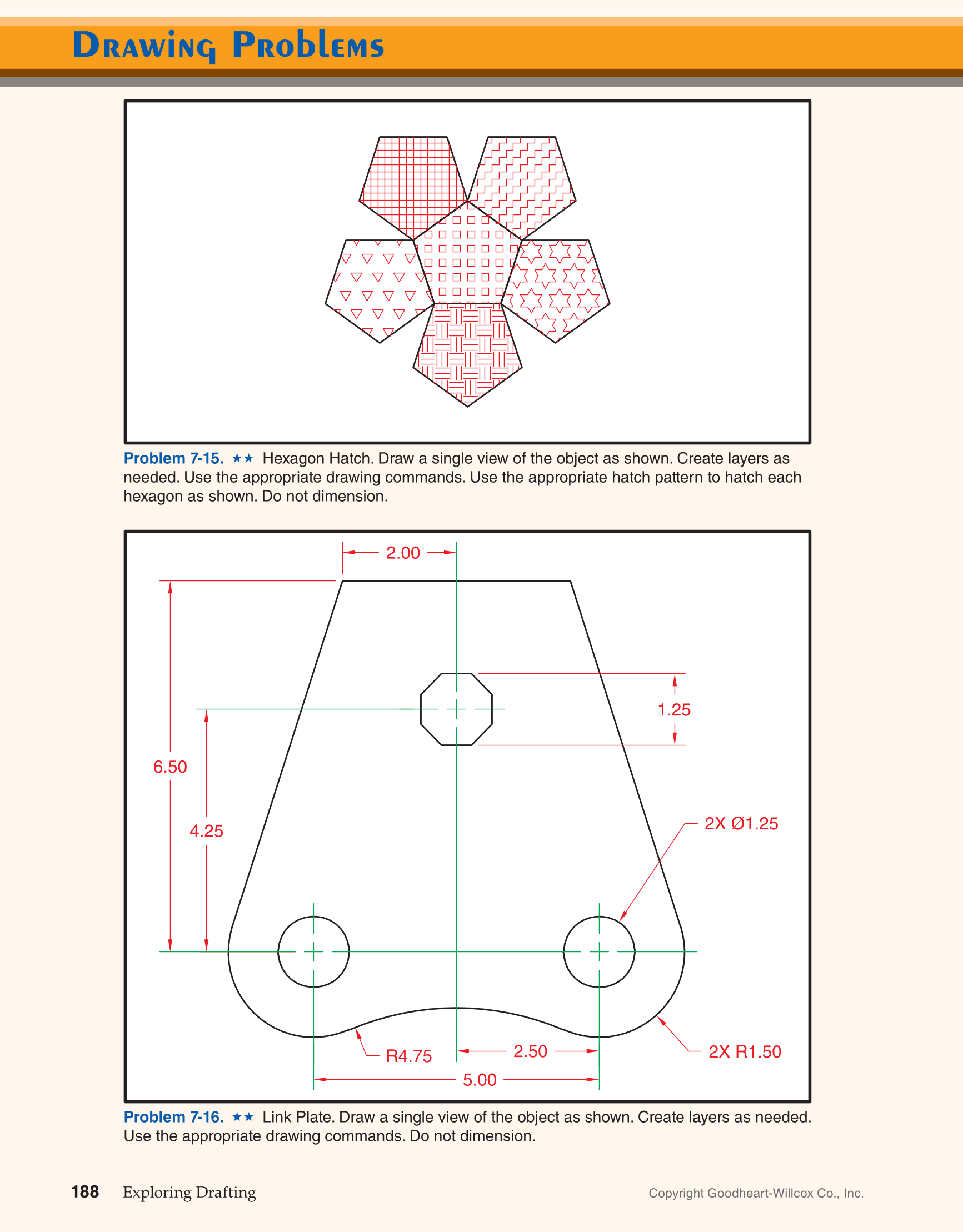

Problem 7-15. Hexagon Hatch. Draw a single view of the object as shown. Create layers as
needed. Use the appropriate drawing commands. Use the appropriate hatch pattern to hatch each
hexagon as shown. Do not dimension.
6.50
R4.75
4.25
1.25
2.00
5.00
2.50
2X R1.50
2X Ø1.25
Problem 7-16. Link Plate. Draw a single view of the object as shown. Create layers as needed.
Use the appropriate drawing commands. Do not dimension.
Copyright Goodheart-Willcox Co., Inc.
