Drawing Problems Drawing Problems
ALL FILLETS R.125
2.250
1.000
.500
.750
.625
1.125 .875
R2.031
1.500 1.625
1.813 1.125 .375
.438
.063
R2.031
R2.250
R1.375
4.750

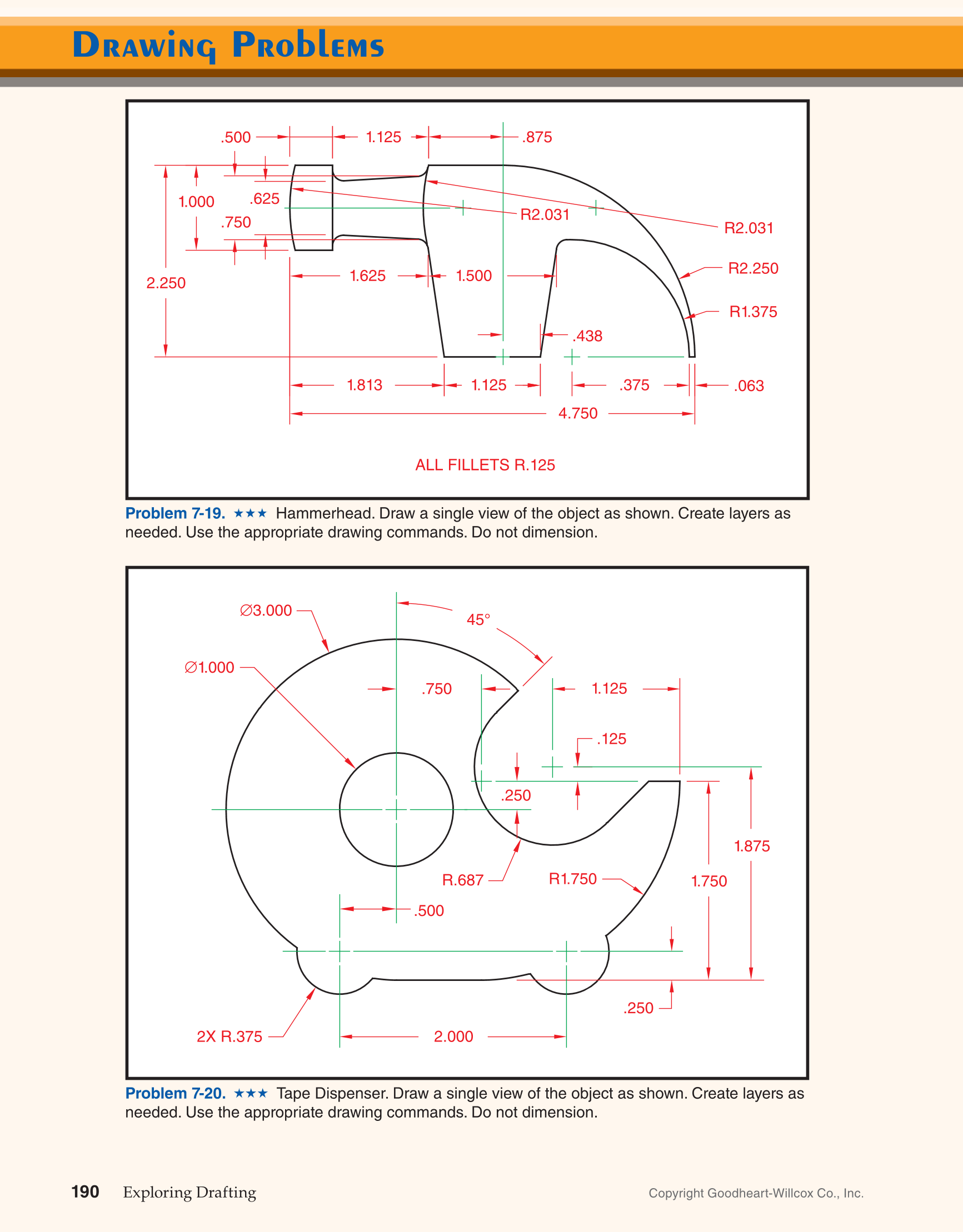

Problem 7-19. Hammerhead. Draw a single view of the object as shown. Create layers as
needed. Use the appropriate drawing commands. Do not dimension.
45°
∅3.000
∅1.000
.750
1.125
.125
.250
R1.750
R.687
.500
1.875
1.750
.250
2.000 2X R.375
Problem 7-20. Tape Dispenser. Draw a single view of the object as shown. Create layers as
needed. Use the appropriate drawing commands. Do not dimension.
