Chapter 7 Computer-Aided Drafting and Design
191

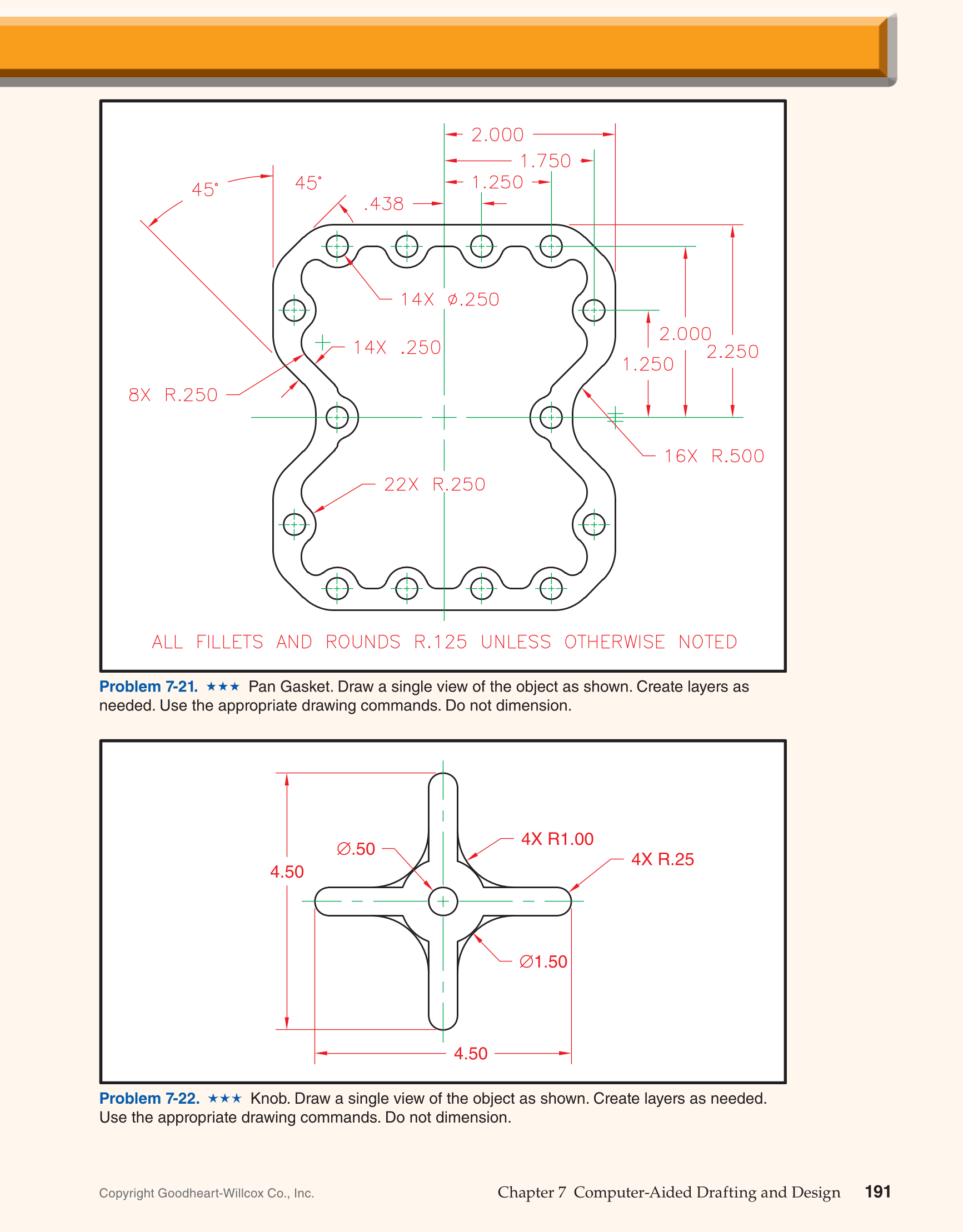

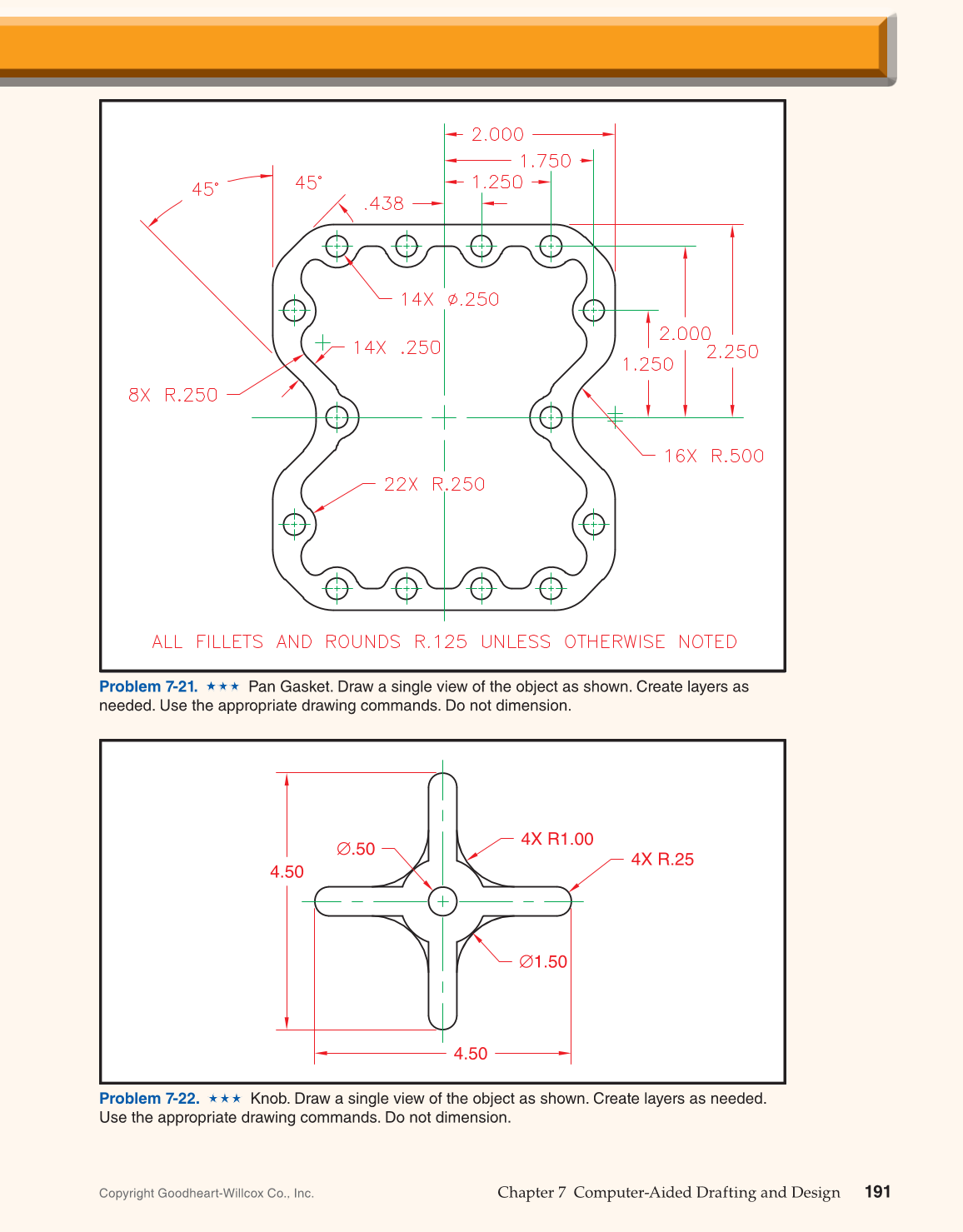

Problem 7-21. Pan Gasket. Draw a single view of the object as shown. Create layers as
needed. Use the appropriate drawing commands. Do not dimension.
4X R.25
4X R1.00
∅1.50
∅.50
4.50
4.50
Problem 7-22. Knob. Draw a single view of the object as shown. Create layers as needed.
Use the appropriate drawing commands. Do not dimension.
Copyright Goodheart-Willcox Co., Inc.
