Chapter 7 Computer-Aided Drafting and Design
193
Ø5.000
2.750
10X R.250
.375
5X .750
Ø4.000
32X R.125
15°
Ø3.000
45°
.375
8X .750

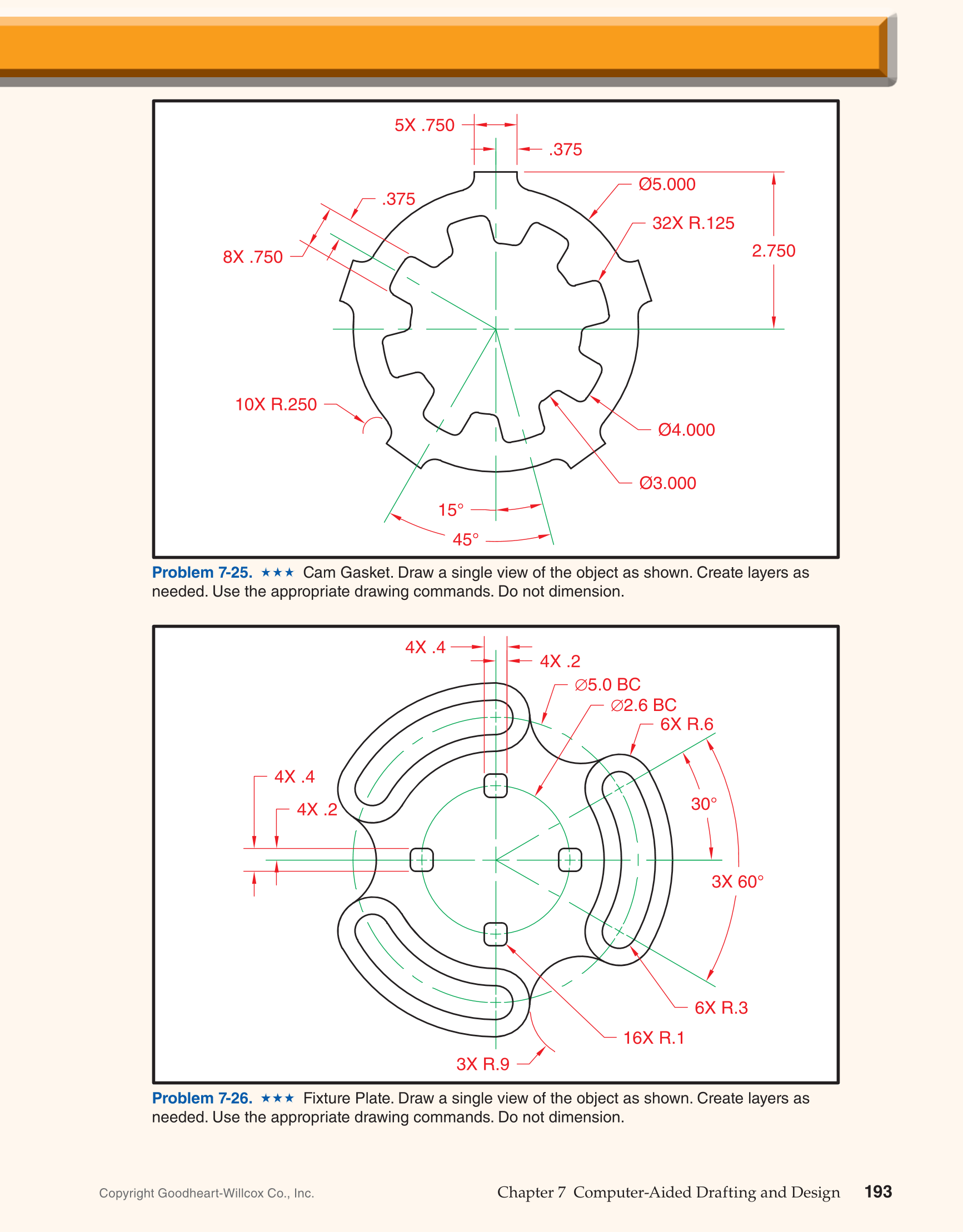

Problem 7-25. Cam Gasket. Draw a single view of the object as shown. Create layers as
needed. Use the appropriate drawing commands. Do not dimension.
3X R.9
6X R.6
∅5.0 BC
∅2.6 BC
6X R.3
4X .2
4X .4
4X .2
4X .4
30°
3X 60°
16X R.1
Problem 7-26. Fixture Plate. Draw a single view of the object as shown. Create layers as
needed. Use the appropriate drawing commands. Do not dimension.
