Drawing Problems Drawing Problems
12X ∅1.5
1.0
12X 30°
∅12.0
∅10.0

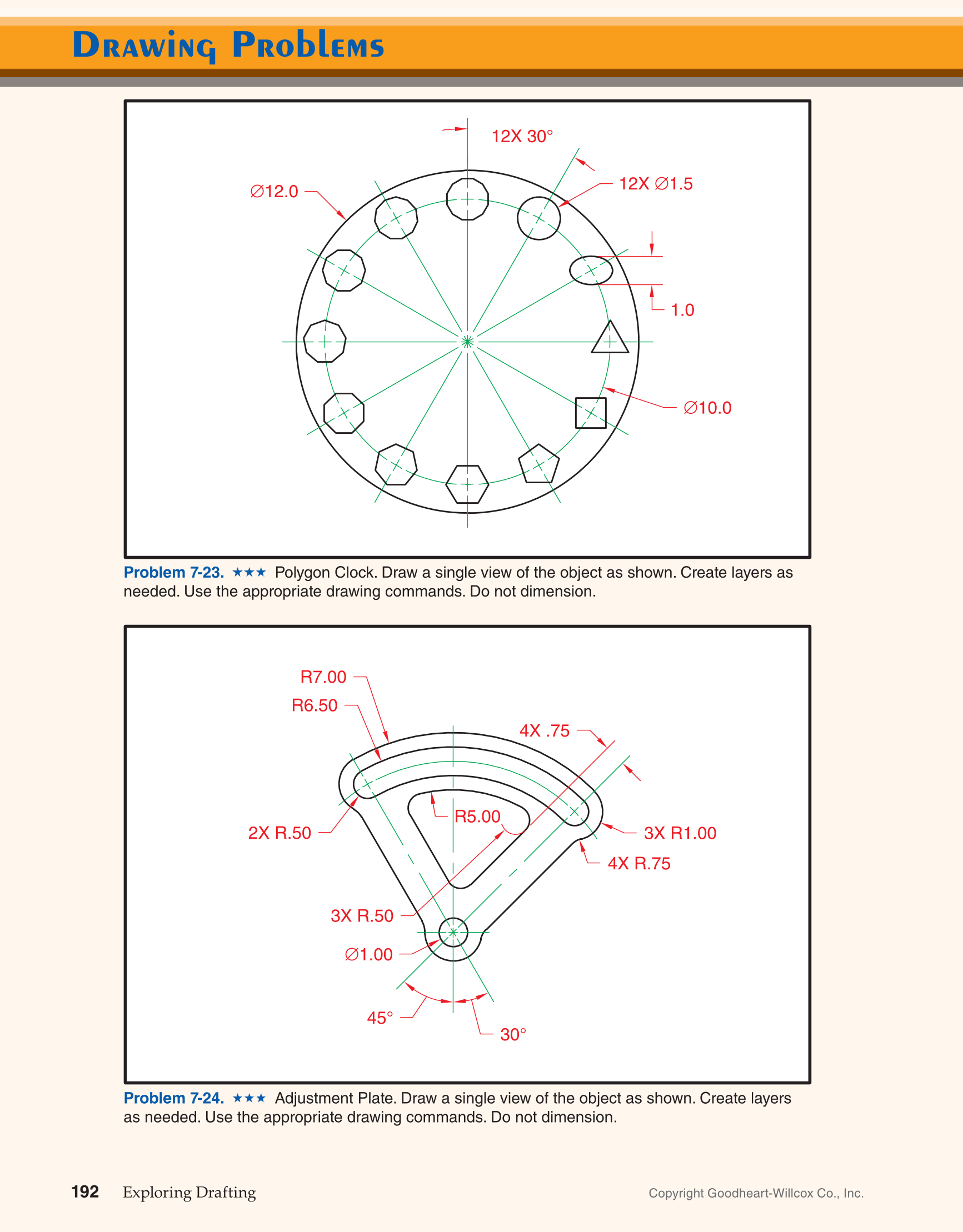

Problem 7-23. Polygon Clock. Draw a single view of the object as shown. Create layers as
needed. Use the appropriate drawing commands. Do not dimension.
3X R1.00
R6.50
2X R.50
R7.00
45°
30°
3X R.50
∅1.00
R5.00
4X .75
4X R.75
Problem 7-24. Adjustment Plate. Draw a single view of the object as shown. Create layers
as needed. Use the appropriate drawing commands. Do not dimension.
