Drawing Problems Drawing Problems
1" _
2
Squares
1. 2. 3.
4. 5. 6.
7. 8.

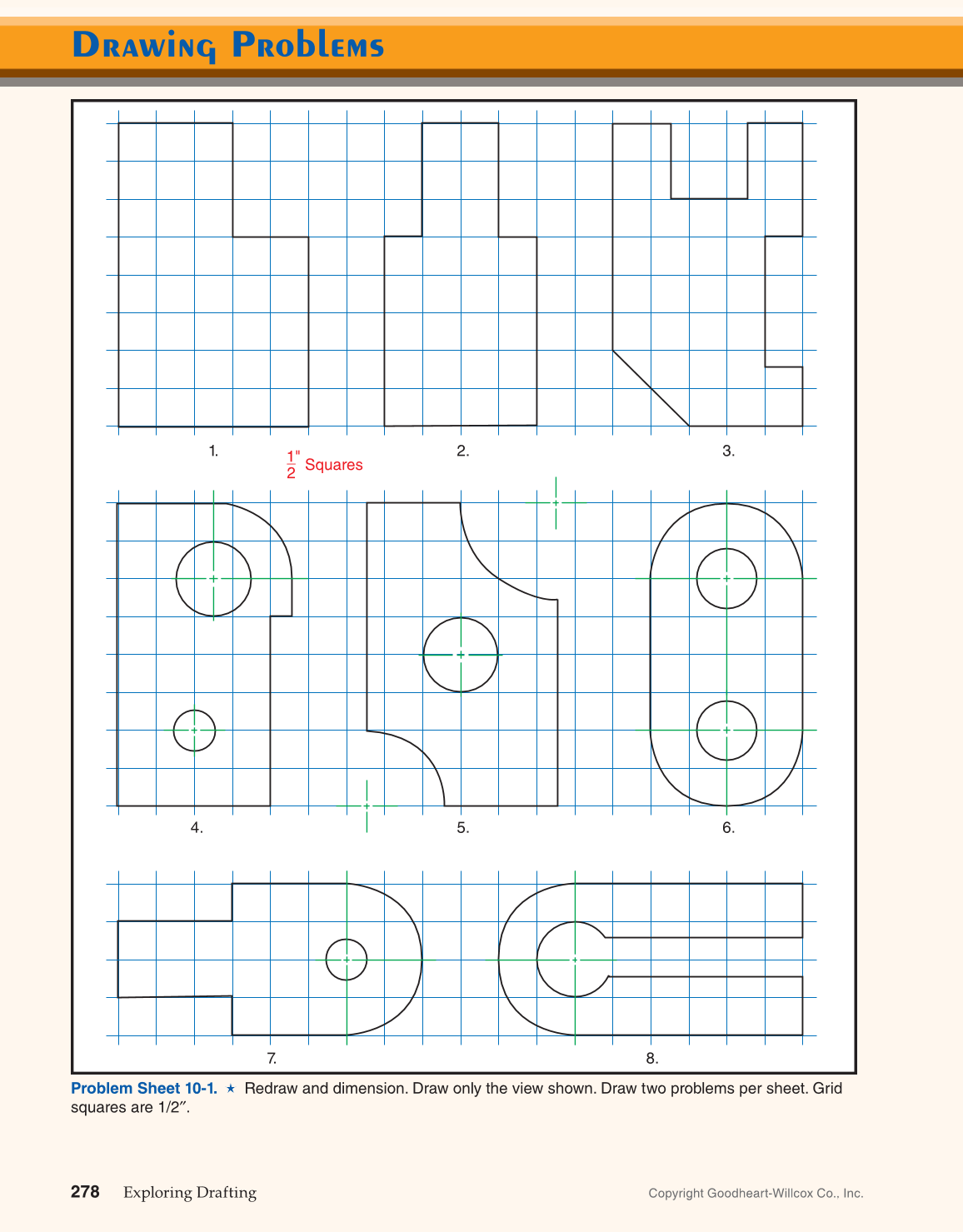

Problem Sheet 10-1. Redraw and dimension. Draw only the view shown. Draw two problems per sheet. Grid
squares are 1/2″.
