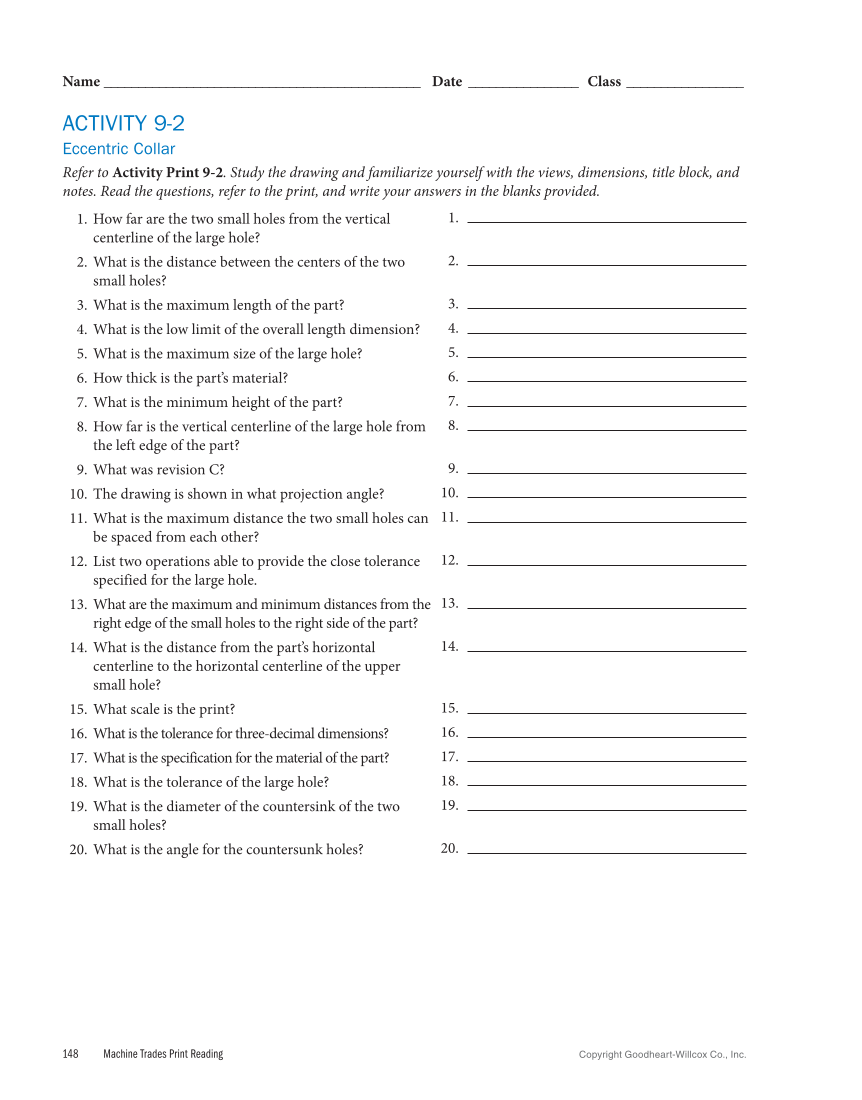

148 Machine Trades Print Reading Copyright Goodheart-Willcox Co., Inc. Name _______________________________________________ Date _ ________________ Class __________________ ACTIVITY 9-2 Eccentric Collar Refer to Activity Print 9‑2. Study the drawing and familiarize yourself with the views, dimensions, title block, and notes. Read the questions, refer to the print, and write your answers in the blanks provided. 1. How far are the two small holes from the vertical centerline of the large hole? 2. What is the distance between the centers of the two small holes? 3. What is the maximum length of the part? 4. What is the low limit of the overall length dimension? 5. What is the maximum size of the large hole? 6. How thick is the part’s material? 7. What is the minimum height of the part? 8. How far is the vertical centerline of the large hole from the left edge of the part? 9. What was revision C? 10. The drawing is shown in what projection angle? 11. What is the maximum distance the two small holes can be spaced from each other? 12. List two operations able to provide the close tolerance specified for the large hole. 13. What are the maximum and minimum distances from the right edge of the small holes to the right side of the part? 14. What is the distance from the part’s horizontal centerline to the horizontal centerline of the upper small hole? 15. What scale is the print? 16. What is the tolerance for three-decimal dimensions? 17. What is the specification for the material of the part? 18. What is the tolerance of the large hole? 19. What is the diameter of the countersink of the two small holes? 20. What is the angle for the countersunk holes? 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. 16. 17. 18. 19. 20.
