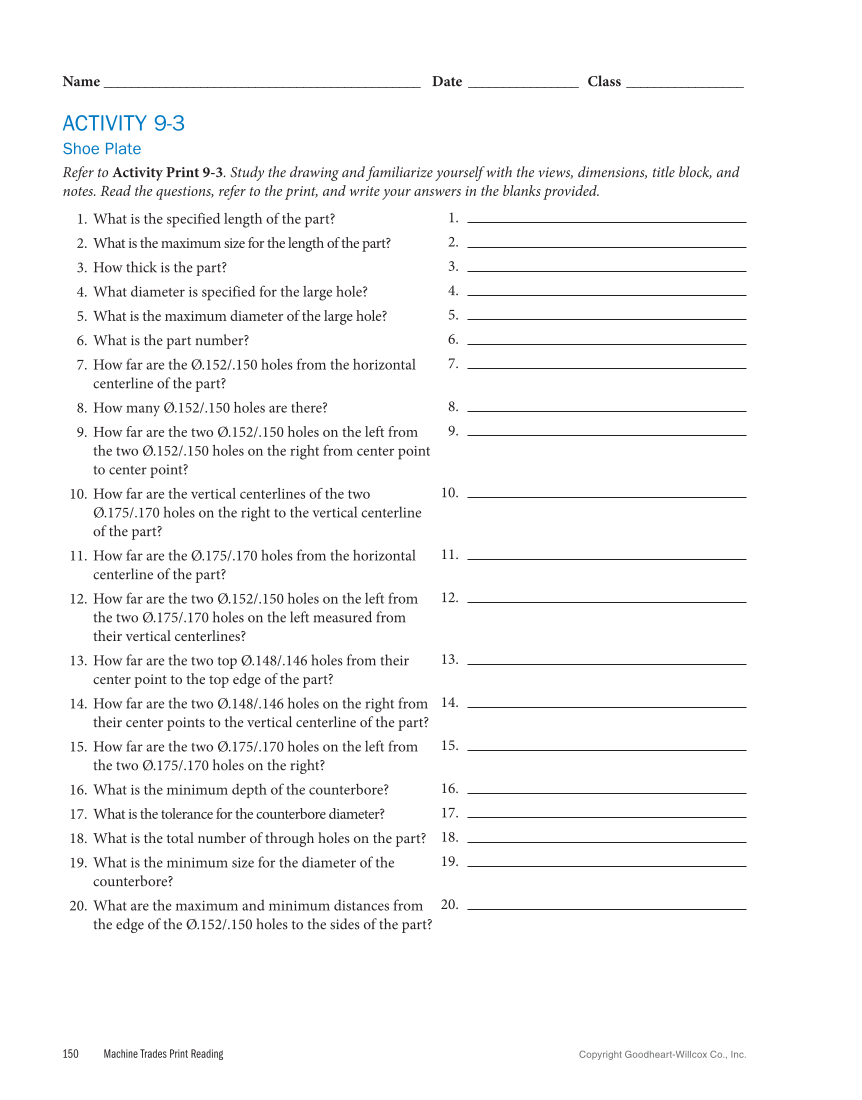

150 Machine Trades Print Reading Copyright Goodheart-Willcox Co., Inc. Name _______________________________________________ Date _ ________________ Class __________________ ACTIVITY 9-3 Shoe Plate Refer to Activity Print 9‑3. Study the drawing and familiarize yourself with the views, dimensions, title block, and notes. Read the questions, refer to the print, and write your answers in the blanks provided. 1. What is the specified length of the part? 2. What is the maximum size for the length of the part? 3. How thick is the part? 4. What diameter is specified for the large hole? 5. What is the maximum diameter of the large hole? 6. What is the part number? 7. How far are the Ø.152/.150 holes from the horizontal centerline of the part? 8. How many Ø.152/.150 holes are there? 9. How far are the two Ø.152/.150 holes on the left from the two Ø.152/.150 holes on the right from center point to center point? 10. How far are the vertical centerlines of the two Ø.175/.170 holes on the right to the vertical centerline of the part? 11. How far are the Ø.175/.170 holes from the horizontal centerline of the part? 12. How far are the two Ø.152/.150 holes on the left from the two Ø.175/.170 holes on the left measured from their vertical centerlines? 13. How far are the two top Ø.148/.146 holes from their center point to the top edge of the part? 14. How far are the two Ø.148/.146 holes on the right from their center points to the vertical centerline of the part? 15. How far are the two Ø.175/.170 holes on the left from the two Ø.175/.170 holes on the right? 16. What is the minimum depth of the counterbore? 17. What is the tolerance for the counterbore diameter? 18. What is the total number of through holes on the part? 19. What is the minimum size for the diameter of the counterbore? 20. What are the maximum and minimum distances from the edge of the Ø.152/.150 holes to the sides of the part? 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. 16. 17. 18. 19. 20.
