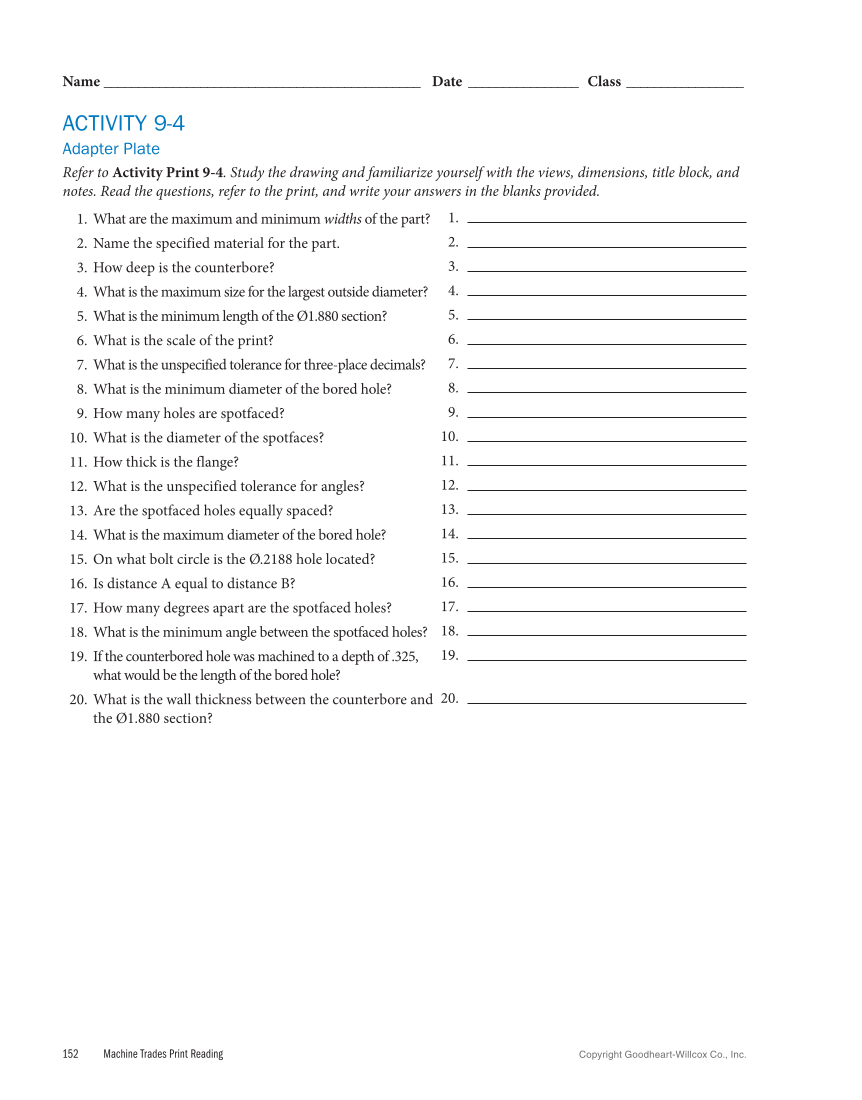

152 Machine Trades Print Reading Copyright Goodheart-Willcox Co., Inc. Name _______________________________________________ Date _ ________________ Class __________________ ACTIVITY 9-4 Adapter Plate Refer to Activity Print 9‑4. Study the drawing and familiarize yourself with the views, dimensions, title block, and notes. Read the questions, refer to the print, and write your answers in the blanks provided. 1. What are the maximum and minimum widths of the part? 2. Name the specified material for the part. 3. How deep is the counterbore? 4. What is the maximum size for the largest outside diameter? 5. What is the minimum length of the Ø1.880 section? 6. What is the scale of the print? 7. What is the unspecified tolerance for three-place decimals? 8. What is the minimum diameter of the bored hole? 9. How many holes are spotfaced? 10. What is the diameter of the spotfaces? 11. How thick is the flange? 12. What is the unspecified tolerance for angles? 13. Are the spotfaced holes equally spaced? 14. What is the maximum diameter of the bored hole? 15. On what bolt circle is the Ø.2188 hole located? 16. Is distance A equal to distance B? 17. How many degrees apart are the spotfaced holes? 18. What is the minimum angle between the spotfaced holes? 19. If the counterbored hole was machined to a depth of .325, what would be the length of the bored hole? 20. What is the wall thickness between the counterbore and the Ø1.880 section? 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. 16. 17. 18. 19. 20.
