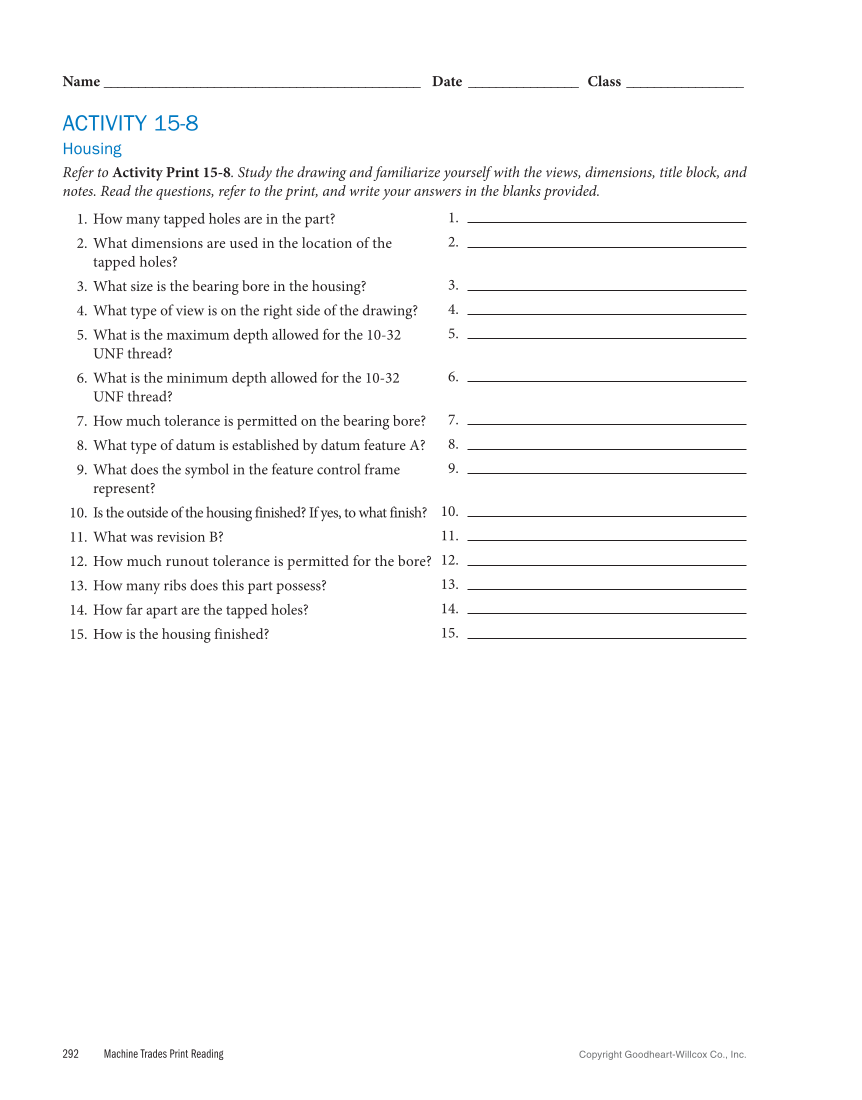

292 Machine Trades Print Reading Copyright Goodheart-Willcox Co., Inc. Name _______________________________________________ Date _ ________________ Class __________________ ACTIVITY 15-8 Housing Refer to Activity Print 15‑8. Study the drawing and familiarize yourself with the views, dimensions, title block, and notes. Read the questions, refer to the print, and write your answers in the blanks provided. 1. How many tapped holes are in the part? 2. What dimensions are used in the location of the tapped holes? 3. What size is the bearing bore in the housing? 4. What type of view is on the right side of the drawing? 5. What is the maximum depth allowed for the 10-32 UNF thread? 6. What is the minimum depth allowed for the 10-32 UNF thread? 7. How much tolerance is permitted on the bearing bore? 8. What type of datum is established by datum feature A? 9. What does the symbol in the feature control frame represent? 10. Is the outside of the housing finished? If yes, to what finish? 11. What was revision B? 12. How much runout tolerance is permitted for the bore? 13. How many ribs does this part possess? 14. How far apart are the tapped holes? 15. How is the housing finished? 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15.
