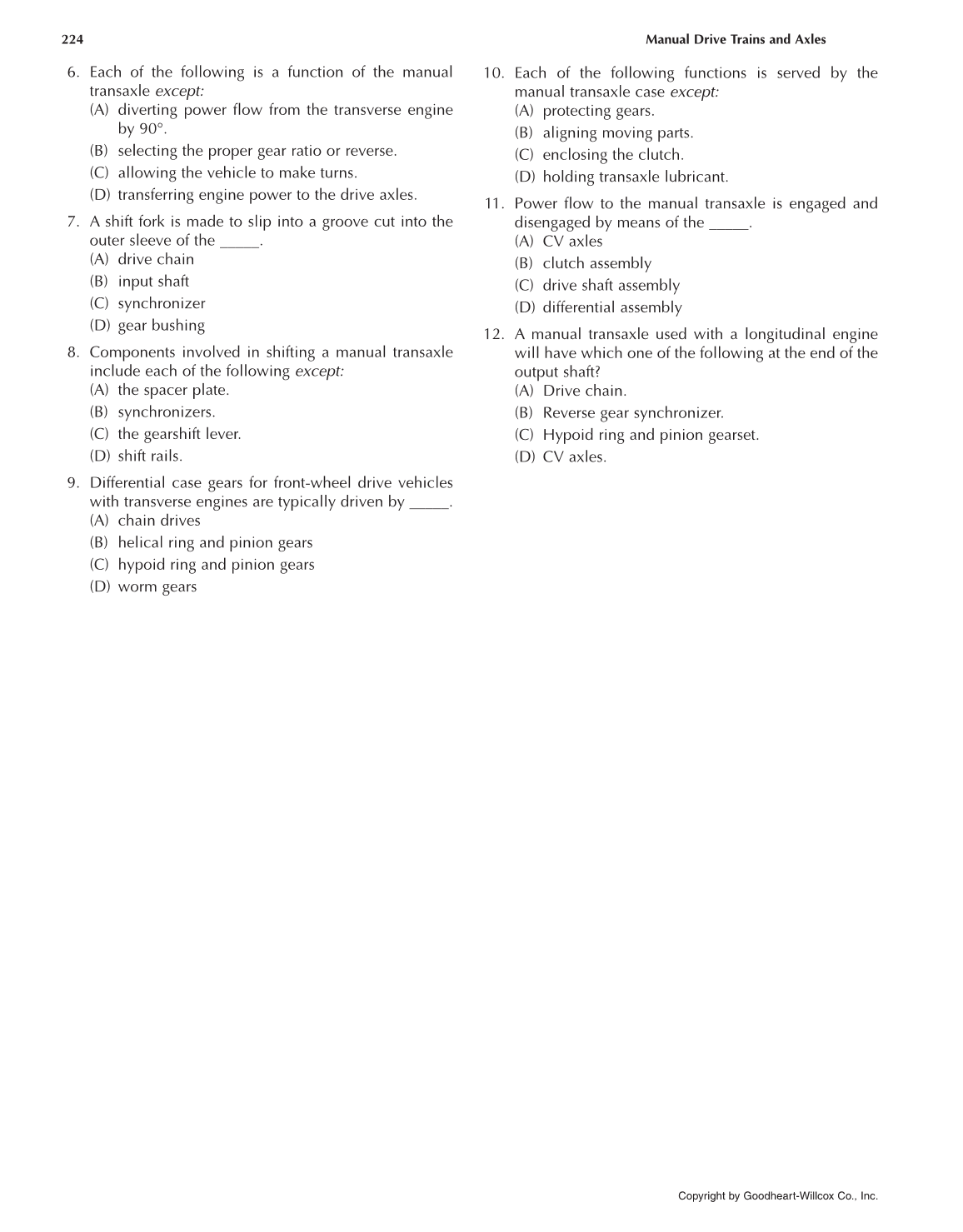

224 Manual Drive Trains and Axles
6. Each of the following is a function of the manual
transaxle except:
(A) diverting power flow from the transverse engine
by 90°.
(B) selecting the proper gear ratio or reverse.
(C) allowing the vehicle to make turns.
(D) transferring engine power to the drive axles.
7. A shift fork is made to slip into a groove cut into the
outer sleeve of the _____.
(A) drive chain
(B) input shaft
(C) synchronizer
(D) gear bushing
8. Components involved in shifting a manual transaxle
include each of the following except:
(A) the spacer plate.
(B) synchronizers.
(C) the gearshift lever.
(D) shift rails.
9. Differential case gears for front-wheel drive vehicles
with transverse engines are typically driven by _____.
(A) chain drives
(B) helical ring and pinion gears
(C) hypoid ring and pinion gears
(D) worm gears
10. Each of the following functions is served by the
manual transaxle case except:
(A) protecting gears.
(B) aligning moving parts.
(C) enclosing the clutch.
(D) holding transaxle lubricant.
11. Power flow to the manual transaxle is engaged and
disengaged by means of the _____.
(A) CV axles
(B) clutch assembly
(C) drive shaft assembly
(D) differential assembly
12. A manual transaxle used with a longitudinal engine
will have which one of the following at the end of the
output shaft?
(A) Drive chain.
(B) Reverse gear synchronizer.
(C) Hypoid ring and pinion gearset.
(D) CV axles.
