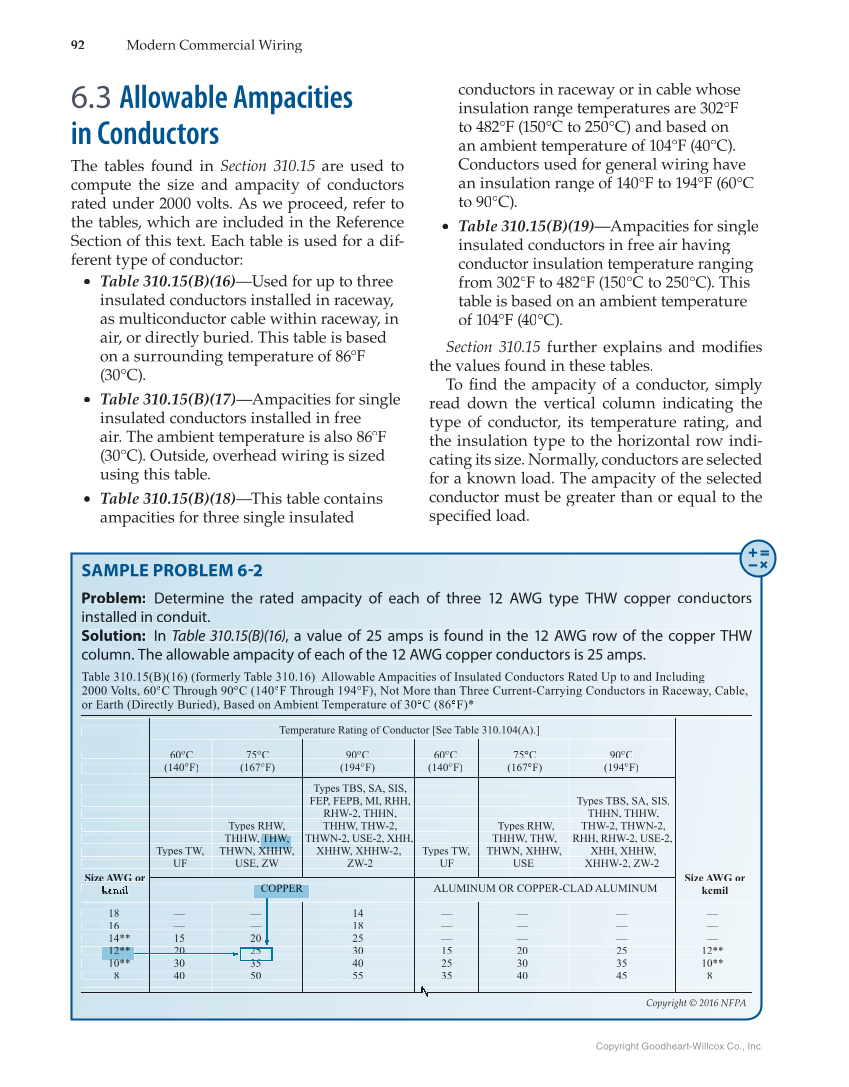

92  Modern  Commercial  Wiring  Copyright  Goodheart-Willcox  Co.,  Inc.  6.3  Allowable  Ampacities  in  Conductors  The  tables  found  in  Section  310.15  are  used  to  compute  the  size  and  ampacity  of  conductors  rated  under  2000  volts.  As  we  proceed,  refer  to  the  tables,  which  are  included  in  the  Reference  Section  of  this  text.  Each  table  is  used  for  a  dif-  ferent  type  of  conductor:  •  Table  310.15(B)(16)—Used  for  up  to  three  insulated  conductors  installed  in  raceway,  as  multiconductor  cable  within  raceway,  in  air,  or  directly  buried.  This  table  is  based  on  a  surrounding  temperature  of  86°F  (30°C).  •  Table  310.15(B)(17)—Ampacities  for  single  insulated  conductors  installed  in  free  air.  The  ambient  temperature  is  also  86°F  (30°C).  Outside,  overhead  wiring  is  sized  using  this  table.  •  Table  310.15(B)(18)—This  table  contains  ampacities  for  three  single  insulated  conductors  in  raceway  or  in  cable  whose  insulation  range  temperatures  are  302°F  to  482°F  (150°C  to  250°C)  and  based  on  an  ambient  temperature  of  104°F  (40°C).  Conductors  used  for  general  wiring  have  an  insulation  range  of  140°F  to  194°F  (60°C  to  90°C).  •  Table  310.15(B)(19)—Ampacities  for  single  insulated  conductors  in  free  air  having  conductor  insulation  temperature  ranging  from  302°F  to  482°F  (150°C  to  250°C).  This  table  is  based  on  an  ambient  temperature  of  104°F  (40°C).  Section  310.15  further  explains  and  modifiesfi  the  values  found  in  these  tables.  To  fi  nd  the  ampacity  of  a  conductor,  simply  fi  read  down  the  vertical  column  indicating  the  type  of  conductor,  its  temperature  rating,  and  the  insulation  type  to  the  horizontal  row  indi-  cating  its  size.  Normally,  conductors  are  selected  for  a  known  load.  The  ampacity  of  the  selected  conductor  must  be  greater  than  or  equal  to  the  specified  load.  fi  SAMPLE  PROBLEM  6-2  Problem:  Determine  the  rated  ampacity  t  of  each  of  three  12  AWG  type  THW  copper  conductors  o  installed  in  conduit.  Solution:  In  Table  310.15(B)(16),  a  value  e  of  25  amps  is  found  in  the  12  AWG  row  of  the  copper  op  THW  column.  The  allowable  ampacity  of  each  h  of  the  12  AWG  copper  conductors  is  25  amps.  Table  310.15(B)(16)  (formerly  Table  310.16)  Al  ll  owable  Ampacities  of  Insulated  Conductors  Rated  Up  to  and  Inclu  ud  ing  2000  Volts,  60°C  °  Through  90°C  °  (140°F  °  Through  h  194°F),  °  Not  More  than  Three  Current-Carrying  Conductors  in  Ra  ac  eway,  Cable,  or  Earth  (Directly  Buried),  Based  on  Ambient  Temperature  T  of  30°C  °  (86°F)*°  Temperatu  ur  e  Rating  of  Conductor  [See  Table  310.104(A).]  60°C  °  75°C  °  90°C  °  60°C  °  75°C  °  90°C°  (140°F)  °  (167°F)  °  (194°F)  °  (140°F)  °  (167°F)  °  (194°F)°  Types  TBS,  SA,  SIS,  FEP,  FEPB,  MI,  RHH,  Types  TBS,  SA,  SIS,  RHW-2,  THHN,  THHN,  THHW  HW,  Types  RHW,  THHW,  THW-2,  Types  RHW,  THW-2,  THWN  WN-  2,  THHW,  THW,  THWN-2,  USE-2,  XHH,  THHW,  THW,  RHH,  RHW-2,  U  US  E-2,  THW  ,  Types  TW,  THWN,  XHHW,  XHHW,  XHHW-2,  Types  TW,  THWN,  XHHW,  XHH,  XHH  HW,  XHHW  UF  USE,  ZW  ZW-2  UF  USE  XHHW-2,  Z  ZW-  2  COPPER  E  ALUMINUM  OR  COPPER-CLAD  ALUMIN  NU  M  COPPER  14  —  —  —  —  —  18  —  —  18  —  —  —  —  —  16  —  —  25  —  —  —  —  —  14**  15  20  30  15  20  2  25  12**  12**  20  25  12**  10**  30  35  40  25  30  3  35  10**  10**  35  8  40  50  55  35  40  45  8  Size  AWG  or  kcmil  Size  AWG  or  kcmil  25  35  20  Copyright  ©  2016  NFPA
