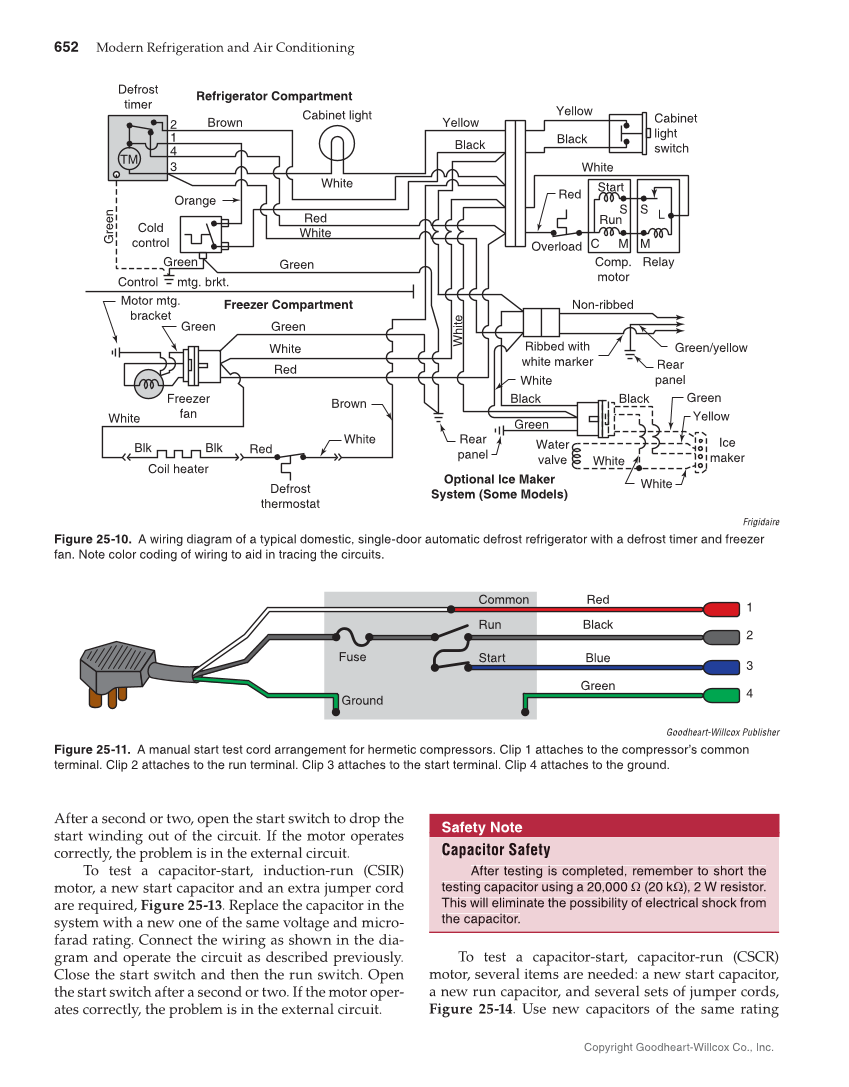

652 Modern Refrigeration and Air Conditioning Copyright Goodheart-Willcox Co., Inc. After a second or two, open the start switch to drop the start winding out of the circuit. If the motor operates correctly, the problem is in the external circuit. To test a capacitor-start, induction-run (CSIR) motor, a new start capacitor and an extra jumper cord are required, Figure 25-13. Replace the capacitor in the system with a new one of the same voltage and micro- farad rating. Connect the wiring as shown in the dia- gram and operate the circuit as described previously. Close the start switch and then the run switch. Open the start switch after a second or two. If the motor oper- ates correctly, the problem is in the external circuit. Safety Note Capacitor Safetyy After testing is completed, remember to short the testing capacitor using a 20,000 Ω (20 kΩ), 2 W resistor. This will eliminate the possibility of electrical shock from the capacitor..acitorpca To test a capacitor-start, capacitor-run (CSCR) motor, several items are needed: a new start capacitor, a new run capacitor, and several sets of jumper cords, Figure 25-14. Use new capacitors of the same rating Capacitor Safet After testin g is completed, remember to short the testing capacitor using a 20,000 Ω ( 20 k Ω ) , 2 W resistor. This will eliminate the possibility of electrical shock from the Common Fuse Ground Run Start 1 2 3 4 Red Black Blue Green Refrigerator Compartment Optional Ice Maker System (Some Models) Freezer Compartment Brown Brown Cabinet light White White Yellow Yellow Black Black Red Red Start Run C M M S L S Overload Comp. motor Relay Non-ribbed Green/yellow Rear panel Green Yellow Ice maker White Cabinet light switch Red Red Blk Blk Coil heater Defrost thermostat White White White Ribbed with white marker Whit e White White Water valve Rear panel White Freezer fan Green Green Black Black Green Green Orange Cold control Control mtg. brkt. Motor mtg. bracket Green Green 2 4 3 TM 1 Defrost timer Goodheart-Willcox Publisher Figure 25-11. A manual start test cord arrangement for hermetic compressors. Clip 1 attaches to the compressor’s common terminal. Clip 2 attaches to the run terminal. Clip 3 attaches to the start terminal. Clip 4 attaches to the ground. Frigidaire Figure 25-10. A wiring diagram of a typical domestic, single-door automatic defrost refrigerator with a defrost timer and freezer fan. Note color coding of wiring to aid in tracing the circuits.
