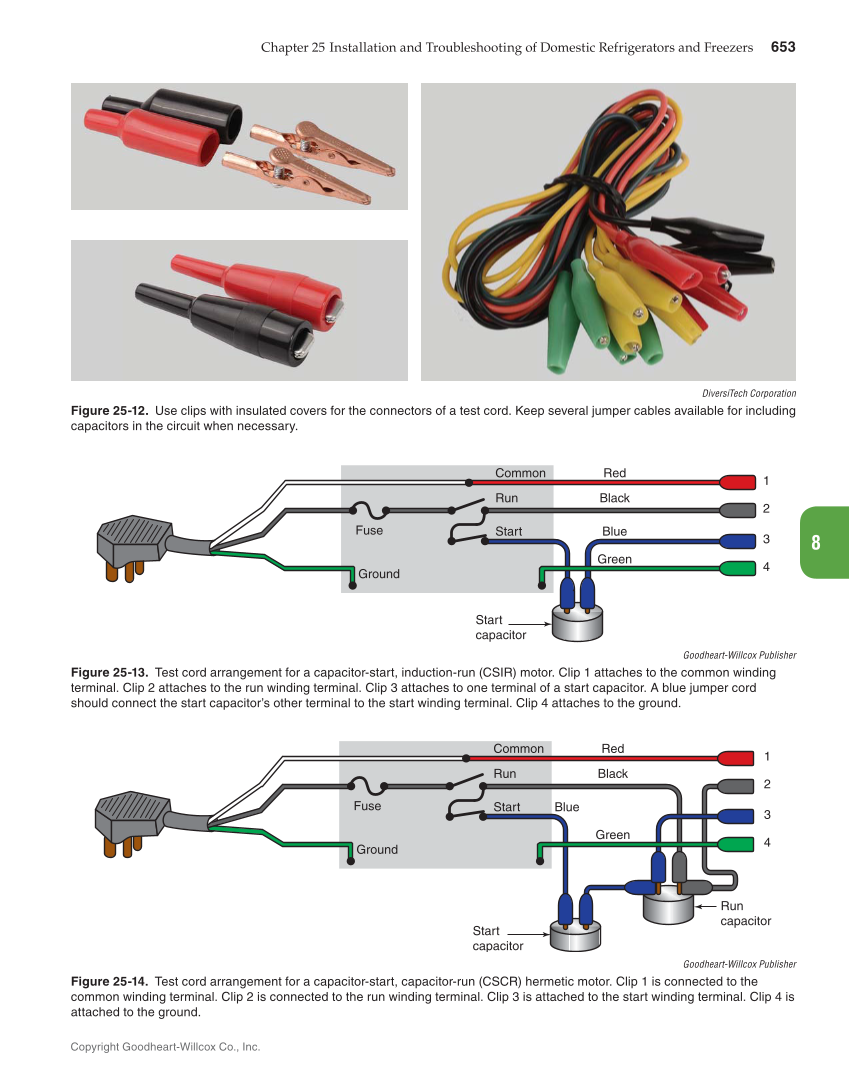

Chapter 25 Installation and Troubleshooting of Domestic Refrigerators and Freezers 653 Copyright Goodheart-Willcox Co., Inc. 8 Common Fuse Ground Run Start 1 2 3 4 Red Black Blue Green Start capacitor Common Fuse Ground Run Start Blue 1 2 3 4 Start capacitor Run capacitor Red Black Green DiversiTech Corporation Figure 25-12. Use clips with insulated covers for the connectors of a test cord. Keep several jumper cables available for including capacitors in the circuit when necessary. Goodheart-Willcox Publisher Figure 25-13. Test cord arrangement for a capacitor-start, induction-run (CSIR) motor. Clip 1 attaches to the common winding terminal. Clip 2 attaches to the run winding terminal. Clip 3 attaches to one terminal of a start capacitor. A blue jumper cord should connect the start capacitor’s other terminal to the start winding terminal. Clip 4 attaches to the ground. Goodheart-Willcox Publisher Figure 25-14. Test cord arrangement for a capacitor-start, capacitor-run (CSCR) hermetic motor. Clip 1 is connected to the common winding terminal. Clip 2 is connected to the run winding terminal. Clip 3 is attached to the start winding terminal. Clip 4 is attached to the ground.
