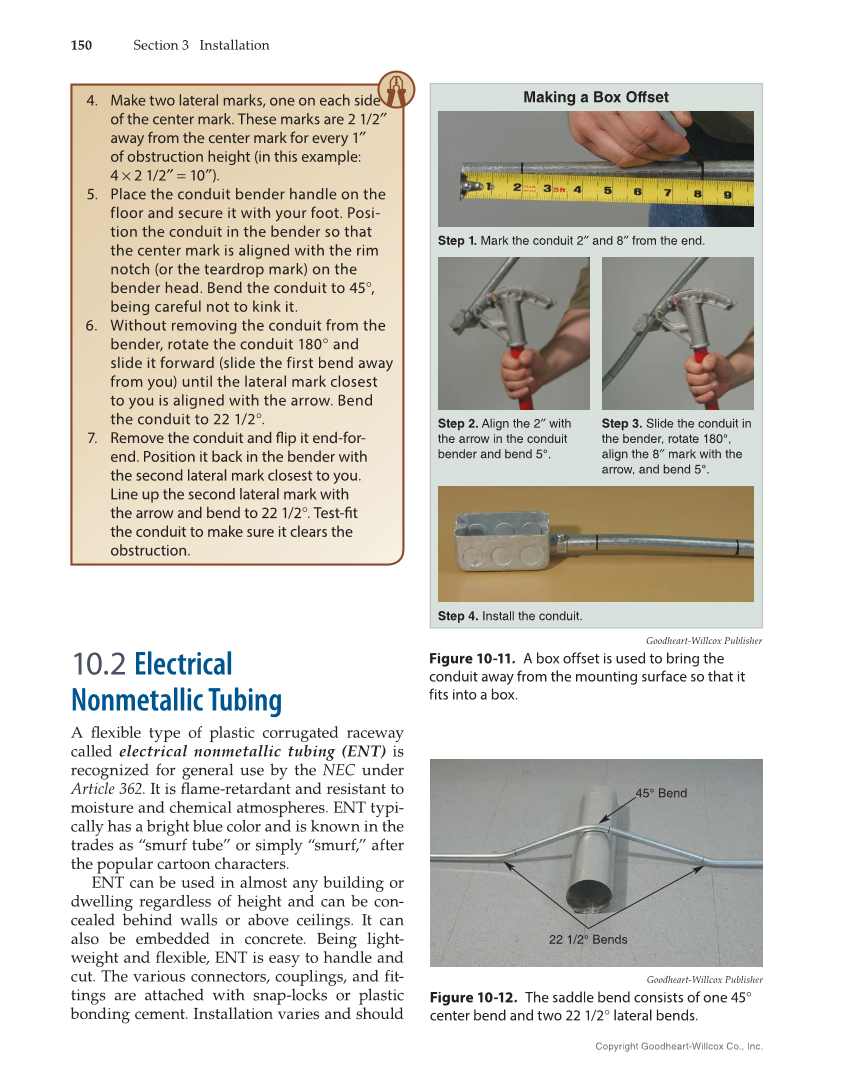

150  Section  3  Installation  Copyright  Goodheart-Willcox  Co.,  Inc.  Goodheart-Willcox  Publisher  Figure  10-11.  A  box  offset  is  used  to  bring  the  conduit  away  from  the  mounting  surface  so  that  it  fits  into  a  box.  Goodheart-Willcox  Publisher  Figure  10-12.  The  saddle  bend  consists  of  one  45°  center  bend  and  two  22  1/2°  lateral  bends.  10.2  Electrical  Nonmetallic  Tubing  A  fl  exible  type  of  plastic  corrugated  raceway  called  electrical  nonmetallic  tubing  (ENT)  is  recognized  for  general  use  by  the  NEC  under  Article  362.  It  is  fl  ame-retardant  and  resistant  to  moisture  and  chemical  atmospheres.  ENT  typi-  cally  has  a  bright  blue  color  and  is  known  in  the  trades  as  “smurf  tube”  or  simply  “smurf,”  after  the  popular  cartoon  characters.  ENT  can  be  used  in  almost  any  building  or  dwelling  regardless  of  height  and  can  be  con-  cealed  behind  walls  or  above  ceilings.  It  can  also  be  embedded  in  concrete.  Being  light-  weight  and  flexible,  ENT  is  easy  to  handle  and  cut.  The  various  connectors,  couplings,  and  fit-  tings  are  attached  with  snap-locks  or  plastic  bonding  cement.  Installation  varies  and  should  4.  Make  two  lateral  marks,  one  on  each  side  of  the  center  mark.  These  marks  are  2  1/2″  away  from  the  center  mark  for  every  1″  of  obstruction  height  (in  this  example:  4  ×  2  1/2″  =  10″).  5.  Place  the  conduit  bender  handle  on  the  floor  and  secure  it  with  your  foot.  Posi-  tion  the  conduit  in  the  bender  so  that  the  center  mark  is  aligned  with  the  rim  notch  (or  the  teardrop  mark)  on  the  bender  head.  Bend  the  conduit  to  45°,  being  careful  not  to  kink  it.  6.  Without  removing  the  conduit  from  the  bender,  rotate  the  conduit  180°  and  slide  it  forward  (slide  the  first  bend  away  from  you)  until  the  lateral  mark  closest  to  you  is  aligned  with  the  arrow.  Bend  the  conduit  to  22  1/2°.  7.  Remove  the  conduit  and  fl  ip  it  end-for-  end.  Position  it  back  in  the  bender  with  the  second  lateral  mark  closest  to  you.  Line  up  the  second  lateral  mark  with  the  arrow  and  bend  to  22  1/2°.  Test-fi  t  the  conduit  to  make  sure  it  clears  the  obstruction.  22  1/2°  Bends  45°  Bend  Making  a  Box  Offset  Step  1.  Mark  the  conduit  2″  and  8″  from  the  end.  Step  2.  Align  the  2″  with  the  arrow  in  the  conduit  bender  and  bend  5°.  Step  3.  Slide  the  conduit  in  the  bender,  rotate  180°,  align  the  8″  mark  with  the  arrow,  and  bend  5°.  Step  4.  Install  the  conduit.
