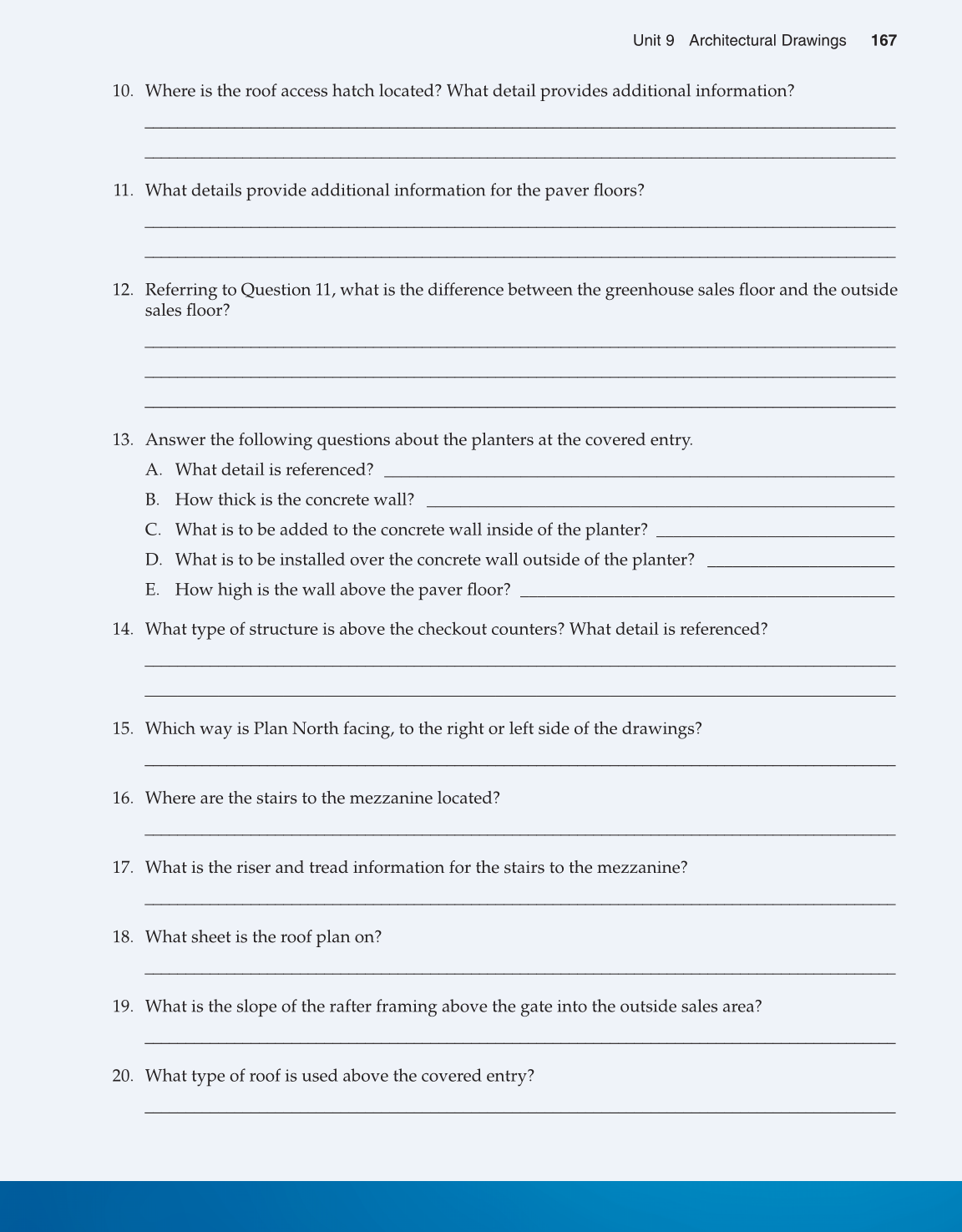

Unit 9 Architectural Drawings 167
10. Where is the roof access hatch located? What detail provides additional information?
____________________________________________________________________________________________
____________________________________________________________________________________________
11. What details provide additional information for the paver fl oors?
____________________________________________________________________________________________
____________________________________________________________________________________________
12. Referring to Question 11, what is the difference between the greenhouse sales fl oor and the outside
sales fl oor?
____________________________________________________________________________________________
____________________________________________________________________________________________
____________________________________________________________________________________________
13. Answer the following questions about the planters at the covered entry.
A. What detail is referenced? ____________________________________________________________
B. How thick is the concrete wall? _______________________________________________________
C. What is to be added to the concrete wall inside of the planter? ____________________________
D. What is to be installed over the concrete wall outside of the planter? ______________________
E. How high is the wall above the paver fl oor? ____________________________________________
14. What type of structure is above the checkout counters? What detail is referenced?
____________________________________________________________________________________________
____________________________________________________________________________________________
15. Which way is Plan North facing, to the right or left side of the drawings?
____________________________________________________________________________________________
16. Where are the stairs to the mezzanine located?
____________________________________________________________________________________________
17. What is the riser and tread information for the stairs to the mezzanine?
____________________________________________________________________________________________
18. What sheet is the roof plan on?
____________________________________________________________________________________________
19. What is the slope of the rafter framing above the gate into the outside sales area?
____________________________________________________________________________________________
20. What type of roof is used above the covered entry?
____________________________________________________________________________________________
