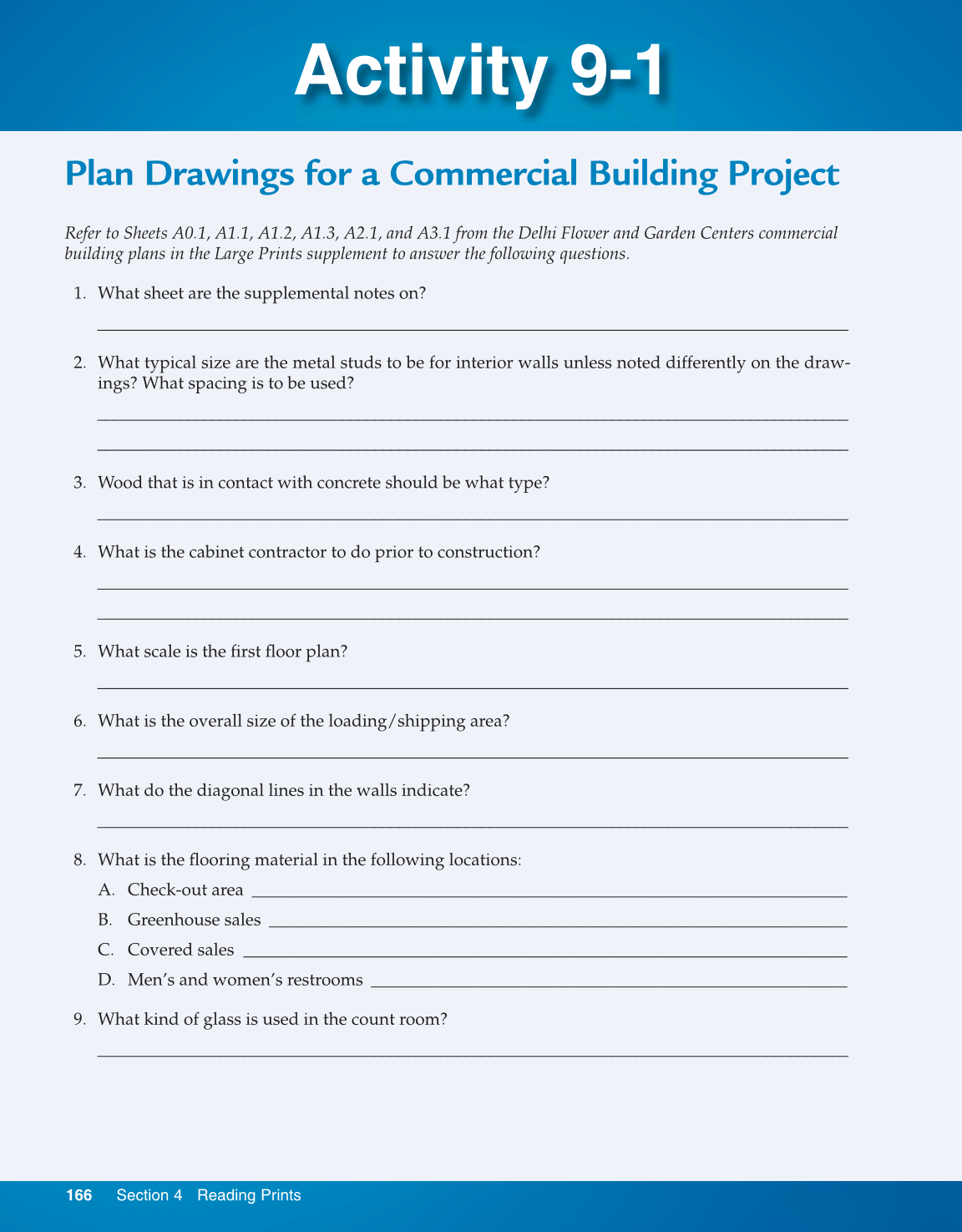

Plan Drawings for a Commercial Building Project
Refer to Sheets A0.1, A1.1, A1.2, A1.3, A2.1, and A3.1 from the Delhi Flower and Garden Centers commercial
building plans in the Large Prints supplement to answer the following questions.
1. What sheet are the supplemental notes on?
____________________________________________________________________________________________
2. What typical size are the metal studs to be for interior walls unless noted differently on the draw-
ings? What spacing is to be used?
____________________________________________________________________________________________
____________________________________________________________________________________________
3. Wood that is in contact with concrete should be what type?
____________________________________________________________________________________________
4. What is the cabinet contractor to do prior to construction?
____________________________________________________________________________________________
____________________________________________________________________________________________
5. What scale is the fi rst fl oor plan?
____________________________________________________________________________________________
6. What is the overall size of the loading/shipping area?
____________________________________________________________________________________________
7. What do the diagonal lines in the walls indicate?
____________________________________________________________________________________________
8. What is the fl ooring material in the following locations:
A. Check-out area ______________________________________________________________________
B. Greenhouse sales ____________________________________________________________________
C. Covered sales _______________________________________________________________________
D. Men’s and women’s restrooms ________________________________________________________
9. What kind of glass is used in the count room?
____________________________________________________________________________________________
Activity 9-1
