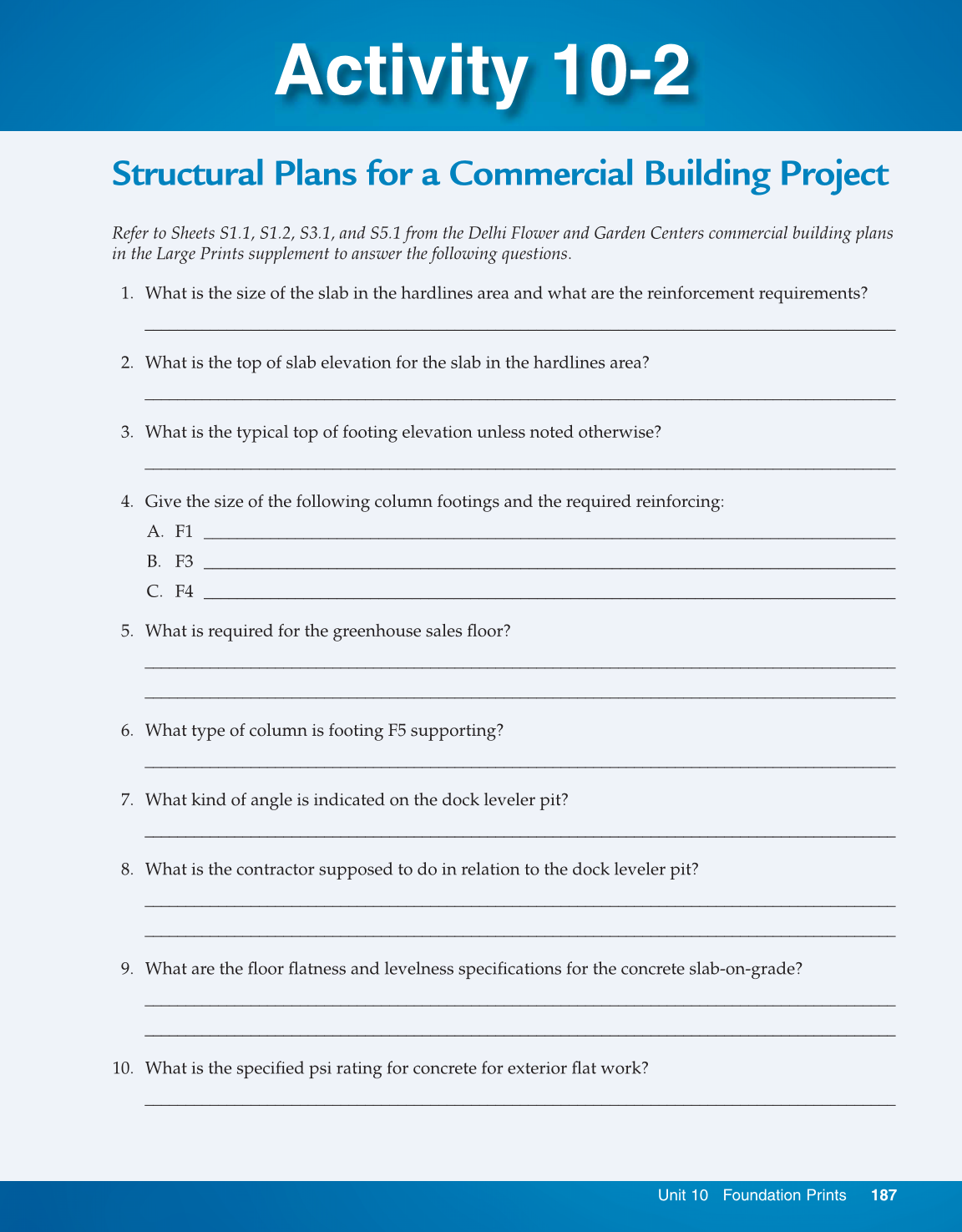

Structural Plans for a Commercial Building Project
Refer to Sheets S1.1, S1.2, S3.1, and S5.1 from the Delhi Flower and Garden Centers commercial building plans
in the Large Prints supplement to answer the following questions.
1. What is the size of the slab in the hardlines area and what are the reinforcement requirements?
____________________________________________________________________________________________
2. What is the top of slab elevation for the slab in the hardlines area?
____________________________________________________________________________________________
3. What is the typical top of footing elevation unless noted otherwise?
____________________________________________________________________________________________
4. Give the size of the following column footings and the required reinforcing:
A. F1 ___________________________________________________________________________________
B. F3 ___________________________________________________________________________________
C. F4 ___________________________________________________________________________________
5. What is required for the greenhouse sales fl oor?
____________________________________________________________________________________________
____________________________________________________________________________________________
6. What type of column is footing F5 supporting?
____________________________________________________________________________________________
7. What kind of angle is indicated on the dock leveler pit?
____________________________________________________________________________________________
8. What is the contractor supposed to do in relation to the dock leveler pit?
____________________________________________________________________________________________
____________________________________________________________________________________________
9. What are the fl oor fl atness and levelness specifi cations for the concrete slab-on-grade?
____________________________________________________________________________________________
____________________________________________________________________________________________
10. What is the specifi ed psi rating for concrete for exterior fl at work?
____________________________________________________________________________________________
