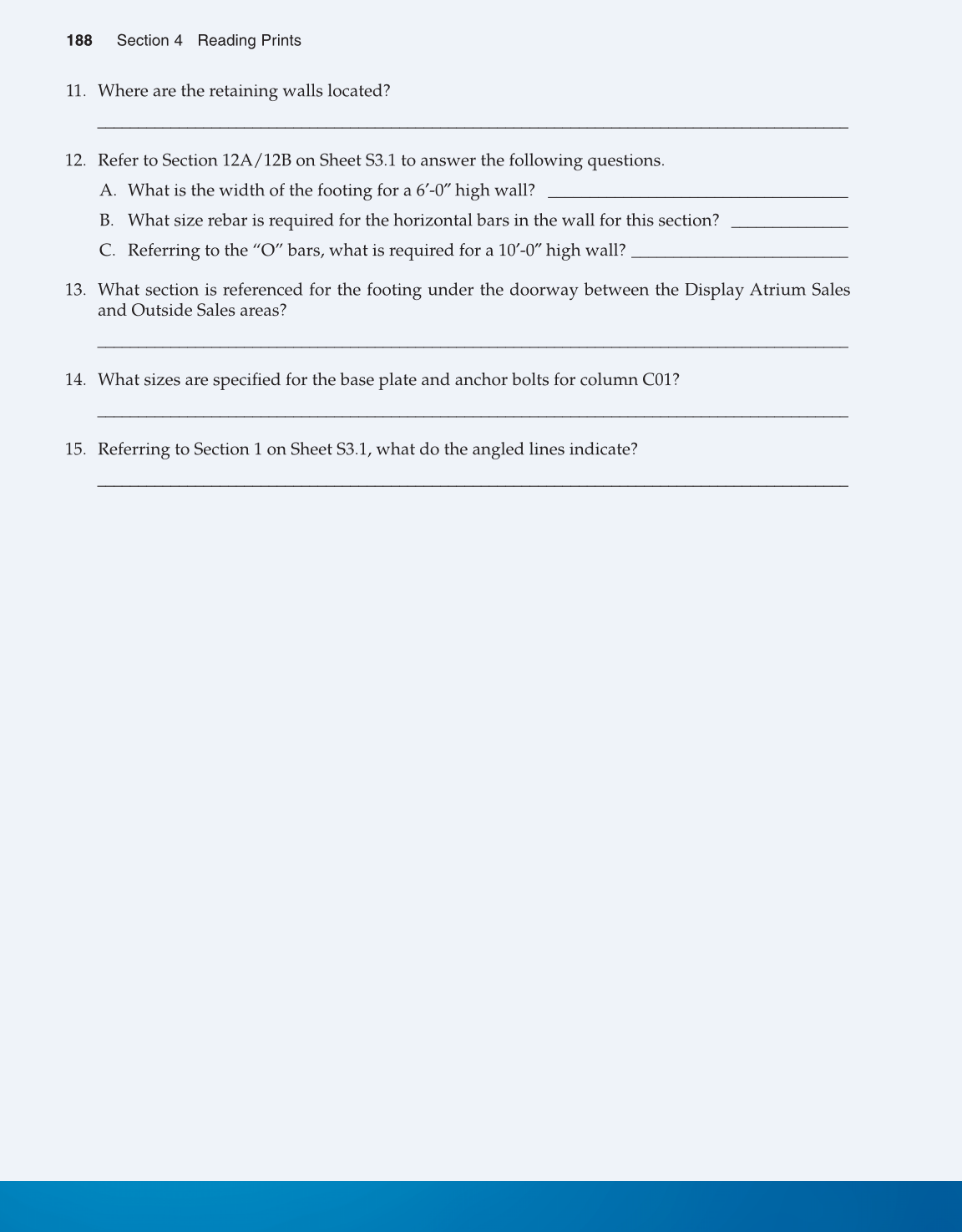

188 Section 4 Reading Prints
11. Where are the retaining walls located?
____________________________________________________________________________________________
12. Refer to Section 12A/12B on Sheet S3.1 to answer the following questions.
A. What is the width of the footing for a 6′-0″ high wall? ____________________________________
B. What size rebar is required for the horizontal bars in the wall for this section? ______________
C. Referring to the “O” bars, what is required for a 10′-0″ high wall? __________________________
13. What section is referenced for the footing under the doorway between the Display Atrium Sales
and Outside Sales areas?
____________________________________________________________________________________________
14. What sizes are specifi ed for the base plate and anchor bolts for column C01?
____________________________________________________________________________________________
15. Referring to Section 1 on Sheet S3.1, what do the angled lines indicate?
____________________________________________________________________________________________
