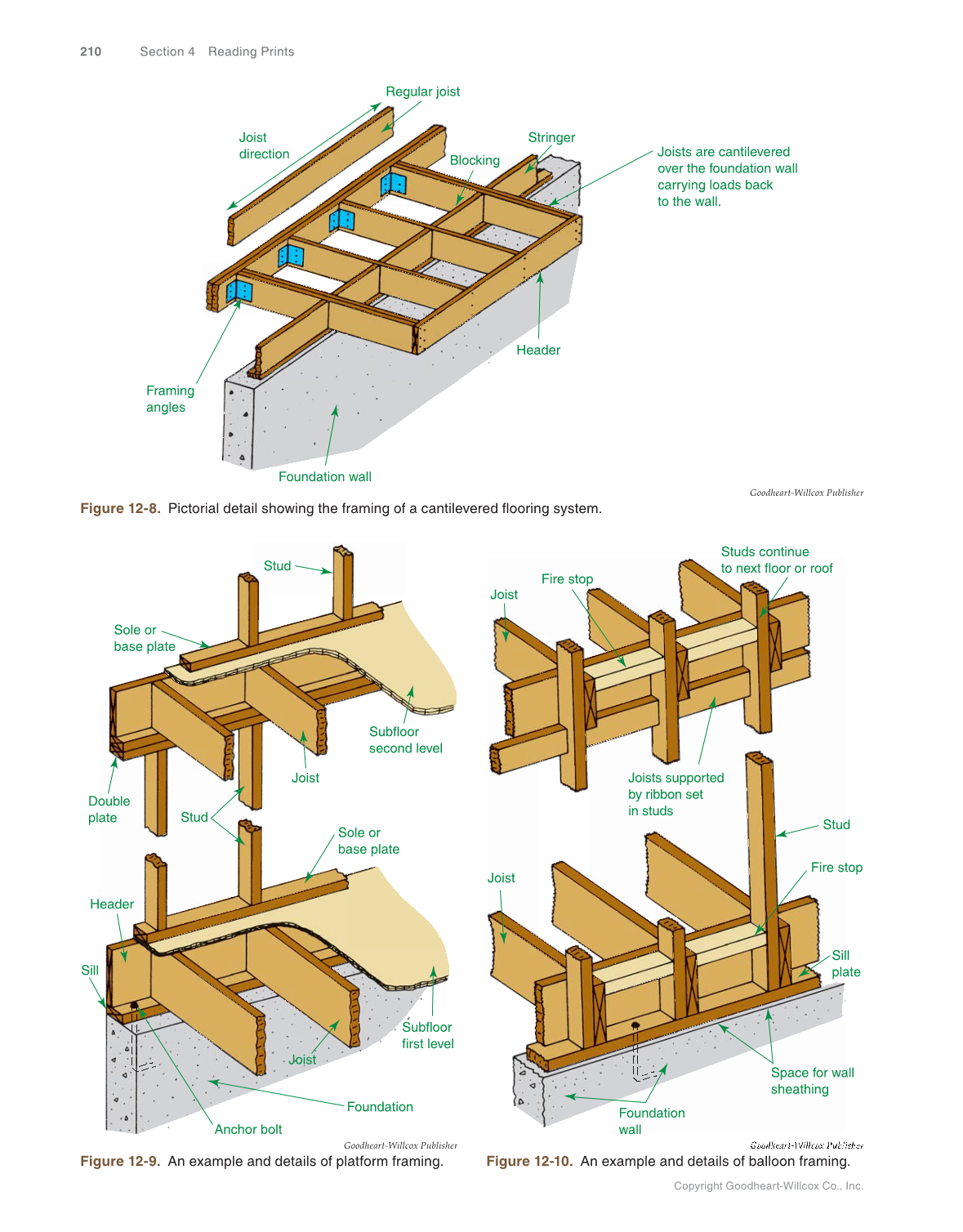

Copyright Goodheart-Willcox Co., Inc. 210 Section 4 Reading Prints Joist direction Regular joist Blocking Foundation wall Header Joists are cantilevered over the foundation wall carrying loads back to the wall. Stringer Framing angles Goodheart-Willcox Publisher Figure 12-8. Pictorial detail showing the framing of a cantilevered flooring system. Foundation Joist Anchor bolt Sill Header Subfloor first level Subfloor second level Sole or base plate Stud Stud Joist Double plate Sole or base plate Goodheart-Willcox Publisher Figure 12-9. An example and details of platform framing. Foundation wall Space for wall sheathing Sill plate Stud Joist Joist Fire stop Fire stop Joists supported by ribbon set in studs Studs continue to next floor or roof Figure 12-10. An example and details of balloon framing.
