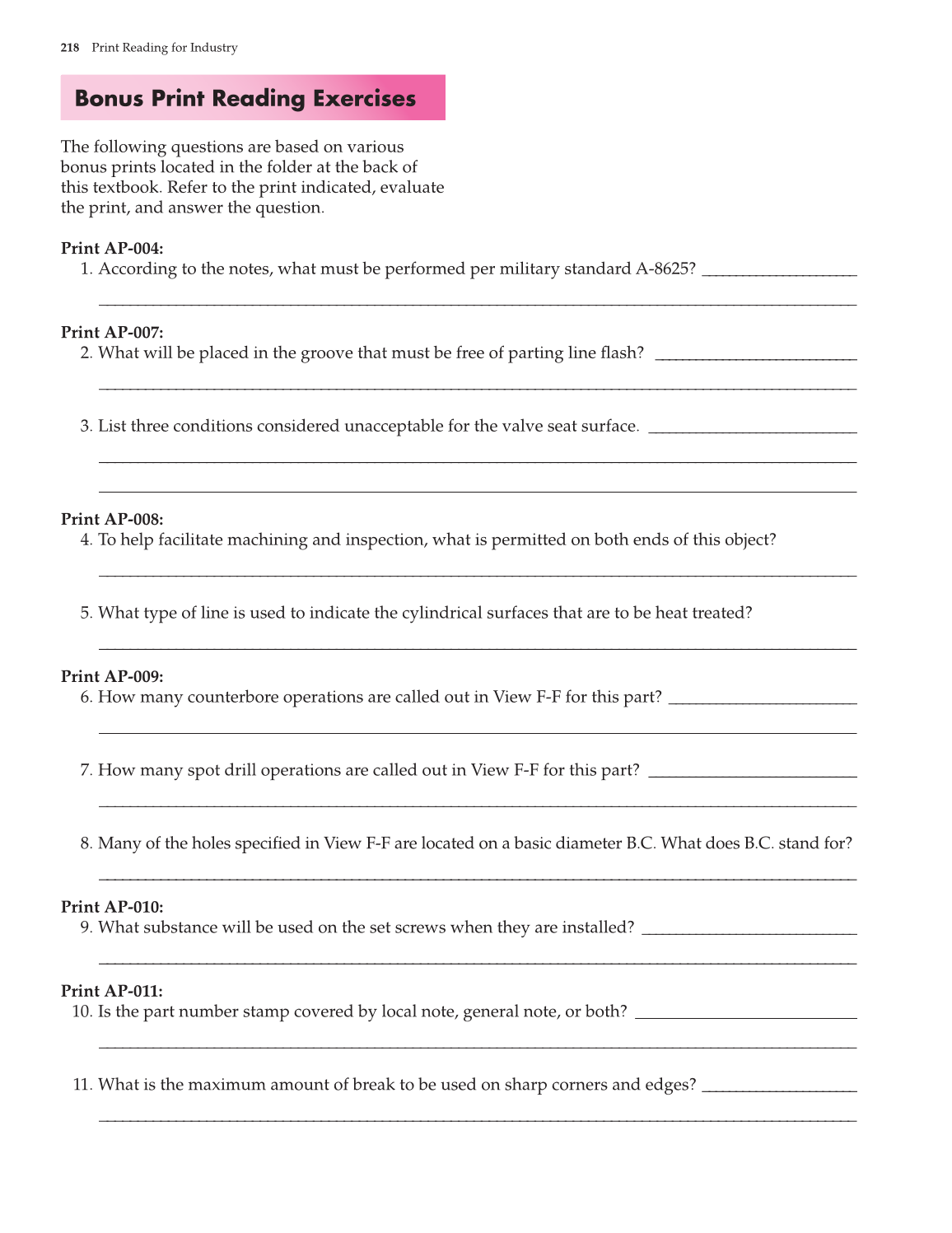

218 Print Reading for Industry
Print AP-004:
1. According to the notes, what must be performed per military standard A-8625? _______________________
___________________________________________________________________________________________________
Print AP-007:
2. What will be placed in the groove that must be free of parting line flash? ______________________________
___________________________________________________________________________________________________
3. List three conditions considered unacceptable for the valve seat surface. _______________________________
___________________________________________________________________________________________________
___________________________________________________________________________________________________
Print AP-008:
4. To help facilitate machining and inspection, what is permitted on both ends of this object?
___________________________________________________________________________________________________
5. What type of line is used to indicate the cylindrical surfaces that are to be heat treated?
___________________________________________________________________________________________________
Print AP-009:
6. How many counterbore operations are called out in View F-F for this part? ____________________________
___________________________________________________________________________________________________
7. How many spot drill operations are called out in View F-F for this part? _______________________________
___________________________________________________________________________________________________
8. Many of the holes specified in View F-F are located on a basic diameter B.C. What does B.C. stand for?
___________________________________________________________________________________________________
Print AP-010:
9. What substance will be used on the set screws when they are installed? ________________________________
___________________________________________________________________________________________________
Print AP-011:
10. Is the part number stamp covered by local note, general note, or both? _________________________________
___________________________________________________________________________________________________
11. What is the maximum amount of break to be used on sharp corners and edges? _______________________
___________________________________________________________________________________________________
The following questions are based on various
bonus prints located in the folder at the back of
this textbook. Refer to the print indicated, evaluate
the print, and answer the question.
Bonus Print Reading Exercises
