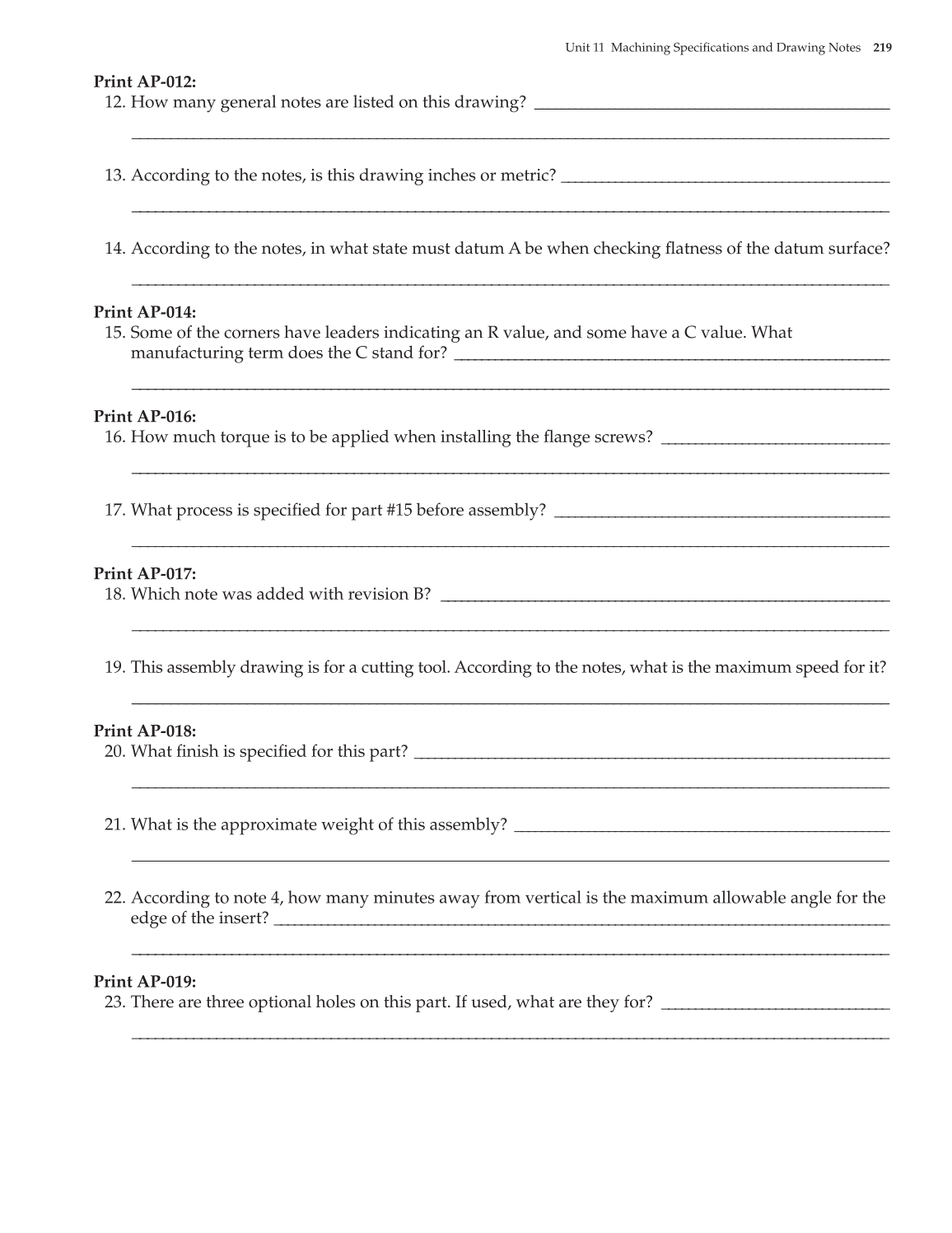

Unit 11 Machining Specifications and Drawing Notes 219
Print AP-012:
12. How many general notes are listed on this drawing? _____________________________________________________
___________________________________________________________________________________________________
13. According to the notes, is this drawing inches or metric? _________________________________________________
___________________________________________________________________________________________________
14. According to the notes, in what state must datum A be when checking flatness of the datum surface?
___________________________________________________________________________________________________
Print AP-014:
15. Some of the corners have leaders indicating an R value, and some have a C value. What
manufacturing term does the C stand for? _________________________________________________________________
___________________________________________________________________________________________________
Print AP-016:
16. How much torque is to be applied when installing the flange screws? __________________________________
___________________________________________________________________________________________________
17. What process is specified for part #15 before assembly? __________________________________________________
___________________________________________________________________________________________________
Print AP-017:
18. Which note was added with revision B? ___________________________________________________________________
___________________________________________________________________________________________________
19. This assembly drawing is for a cutting tool. According to the notes, what is the maximum speed for it?
___________________________________________________________________________________________________
Print AP-018:
20. What finish is specified for this part? _______________________________________________________________________
___________________________________________________________________________________________________
21. What is the approximate weight of this assembly? ________________________________________________________
___________________________________________________________________________________________________
22. According to note 4, how many minutes away from vertical is the maximum allowable angle for the
edge of the insert? ____________________________________________________________________________________________
___________________________________________________________________________________________________
Print AP-019:
23. There are three optional holes on this part. If used, what are they for? __________________________________
___________________________________________________________________________________________________
