Unit 5 Multiview Drawings 87

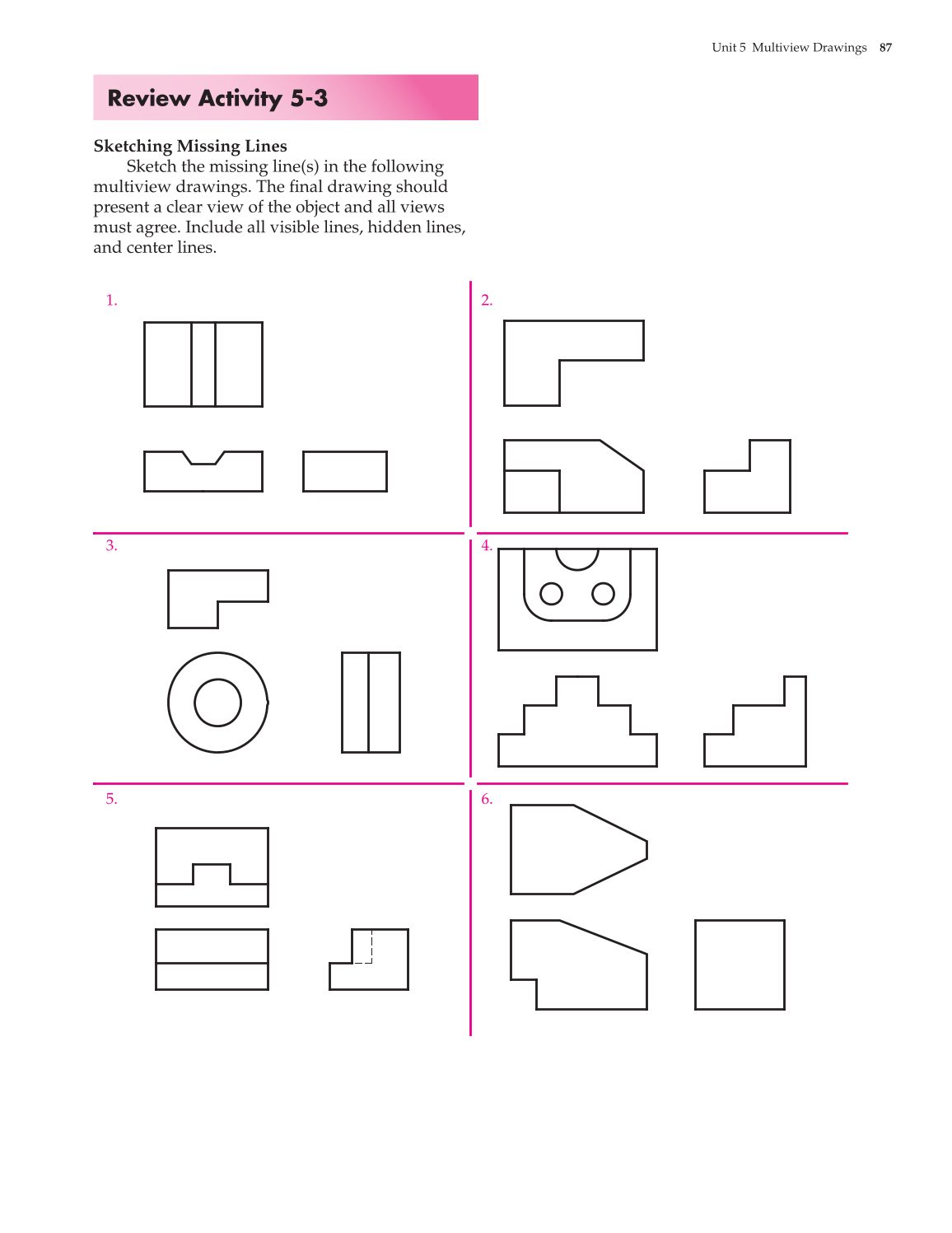

Sketching Missing Lines
Sketch the missing line(s) in the following
multiview drawings. The final drawing should
present a clear view of the object and all views
must agree. Include all visible lines, hidden lines,
and center lines.
Review Activity 5-3
1.
3.
5. 6.
4.
2.
