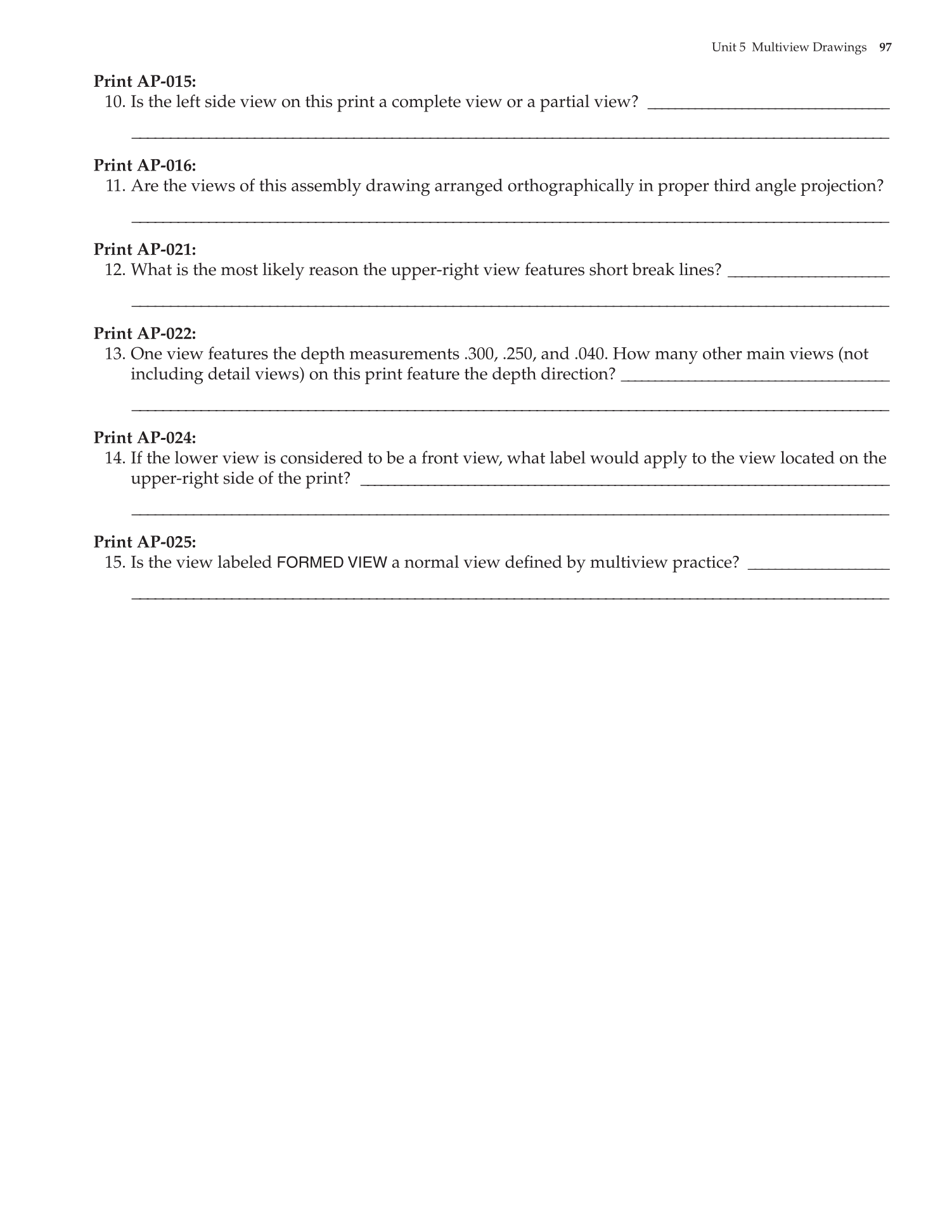

Unit 5 Multiview Drawings 97
Print AP-015:
10. Is the left side view on this print a complete view or a partial view? ____________________________________
___________________________________________________________________________________________________
Print AP-016:
11. Are the views of this assembly drawing arranged orthographically in proper third angle projection?
___________________________________________________________________________________________________
Print AP-021:
12. What is the most likely reason the upper-right view features short break lines? ________________________
___________________________________________________________________________________________________
Print AP-022:
13. One view features the depth measurements .300, .250, and .040. How many other main views (not
including detail views) on this print feature the depth direction? ________________________________________
___________________________________________________________________________________________________
Print AP-024:
14. If the lower view is considered to be a front view, what label would apply to the view located on the
upper-right side of the print? _______________________________________________________________________________
___________________________________________________________________________________________________
Print AP-025:
15. Is the view labeled
FORMED VIEW
a normal view defined by multiview practice? _____________________
___________________________________________________________________________________________________
