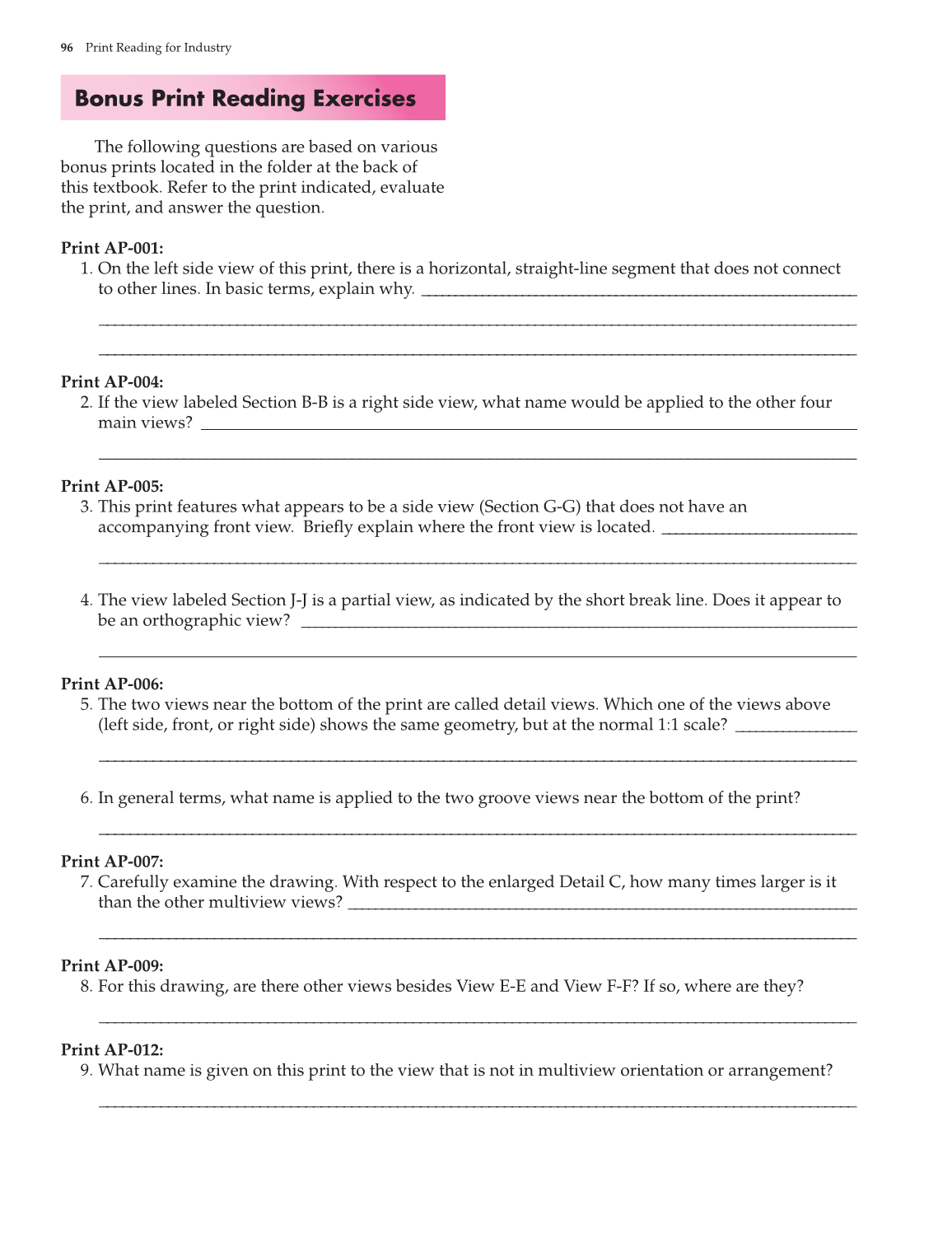

96 Print Reading for Industry
Print AP-001:
1. On the left side view of this print, there is a horizontal, straight-line segment that does not connect
to other lines. In basic terms, explain why. _________________________________________________________________
___________________________________________________________________________________________________
___________________________________________________________________________________________________
Print AP-004:
2. If the view labeled Section B-B is a right side view, what name would be applied to the other four
main views? __________________________________________________________________________________________________
___________________________________________________________________________________________________
Print AP-005:
3. This print features what appears to be a side view (Section G-G) that does not have an
accompanying front view. Briefly explain where the front view is located. _____________________________
___________________________________________________________________________________________________
4. The view labeled Section J-J is a partial view, as indicated by the short break line. Does it appear to
be an orthographic view? ___________________________________________________________________________________
___________________________________________________________________________________________________
Print AP-006:
5. The two views near the bottom of the print are called detail views. Which one of the views above
(left side, front, or right side) shows the same geometry, but at the normal 1:1 scale? __________________
___________________________________________________________________________________________________
6. In general terms, what name is applied to the two groove views near the bottom of the print?
___________________________________________________________________________________________________
Print AP-007:
7. Carefully examine the drawing. With respect to the enlarged Detail C, how many times larger is it
than the other multiview views? ____________________________________________________________________________
___________________________________________________________________________________________________
Print AP-009:
8. For this drawing, are there other views besides View E-E and View F-F? If so, where are they?
___________________________________________________________________________________________________
Print AP-012:
9. What name is given on this print to the view that is not in multiview orientation or arrangement?
___________________________________________________________________________________________________
The following questions are based on various
bonus prints located in the folder at the back of
this textbook. Refer to the print indicated, evaluate
the print, and answer the question.
Bonus Print Reading Exercises
