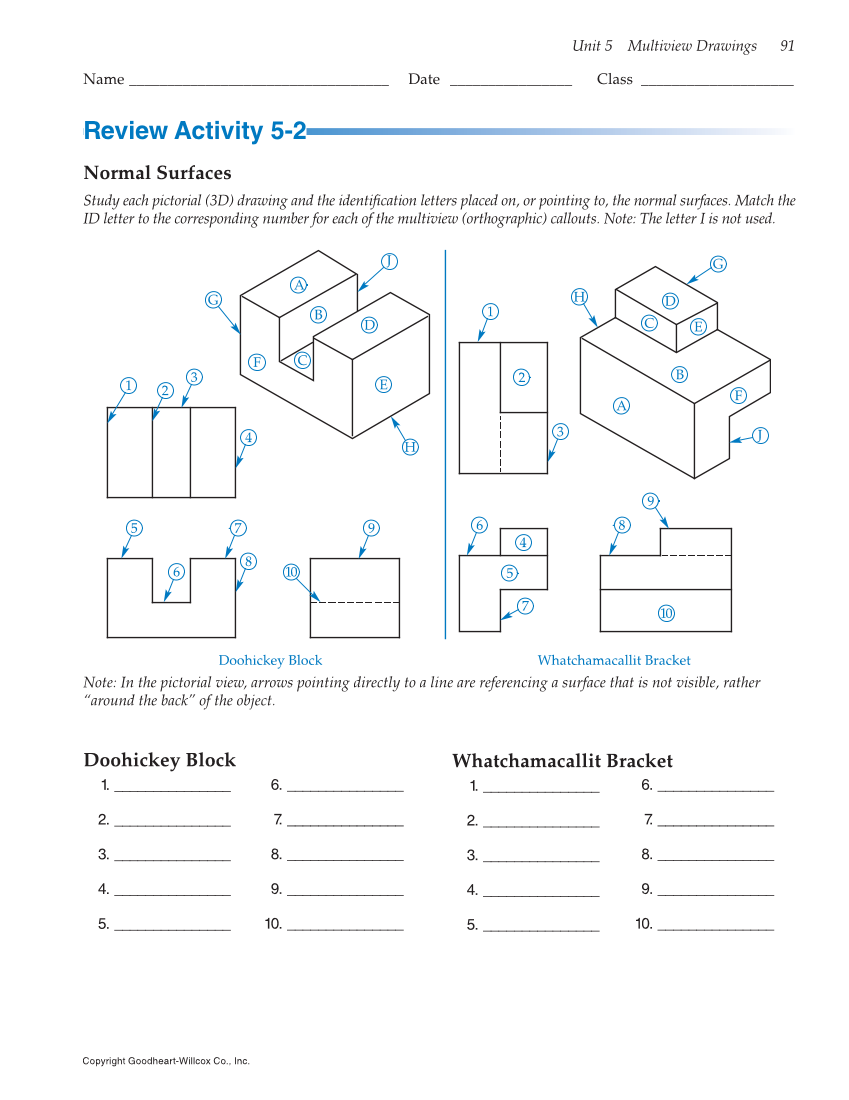

Unit 5 Multiview Drawings 91 Copyright Goodheart-Willcox Co., Inc. Name __________________________________ Date ________________ Class ____________________ Review Activity 5-2 Normal Surfaces Study each pictorial (3D) drawing and the identification letters placed on, or pointing to, the normal surfaces. Match the ID letter to the corresponding number for each of the multiview (orthographic) callouts. Note: The letter I is not used. Note: In the pictorial view, arrows pointing directly to a line are referencing a surface that is not visible, rather “around the back” of the object. Doohickey Block 1. _______________ 2. _______________ 3. _______________ 4. _______________ 5. _______________ 6. _______________ 7. _______________ 8. _______________ 9. _______________ 10. _______________ Whatchamacallit Bracket 1. _______________ 2. _______________ 3. _______________ 4. _______________ 5. _______________ 6. _______________ 7. _______________ 8. _______________ 9. _______________ 10. _______________ Doohickey Block Whatchamacallit Bracket 1 2 3 G A J 1 H G D C E B 2 3 6 4 8 9 10 7 5 A F J D B C F E H 4 10 9 8 7 6 5
