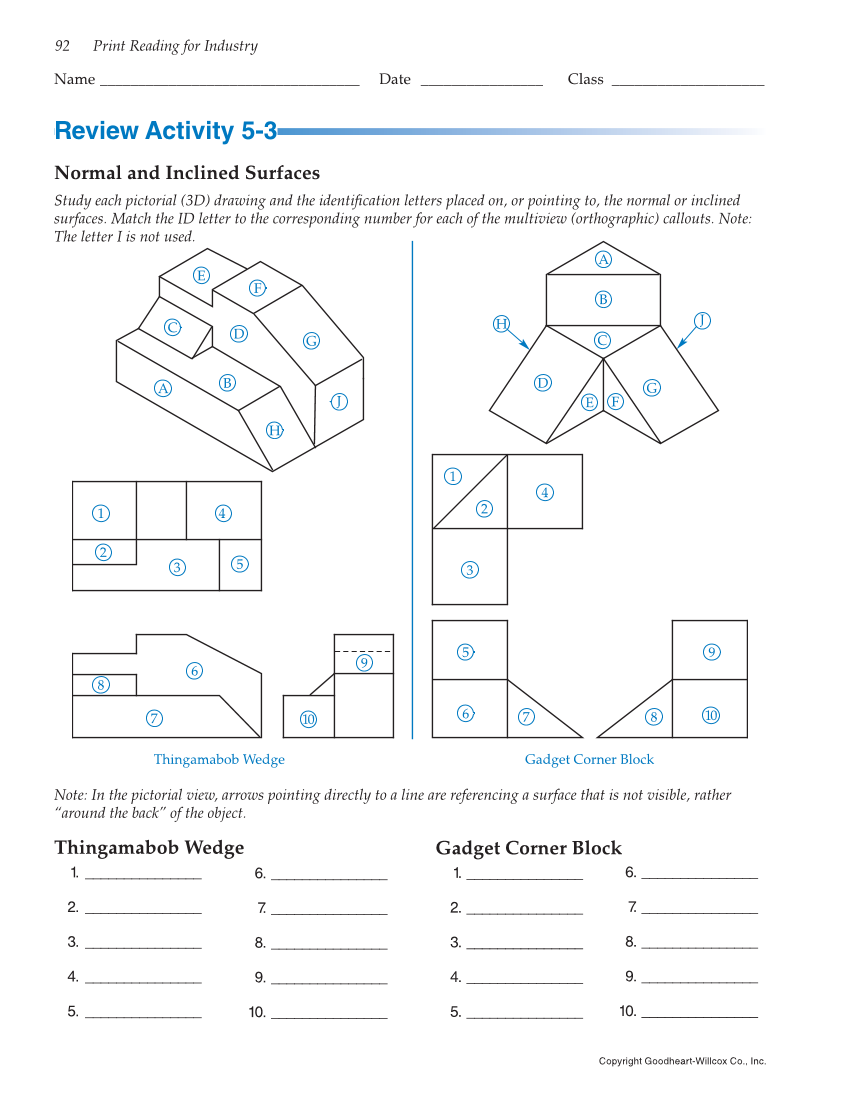

92 Print Reading for Industry Copyright Goodheart-Willcox Co., Inc. Name __________________________________ Date ________________ Class ____________________ Review Activity 5-3 Normal and Inclined Surfaces Study each pictorial (3D) drawing and the identification letters placed on, or pointing to, the normal or inclined surfaces. Match the ID letter to the corresponding number for each of the multiview (orthographic) callouts. Note: The letter I is not used. Note: In the pictorial view, arrows pointing directly to a line are referencing a surface that is not visible, rather “around the back” of the object. Thingamabob Wedge 1. _______________ 2. _______________ 3. _______________ 4. _______________ 5. _______________ Thingamabob Wedge Gadget Corner Block E F D C G J H B A 1 2 3 4 5 8 6 7 10 9 5 6 7 8 10 9 3 2 1 4 E F G D H C B A J 6. _______________ 7. _______________ 8. _______________ 9. _______________ 10. _______________ Gadget Corner Block 1. _______________ 2. _______________ 3. _______________ 4. _______________ 5. _______________ 6. _______________ 7. _______________ 8. _______________ 9. _______________ 10. _______________
