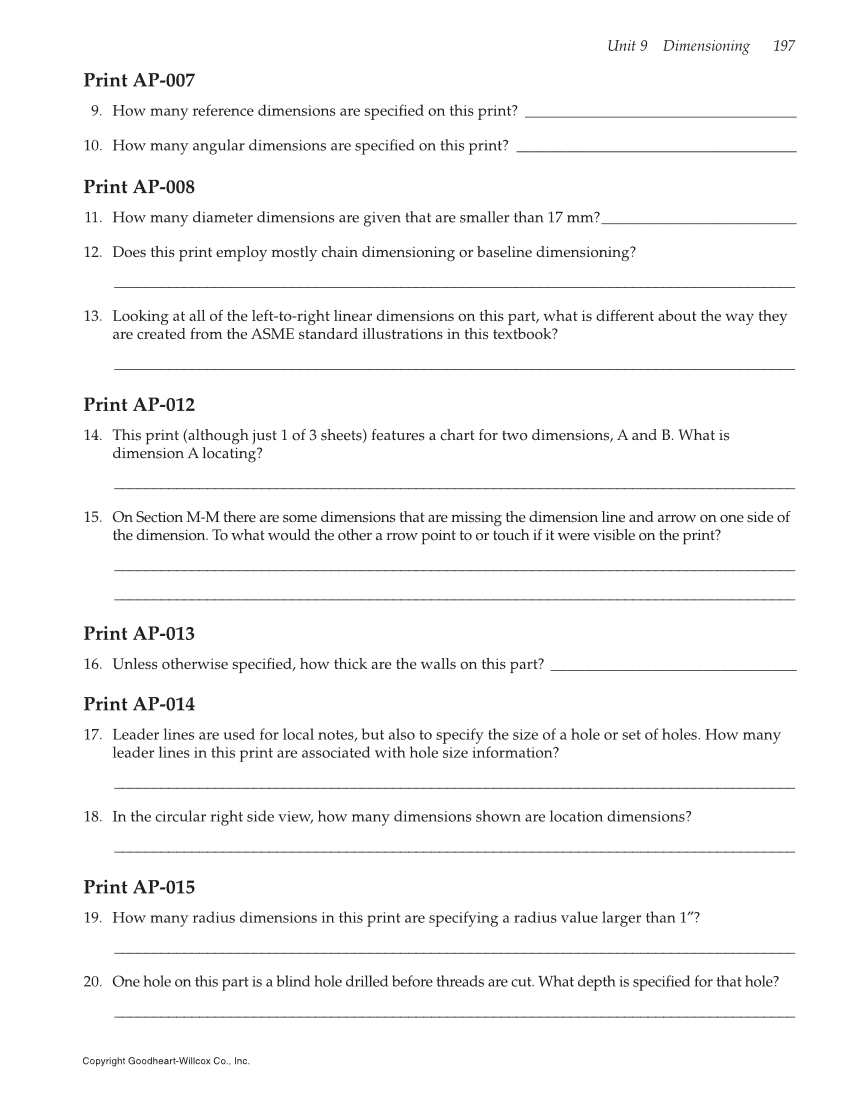

Unit 9 Dimensioning 197 Copyright Goodheart-Willcox Co., Inc. Print AP-007 9. How many reference dimensions are specified on this print? ________________________________ 10. How many angular dimensions are specified on this print? _________________________________ Print AP-008 11. How many diameter dimensions are given that are smaller than 17 mm? _______________________ 12. Does this print employ mostly chain dimensioning or baseline dimensioning? ________________________________________________________________________________________ 13. Looking at all of the left-to-right linear dimensions on this part, what is different about the way they are created from the ASME standard illustrations in this textbook? ________________________________________________________________________________________ Print AP-012 14. This print (although just 1 of 3 sheets) features a chart for two dimensions, A and B. What is dimension A locating? ________________________________________________________________________________________ 15. On Section M-M there are some dimensions that are missing the dimension line and arrow on one side of the dimension. To what would the other a rrow point to or touch if it were visible on the print? ________________________________________________________________________________________ ________________________________________________________________________________________ Print AP-013 16. Unless otherwise specified, how thick are the walls on this part? _____________________________ Print AP-014 17. Leader lines are used for local notes, but also to specify the size of a hole or set of holes. How many leader lines in this print are associated with hole size information? ________________________________________________________________________________________ 18. In the circular right side view, how many dimensions shown are location dimensions? ________________________________________________________________________________________ Print AP-015 19. How many radius dimensions in this print are specifying a radius value larger than 1″? ________________________________________________________________________________________ 20. One hole on this part is a blind hole drilled before threads are cut. What depth is specified for that hole? ________________________________________________________________________________________
