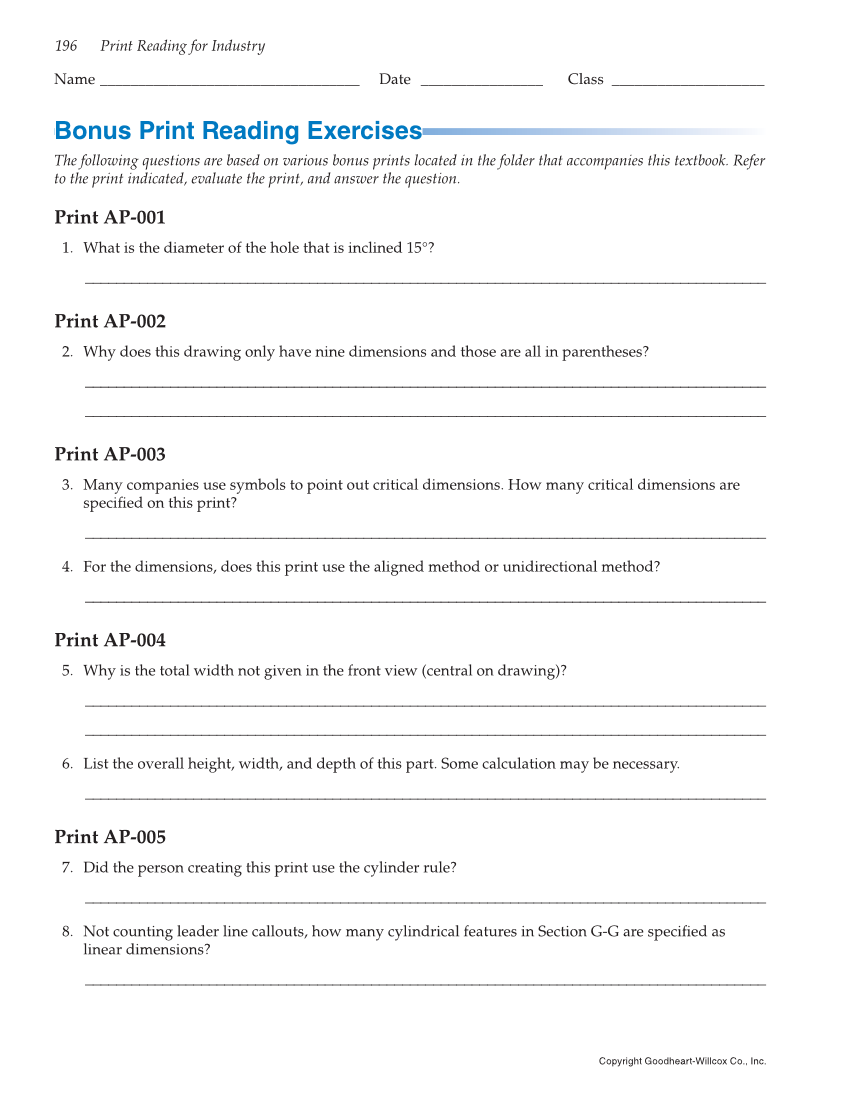

196 Print Reading for Industry Copyright Goodheart-Willcox Co., Inc. Name __________________________________ Date ________________ Class ____________________ Bonus Print Reading Exercises The following questions are based on various bonus prints located in the folder that accompanies this textbook. Refer to the print indicated, evaluate the print, and answer the question. Print AP-001 1. What is the diameter of the hole that is inclined 15°? ________________________________________________________________________________________ Print AP-002 2. Why does this drawing only have nine dimensions and those are all in parentheses? ________________________________________________________________________________________ ________________________________________________________________________________________ Print AP-003 3. Many companies use symbols to point out critical dimensions. How many critical dimensions are specified on this print? ________________________________________________________________________________________ 4. For the dimensions, does this print use the aligned method or unidirectional method? ________________________________________________________________________________________ Print AP-004 5. Why is the total width not given in the front view (central on drawing)? ________________________________________________________________________________________ ________________________________________________________________________________________ 6. List the overall height, width, and depth of this part. Some calculation may be necessary. ________________________________________________________________________________________ Print AP-005 7. Did the person creating this print use the cylinder rule? ________________________________________________________________________________________ 8. Not counting leader line callouts, how many cylindrical features in Section G-G are specified as linear dimensions? ________________________________________________________________________________________
