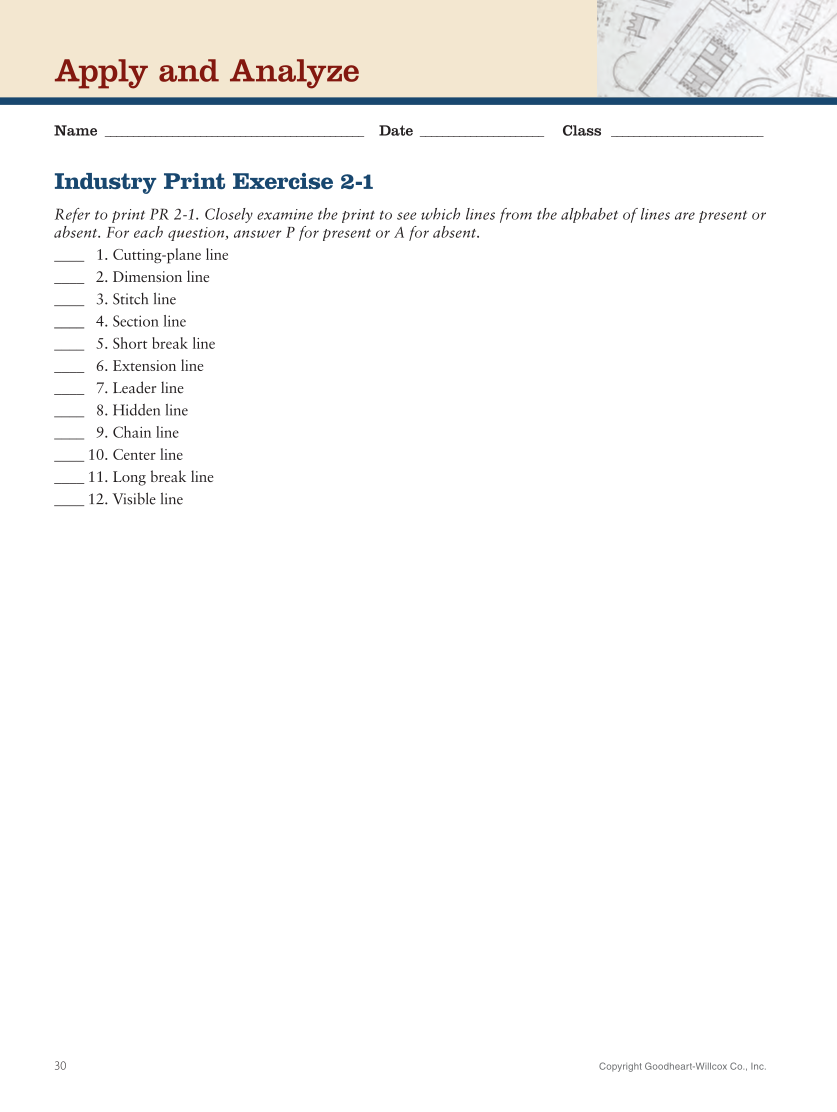

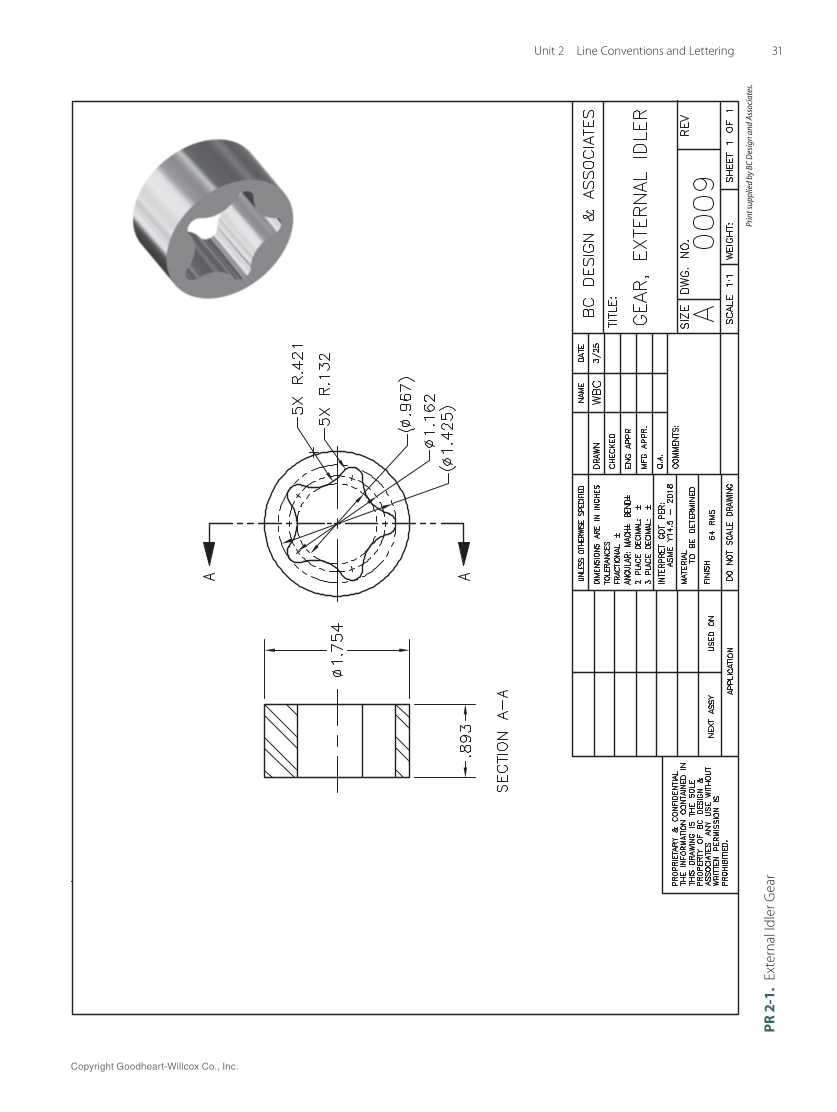

Copyright Goodheart-Willcox Co., Inc. 30 Industry Print Exercise 2-1 Refer to print PR 2-1. Closely examine the print to see which lines from the alphabet of lines are present or absent. For each question, answer P for present or A for absent. ��� 1. Cutting-plane line ��� 2. Dimension line ��� 3. Stitch line ��� 4. Section line ��� 5. Short break line ��� 6. Extension line ��� 7. Leader line ��� 8. Hidden line ��� 9. Chain line ��� 10. Center line ��� 11. Long break line ��� 12. Visible line Apply and Analyze Name _ ______________________________________________ Date _______________________ Class _ ___________________________
