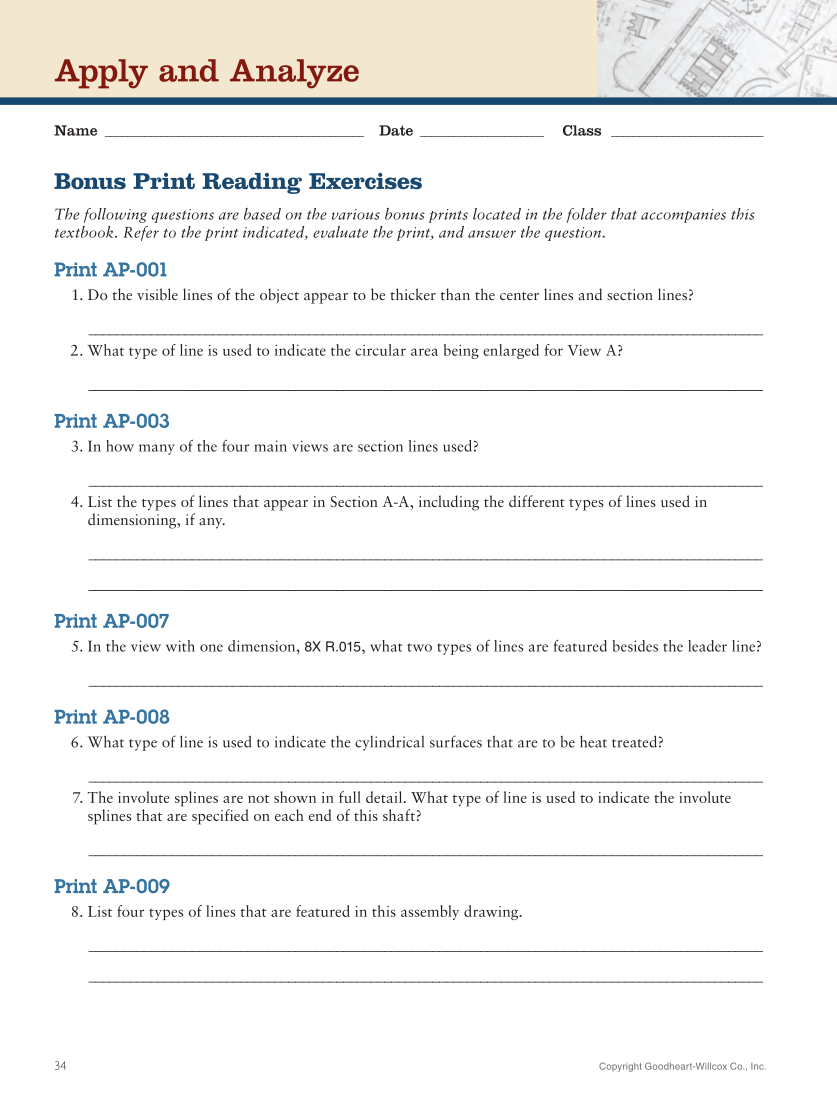

Copyright Goodheart-Willcox Co., Inc. 34 Apply and Analyze Name _ ______________________________________________ Date _______________________ Class _ ___________________________ Bonus Print Reading Exercises The following questions are based on the various bonus prints located in the folder that accompanies this textbook. Refer to the print indicated, evaluate the print, and answer the question. Print AP-001 1. the visible lines of the object appear to be thicker than the center lines and section lines? _Do __________________________________________________________________________________________________ 2. type of line is used to indicate the circular area being enlarged for View A? _What __________________________________________________________________________________________________ Print AP-003 3. how many of the four main views are section lines used? _In __________________________________________________________________________________________________ 4. List the types of lines that appear in Section A-A, including the different types of lines used in dimensioning, if any. _ ___________________________________________________________________________________________________ __________________________________________________________________________________________________ Print AP-007 5. the view with one dimension, 8X R.015, what two types of lines are featured besides the leader line? _In __________________________________________________________________________________________________ Print AP-008 6. What type of line is used to indicate the cylindrical surfaces that are to be heat treated? _ __________________________________________________________________________________________________ 7. The involute splines are not shown in full detail. What type of line is used to indicate the involute splines that are specified on each end of this shaft? _ __________________________________________________________________________________________________ Print AP-009 8. four types of lines that are featured in this assembly drawing. _List ___________________________________________________________________________________________________ __________________________________________________________________________________________________
