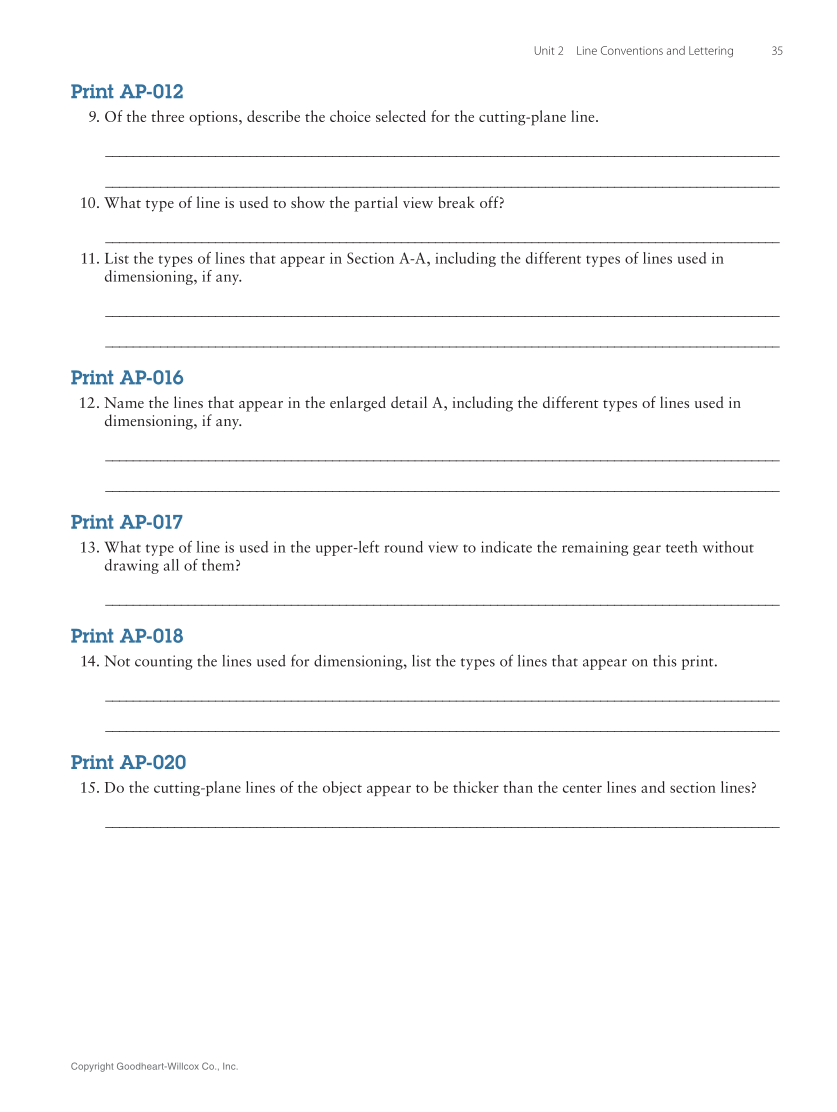

Copyright Goodheart-Willcox Co., Inc. Unit 2 Line Conventions and Lettering 35 Print AP-012 9. the three options, describe the choice selected for the cutting-plane line. _Of ___________________________________________________________________________________________________ __________________________________________________________________________________________________ 10. type of line is used to show the partial view break off? _What __________________________________________________________________________________________________ 11. List the types of lines that appear in Section A-A, including the different types of lines used in dimensioning, if any. _ ___________________________________________________________________________________________________ __________________________________________________________________________________________________ Print AP-016 12. Name the lines that appear in the enlarged detail A, including the different types of lines used in dimensioning, if any. _ ___________________________________________________________________________________________________ __________________________________________________________________________________________________ Print AP-017 13. What type of line is used in the upper-left round view to indicate the remaining gear teeth without drawing all of them? _ __________________________________________________________________________________________________ Print AP-018 14. counting the lines used for dimensioning, list the types of lines that appear on this print. _Not ___________________________________________________________________________________________________ __________________________________________________________________________________________________ Print AP-020 15. the cutting-plane lines of the object appear to be thicker than the center lines and section lines? _Do __________________________________________________________________________________________________
