Chapter 5 Basic Duct Symbols and Drawings 111
Copyright Goodheart-Willcox Co., Inc.
Sound attenuator
SA
Canvas connector
AD
Heating coil Cooling coil Air filter
AD
Access door Electric duct heater
Goodheart-Willcox Publisher

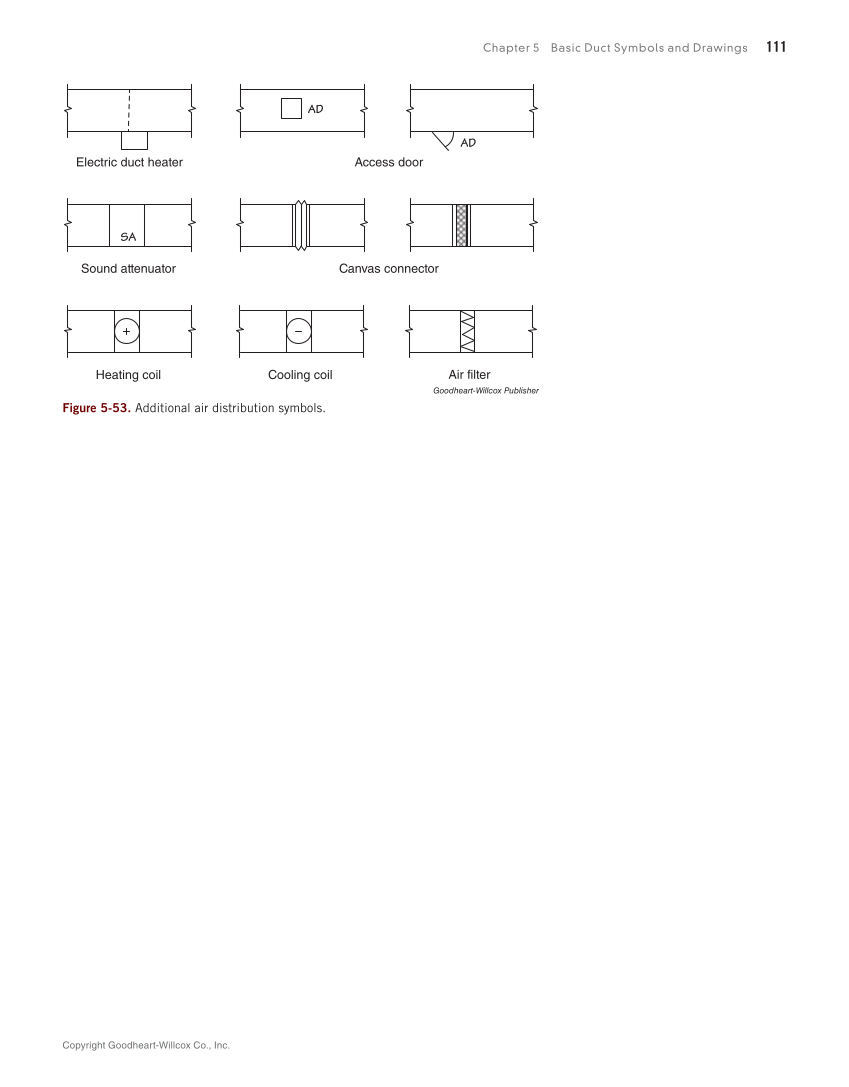

Figure 5-53. Additional air distribution symbols.
