Chapter 10 Interfacing and Vision Systems 251
A
B

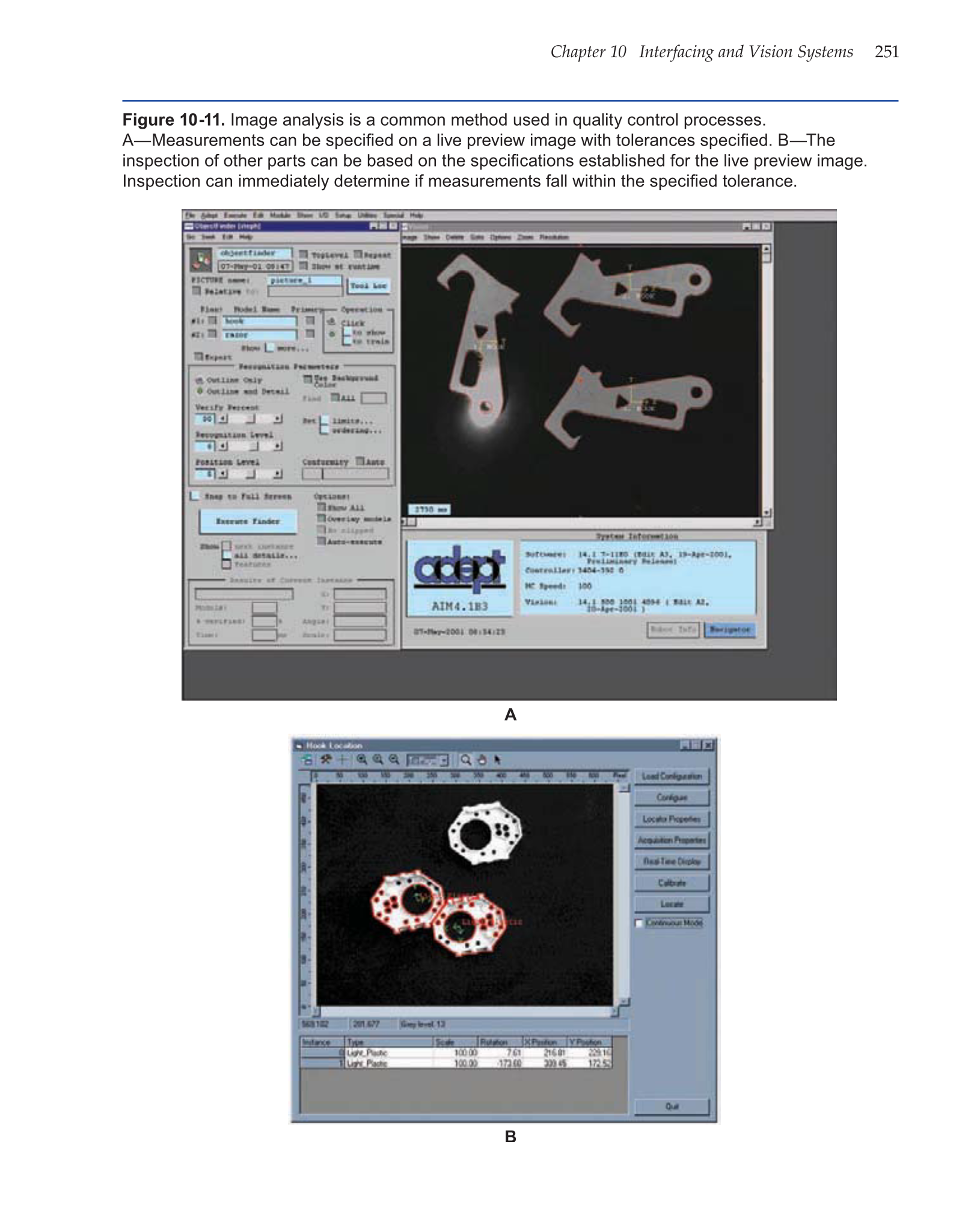

Figure 10-11. Image analysis is a common method used in quality control processes.
A—Measurements can be specifi ed on a live preview image with tolerances specifi ed. B—The
inspection of other parts can be based on the specifi cations established for the live preview image.
Inspection can immediately determine if measurements fall within the specifi ed tolerance.
