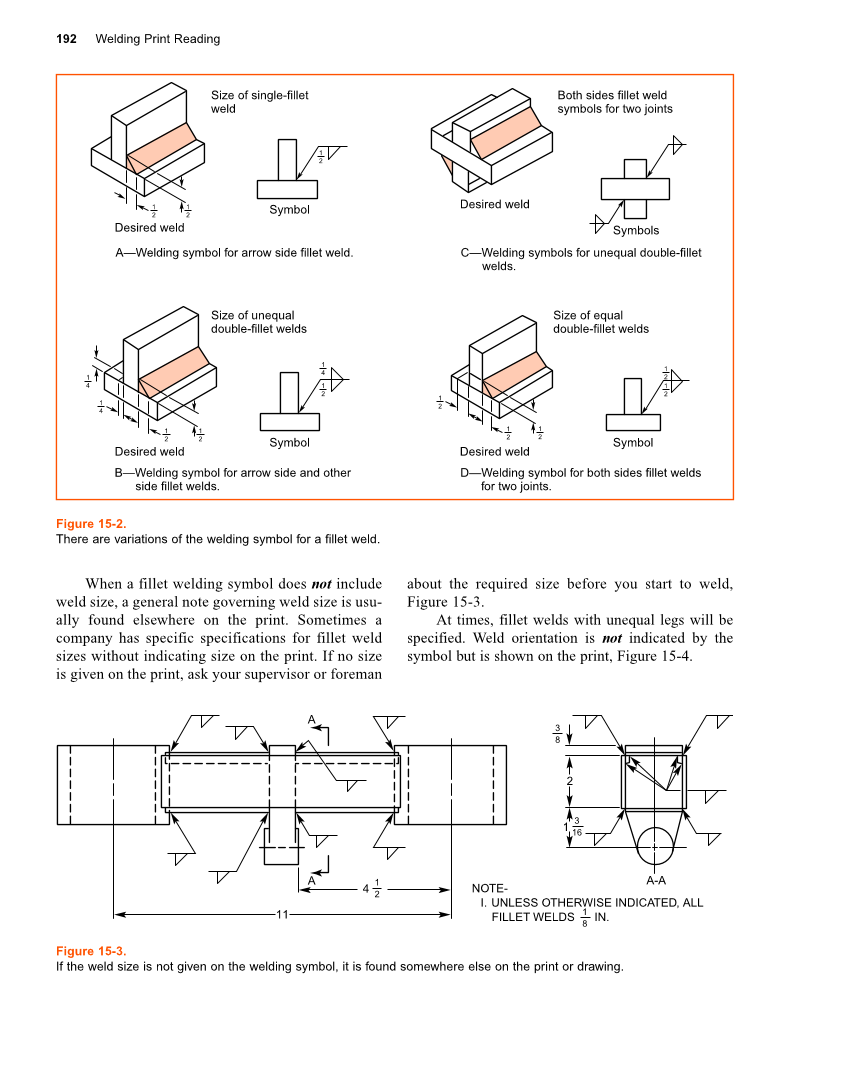

192 Welding Print Reading When a fillet welding symbol does not include weld size, a general note governing weld size is usu- ally found elsewhere on the print. Sometimes a company has specific specifications for fillet weld sizes without indicating size on the print. If no size is given on the print, ask your supervisor or foreman about the required size before you start to weld, Figure 15-3. At times, fillet welds with unequal legs will be specified. Weld orientation is not indicated by the symbol but is shown on the print, Figure 15-4. Figure 15-2. There are variations of the welding symbol for a fillet weld. Figure 15-3. If the weld size is not given on the welding symbol, it is found somewhere else on the print or drawing. Size of single-fillet weld Symbol Desired weld A—Welding symbol for arrow side fillet weld. Both sides fillet weld symbols for two joints Symbols Desired weld C—Welding symbols for unequal double-fillet welds. Size of equal double-fillet welds Symbol Desired weld D—Welding symbol for both sides fillet welds for two joints. 1 2 1 2 1 2 1 2 1 2 Size of unequal double-fillet welds Symbol Desired weld B—Welding symbol for arrow side and other side fillet welds. 1 4 1 2 1 2 1 2 1 4 1 4 1 2 1 2 1 2 11 A A 1 2 4 2 3 16 1 3 8 A-A NOTE- I. UNLESS OTHERWISE INDICATED, ALL FILLET WELDS IN. 1 8
