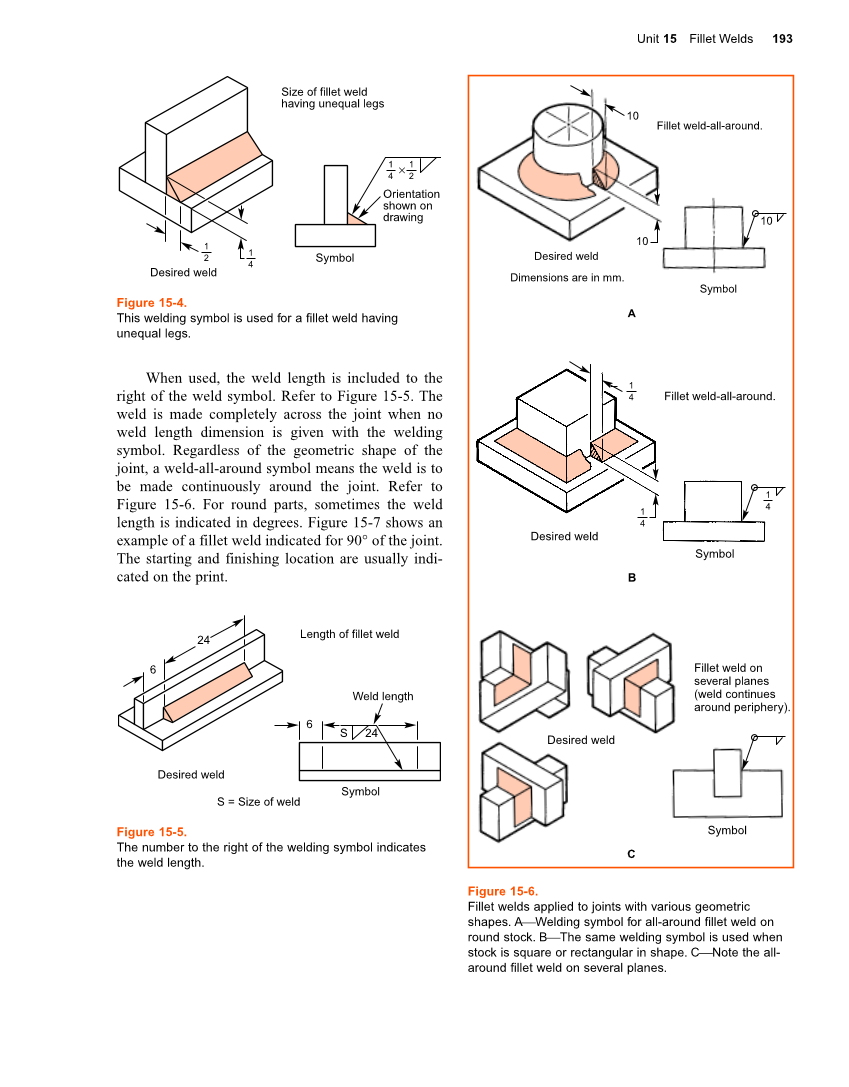

Unit 15 Fillet Welds 193 When used, the weld length is included to the right of the weld symbol. Refer to Figure 15-5. The weld is made completely across the joint when no weld length dimension is given with the welding symbol. Regardless of the geometric shape of the joint, a weld-all-around symbol means the weld is to be made continuously around the joint. Refer to Figure 15-6. For round parts, sometimes the weld length is indicated in degrees. Figure 15-7 shows an example of a fillet weld indicated for 90° of the joint. The starting and finishing location are usually indi- cated on the print. Figure 15-4. This welding symbol is used for a fillet weld having unequal legs. Figure 15-6. Fillet welds applied to joints with various geometric shapes. A⎯Welding symbol for all-around fillet weld on round stock. B⎯The same welding symbol is used when stock is square or rectangular in shape. C⎯Note the all- around fillet weld on several planes. 10 10 10 Fillet weld-all-around. Dimensions are in mm. Desired weld Symbol A Desired weld Fillet weld on several planes (weld continues around periphery). Symbol C Fillet weld-all-around. Desired weld Symbol B 1 4 1 4 1 4 Figure 15-5. The number to the right of the welding symbol indicates the weld length. 24 6 6 S 24 Length of fillet weld Weld length Symbol Desired weld S = Size of weld 1 2 1 4 1 4 1 2 × Orientation shown on drawing Symbol Desired weld Size of fillet weld having unequal legs
