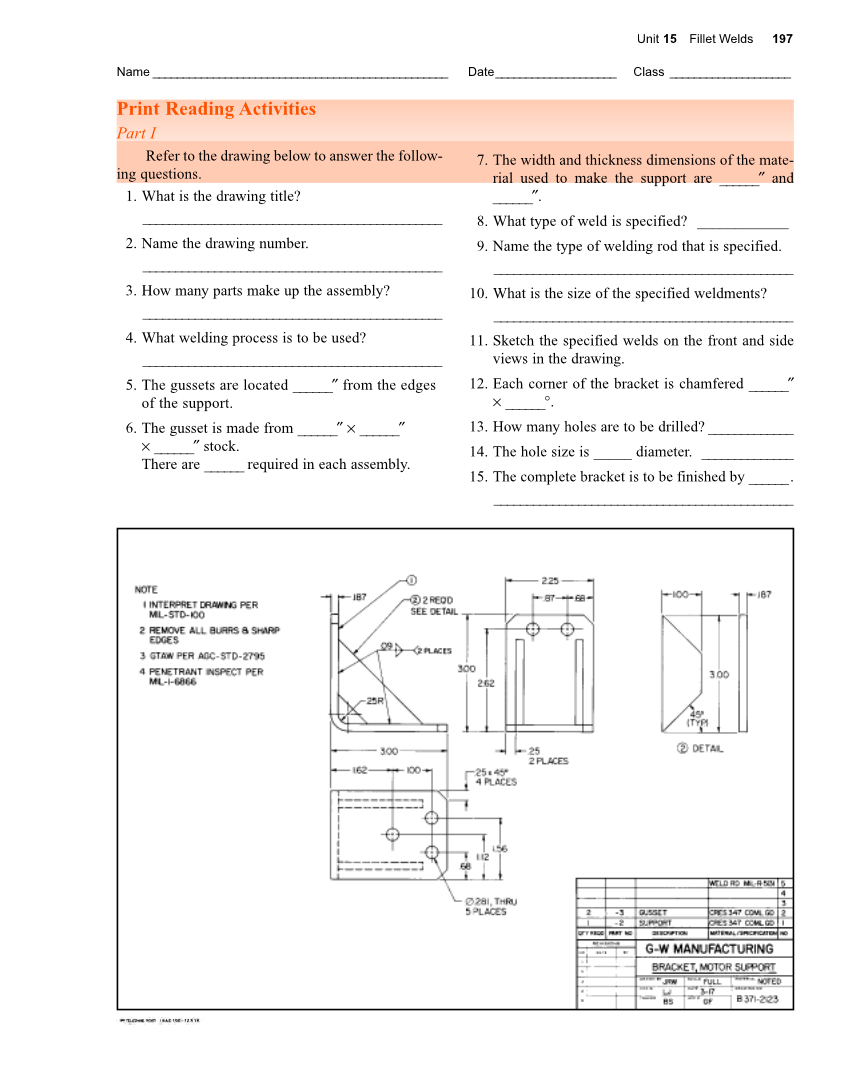

Unit 15 Fillet Welds 197 Name _________________________________________________ Date ____________________ Class ____________________ Print Reading Activities Part I Refer to the drawing below to answer the follow- ing questions. 1. What is the drawing title? ______________________________________________ 2. Name the drawing number. ______________________________________________ 3. How many parts make up the assembly? ______________________________________________ 4. What welding process is to be used? ______________________________________________ 5. The gussets are located ______″ from the edges of the support. 6. The gusset is made from ______″ × ______″ × ______″ stock. There are ______ required in each assembly. 7. The width and thickness dimensions of the mate- rial used to make the support are ______″ and ______″. 8. What type of weld is specified? ____________ 9. Name the type of welding rod that is specified. ______________________________________________ 10. What is the size of the specified weldments? ______________________________________________ 11. Sketch the specified welds on the front and side views in the drawing. 12. Each corner of the bracket is chamfered ______″ × ______°. 13. How many holes are to be drilled? _____________ 14. The hole size is _____ diameter. ______________ 15. The complete bracket is to be finished by ______. ______________________________________________
