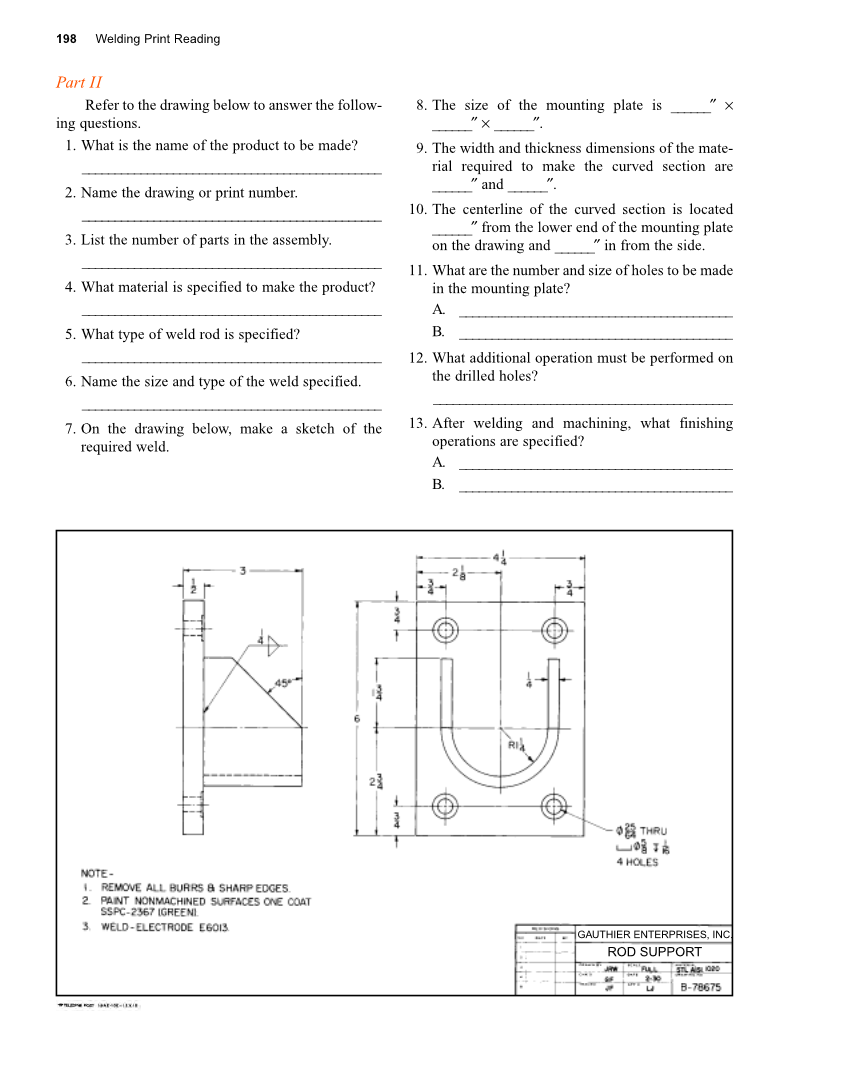

198 Welding Print Reading Part II Refer to the drawing below to answer the follow- ing questions. 1. What is the name of the product to be made? ______________________________________________ 2. Name the drawing or print number. ______________________________________________ 3. List the number of parts in the assembly. ______________________________________________ 4. What material is specified to make the product? ______________________________________________ 5. What type of weld rod is specified? ______________________________________________ 6. Name the size and type of the weld specified. ______________________________________________ 7. On the drawing below, make a sketch of the required weld. 8. The size of the mounting plate is ______″ × ______″ × ______″. 9. The width and thickness dimensions of the mate- rial required to make the curved section are ______″ and ______″. 10. The centerline of the curved section is located ______″ from the lower end of the mounting plate on the drawing and ______″ in from the side. 11. What are the number and size of holes to be made in the mounting plate? A. __________________________________________ B. __________________________________________ 12. What additional operation must be performed on the drilled holes? ______________________________________________ 13. After welding and machining, what finishing operations are specified? A. __________________________________________ B. __________________________________________ GAUTHIER ENTERPRISES, INC. ROD SUPPORT
