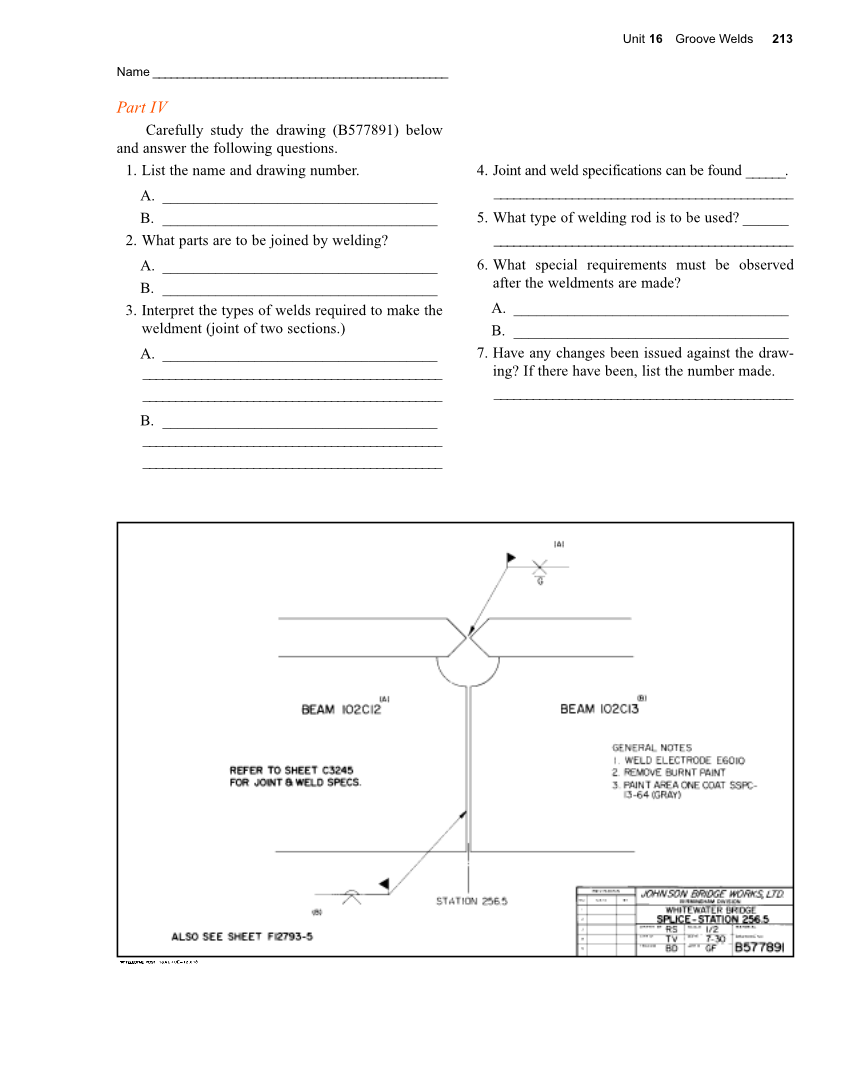

Unit 16 Groove Welds 213 Name _________________________________________________ Part IV Carefully study the drawing (B577891) below and answer the following questions. 1. List the name and drawing number. A. ____________________________________ B. ____________________________________ 2. What parts are to be joined by welding? A. ____________________________________ B. ____________________________________ 3. Interpret the types of welds required to make the weldment (joint of two sections.) A. ____________________________________ ______________________________________________ ______________________________________________ B. ____________________________________ ______________________________________________ ______________________________________________ 4. Joint and weld specifications can be found ______. ______________________________________________ 5. What type of welding rod is to be used? ______ ______________________________________________ 6. What special requirements must be observed after the weldments are made? A. ____________________________________ B. ____________________________________ 7. Have any changes been issued against the draw- ing? If there have been, list the number made. ______________________________________________
