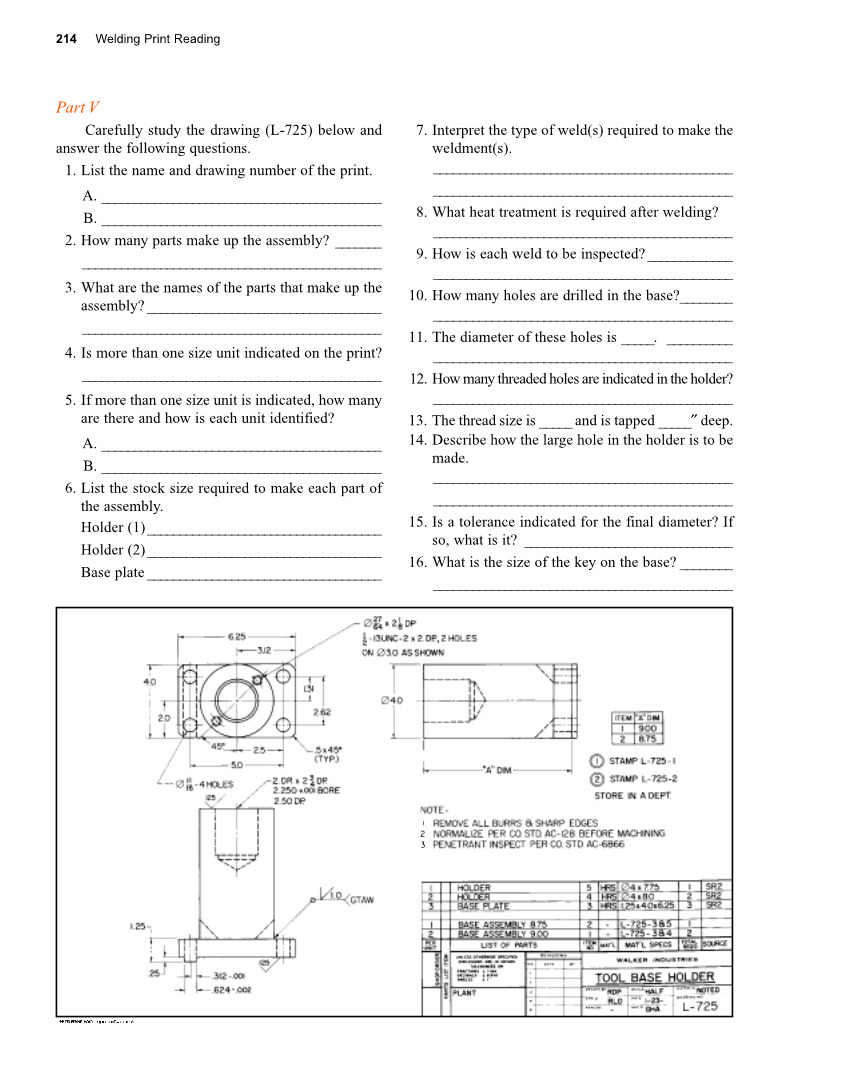

214 Welding Print Reading Part V Carefully study the drawing (L-725) below and answer the following questions. 1. List the name and drawing number of the print. A. ___________________________________________ B. ___________________________________________ 2. How many parts make up the assembly? _______ ______________________________________________ 3. What are the names of the parts that make up the assembly? ____________________________________ ______________________________________________ 4. Is more than one size unit indicated on the print? ______________________________________________ 5. If more than one size unit is indicated, how many are there and how is each unit identified? A. ___________________________________________ B. ___________________________________________ 6. List the stock size required to make each part of the assembly. Holder (1) ____________________________________ Holder (2) ____________________________________ Base plate ____________________________________ 7. Interpret the type of weld(s) required to make the weldment(s). ______________________________________________ ______________________________________________ 8. What heat treatment is required after welding? ______________________________________________ 9. How is each weld to be inspected? _____________ ______________________________________________ 10. How many holes are drilled in the base?________ ______________________________________________ 11. The diameter of these holes is _____. __________ ______________________________________________ 12. How many threaded holes are indicated in the holder? ______________________________________________ 13. The thread size is _____ and is tapped _____″ deep. 14. Describe how the large hole in the holder is to be made. ______________________________________________ ______________________________________________ 15. Is a tolerance indicated for the final diameter? If so, what is it? ________________________________ 16. What is the size of the key on the base? ________ ______________________________________________
