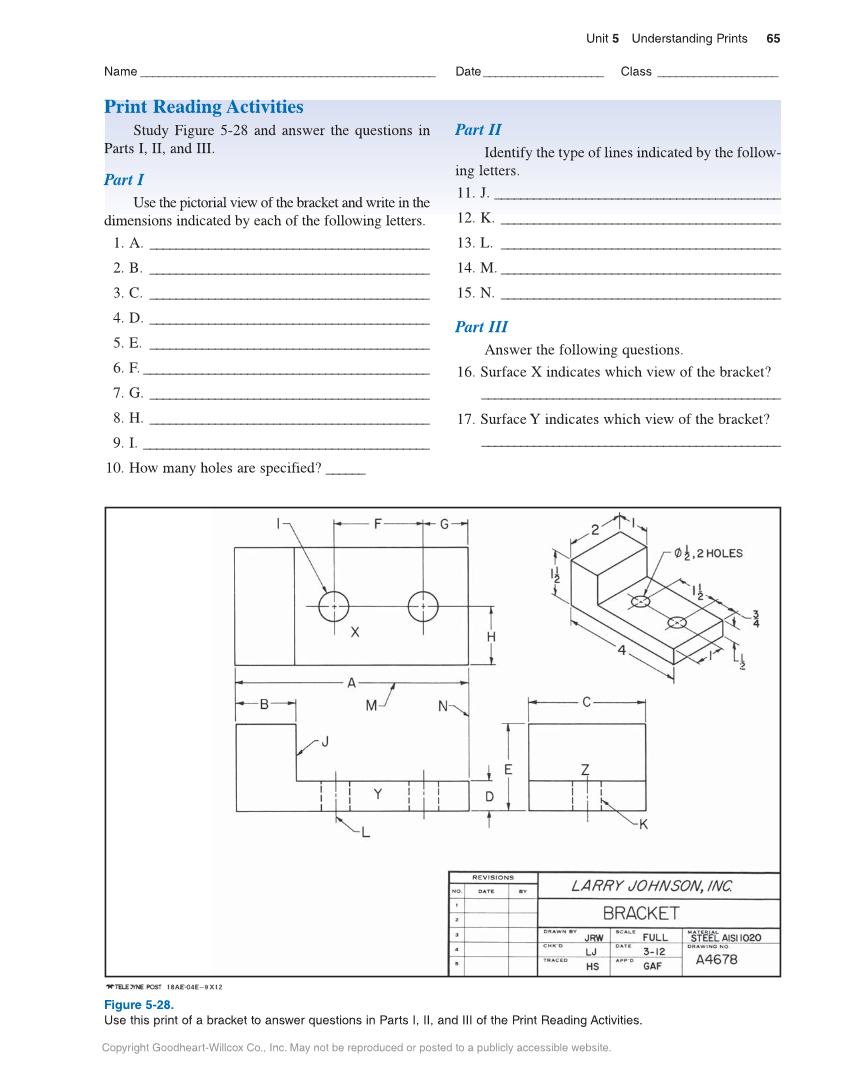

Unit 5 Understanding Prints 65 Name _________________________________________________ Date ____________________ Class ____________________ Copyright Goodheart-Willcox Co., Inc. May not be reproduced or posted to a publicly accessible website. Print Reading Activities Study Figure 5-28 and answer the questions in Parts I, II, and III. Part I Use the pictorial view of the bracket and write in the dimensions indicated by each of the following letters. 1. A. ___________________________________________ 2. B. ___________________________________________ 3. C. ___________________________________________ 4. D. ___________________________________________ 5. E. ___________________________________________ 6. F. ____________________________________________ 7. G. ___________________________________________ 8. H. ___________________________________________ 9. I. ____________________________________________ 10. How many holes are specified? ______ Part II Identify the type of lines indicated by the follow- ing letters. 11. J. ____________________________________________ 12. K. ___________________________________________ 13. L. ___________________________________________ 14. M. ___________________________________________ 15. N. ___________________________________________ Part III Answer the following questions. 16. Surface X indicates which view of the bracket? ______________________________________________ 17. Surface Y indicates which view of the bracket? ______________________________________________ Figure 5-28. Use this print of a bracket to answer questions in Parts I, II, and III of the Print Reading Activities.
