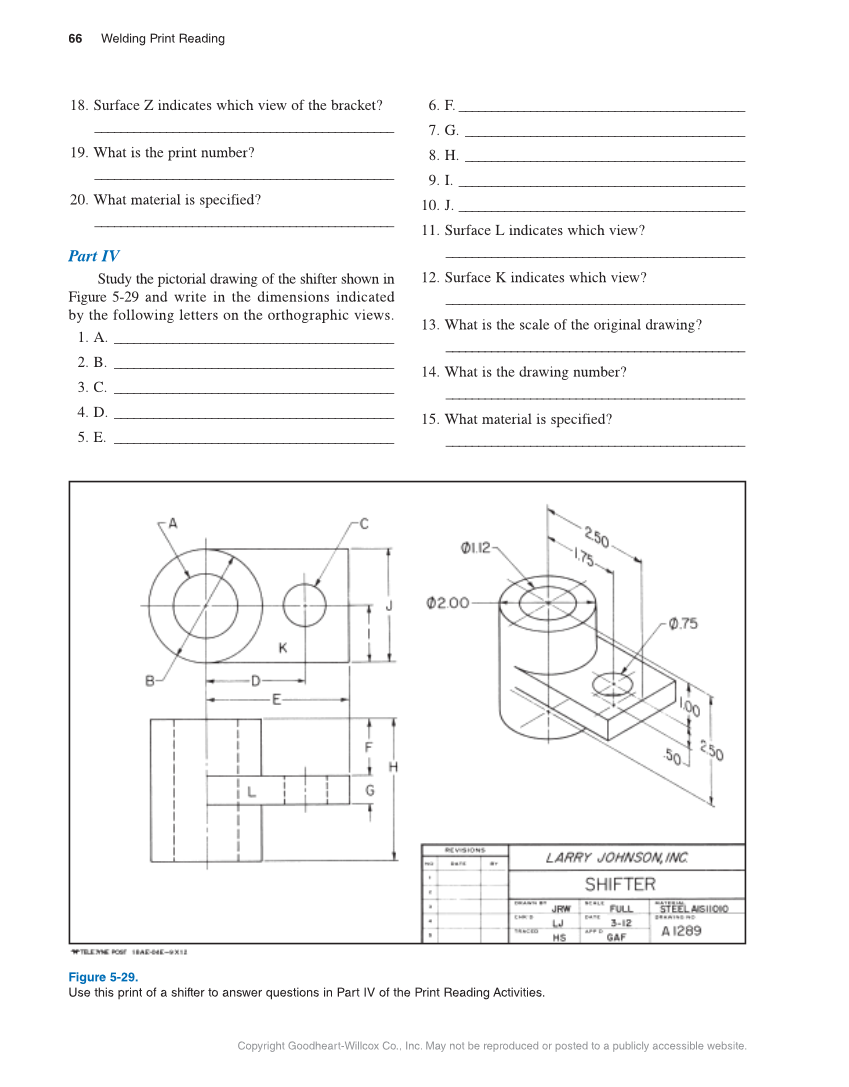

66 Welding Print Reading Copyright Goodheart-Willcox Co., Inc. May not be reproduced or posted to a publicly accessible website. 18. Surface Z indicates which view of the bracket? ______________________________________________ 19. What is the print number? ______________________________________________ 20. What material is specified? ______________________________________________ Part IV Study the pictorial drawing of the shifter shown in Figure 5-29 and write in the dimensions indicated by the following letters on the orthographic views. 1. A. ___________________________________________ 2. B. ___________________________________________ 3. C. ___________________________________________ 4. D. ___________________________________________ 5. E. ___________________________________________ 6. F. ____________________________________________ 7. G. ___________________________________________ 8. H. ___________________________________________ 9. I. ____________________________________________ 10. J. ____________________________________________ 11. Surface L indicates which view? ______________________________________________ 12. Surface K indicates which view? ______________________________________________ 13. What is the scale of the original drawing? ______________________________________________ 14. What is the drawing number? ______________________________________________ 15. What material is specified? ______________________________________________ Figure 5-29. Use this print of a shifter to answer questions in Part IV of the Print Reading Activities.
