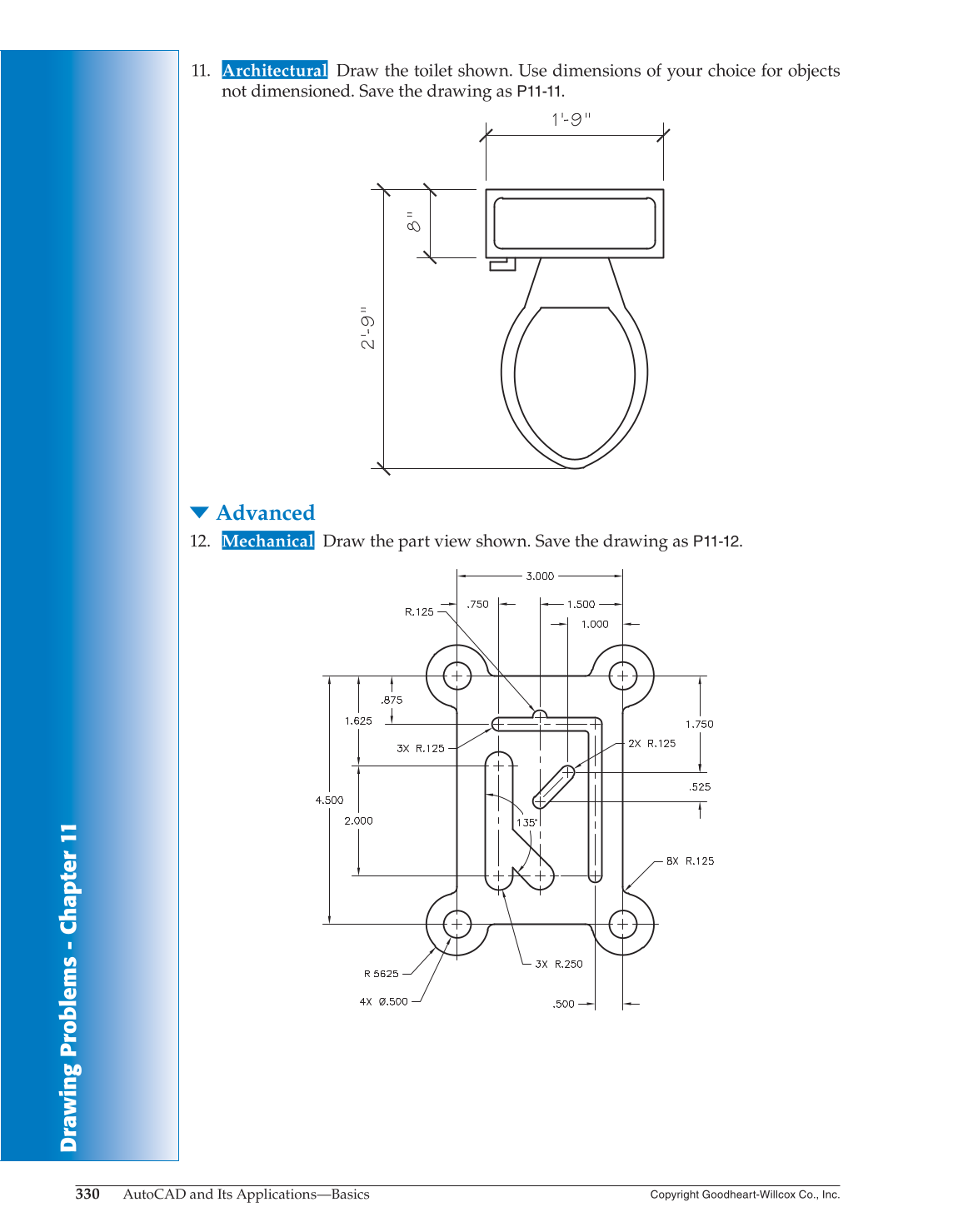

11. Architectural Draw the toilet shown. Use dimensions of your choice for objects
not dimensioned. Save the drawing as P11-11.
2
'-9"
1 '-9"
8
"
▼
Advanced
12. Mechanical Draw the part view shown. Save the drawing as P11-12.
